Component Description

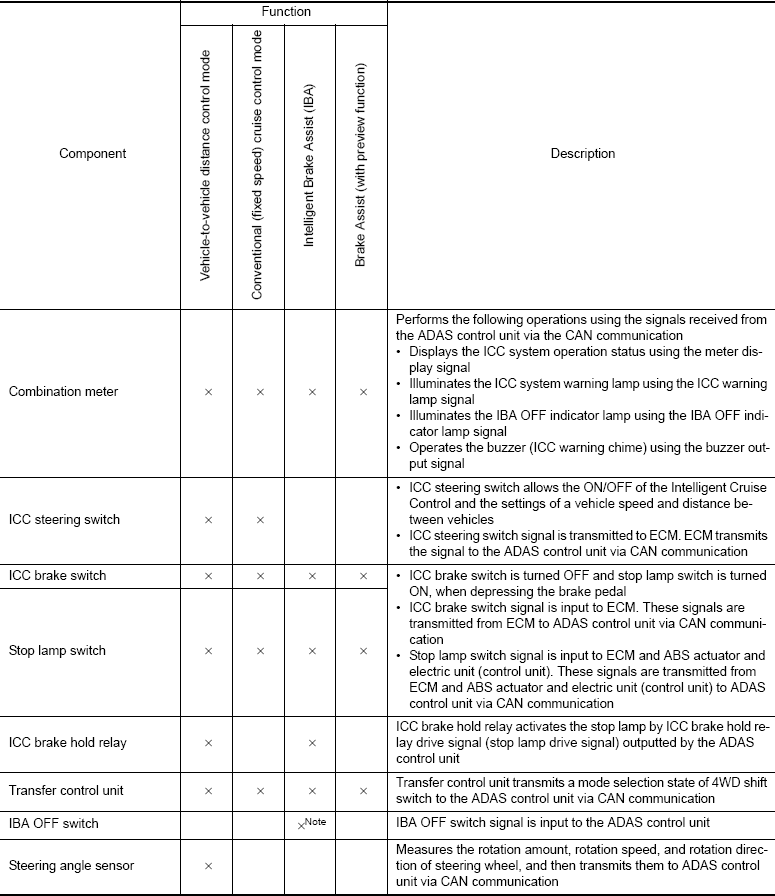

Fig 1: Identifying Brake Assist Component Description (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

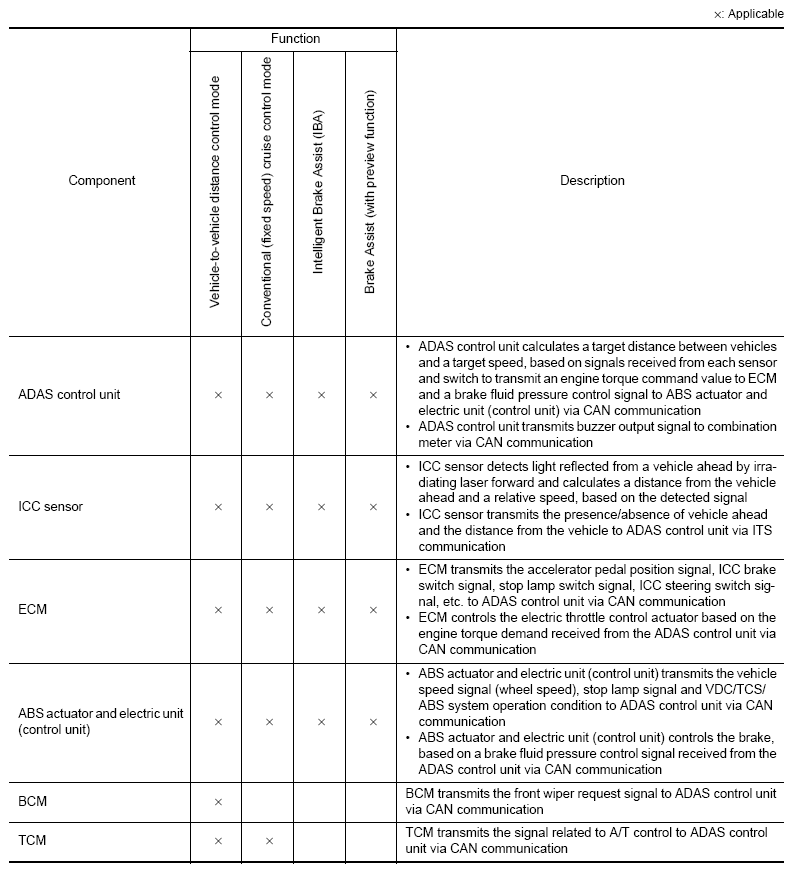

Fig 2: Identifying Brake Assist Component Description (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
Only IBA system uses
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
