Climate Controlled Seat

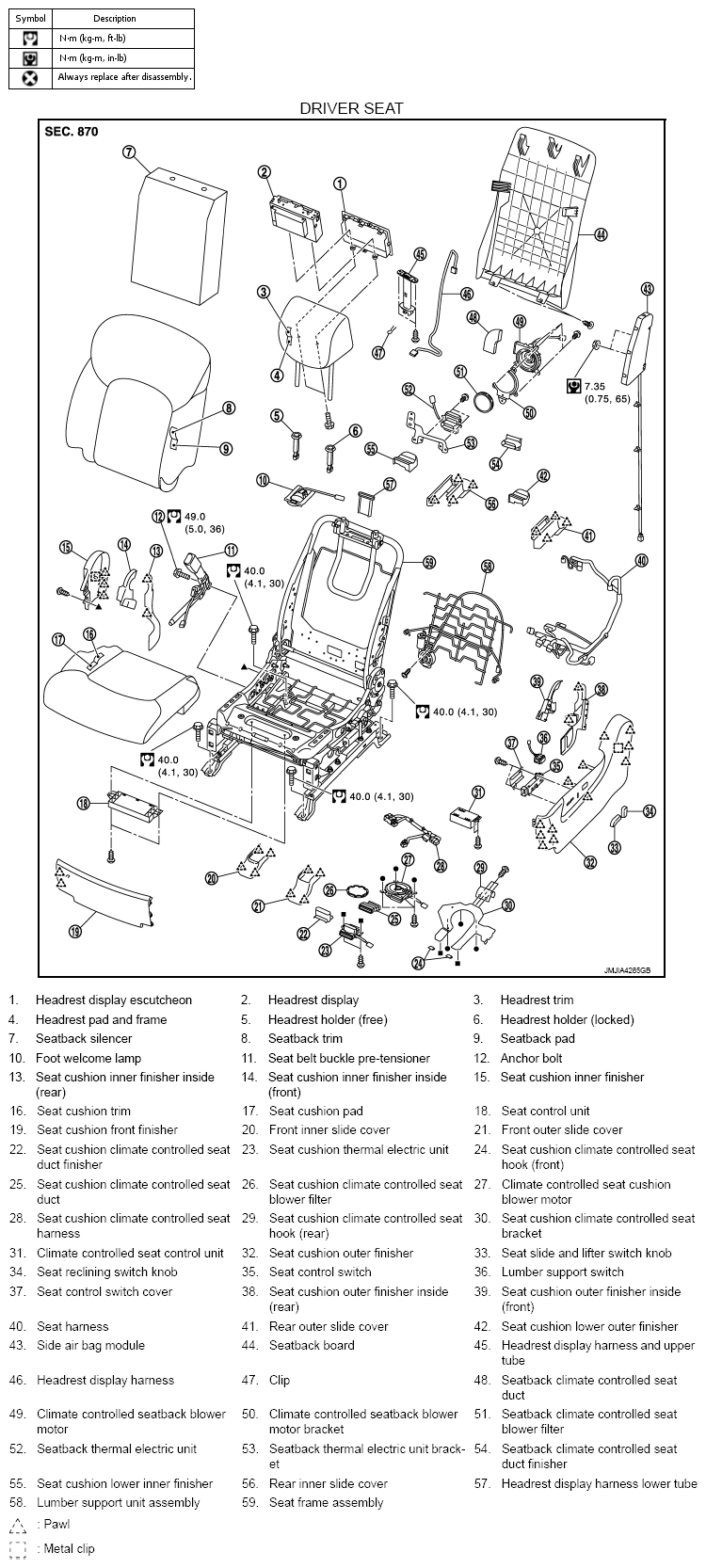

Fig 1: Exploded View Of Driver Seat With Torque Specifications
G07024401Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.

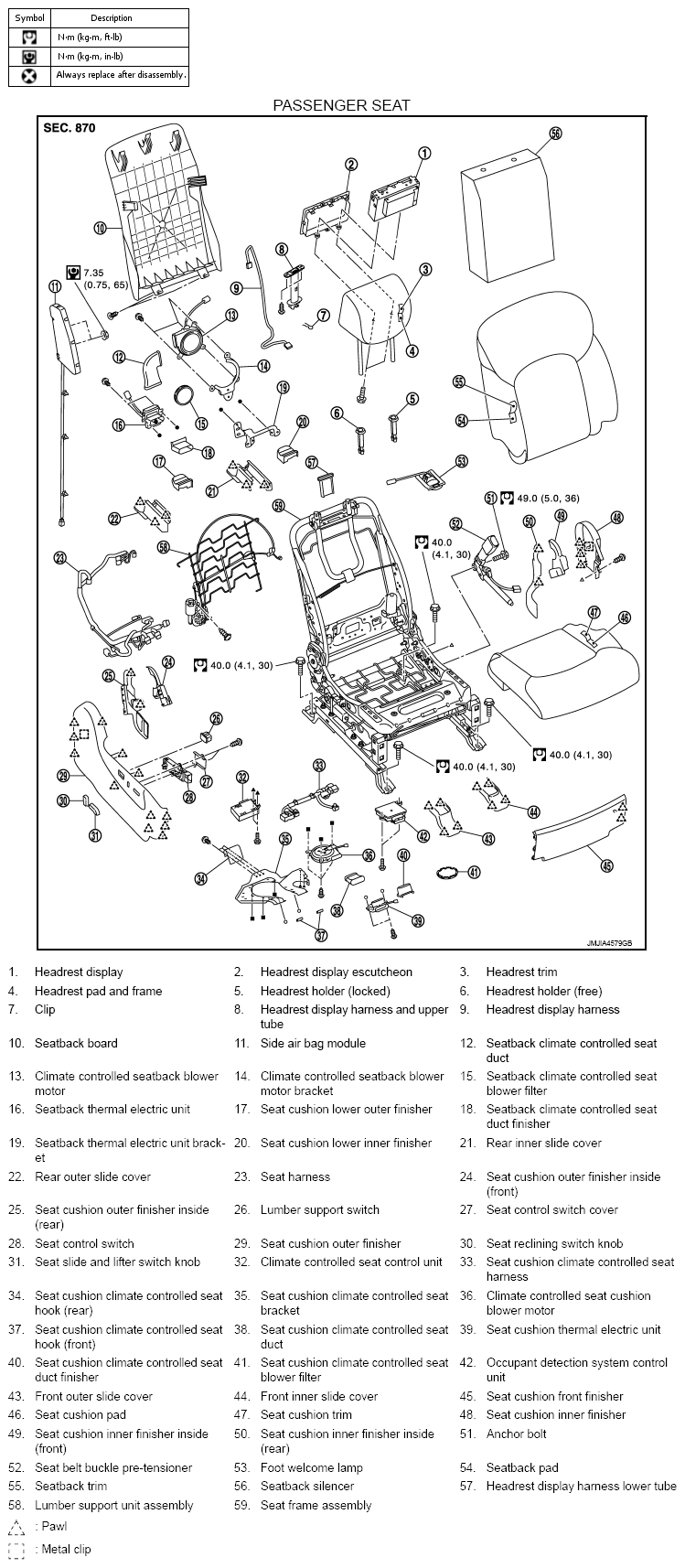

Fig 2: Exploded View Of Passenger Seat With Torque Specifications
G07024402Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
