System Description
>>
System
>>
Memory Function
>>
MEMORY FUNCTION : System Diagram
MEMORY FUNCTION : System Diagram

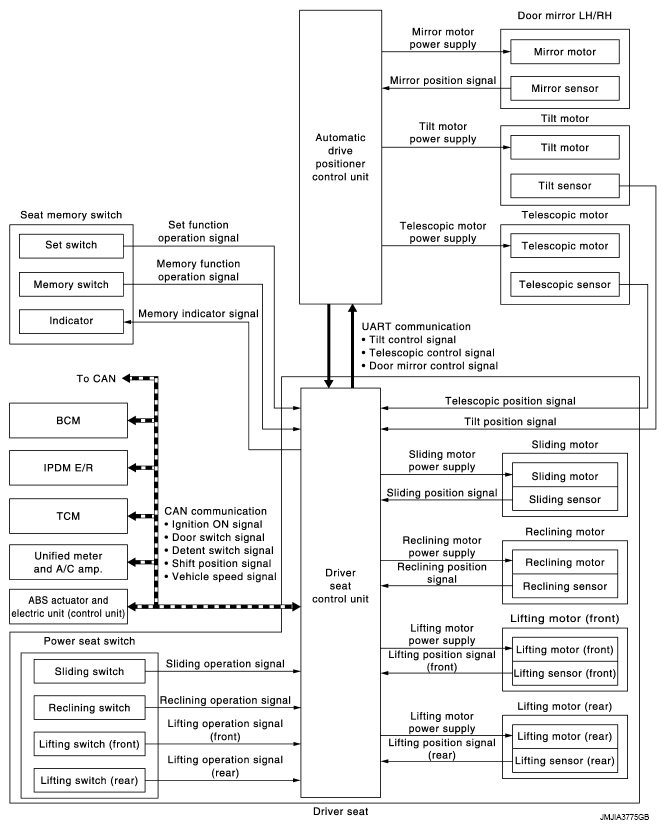

Fig 1: Automatic Drive Positioner System (Memory Function) - System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
