Removal and Installation: Removal

CAUTION: When removing and installing, use shop cloths to protect parts from damage.
  1. Remove driver seat (1). Refer to "REMOVAL AND INSTALLATION ".
  2. Remove screws (A).
  3. Remove driver seat control unit (2).

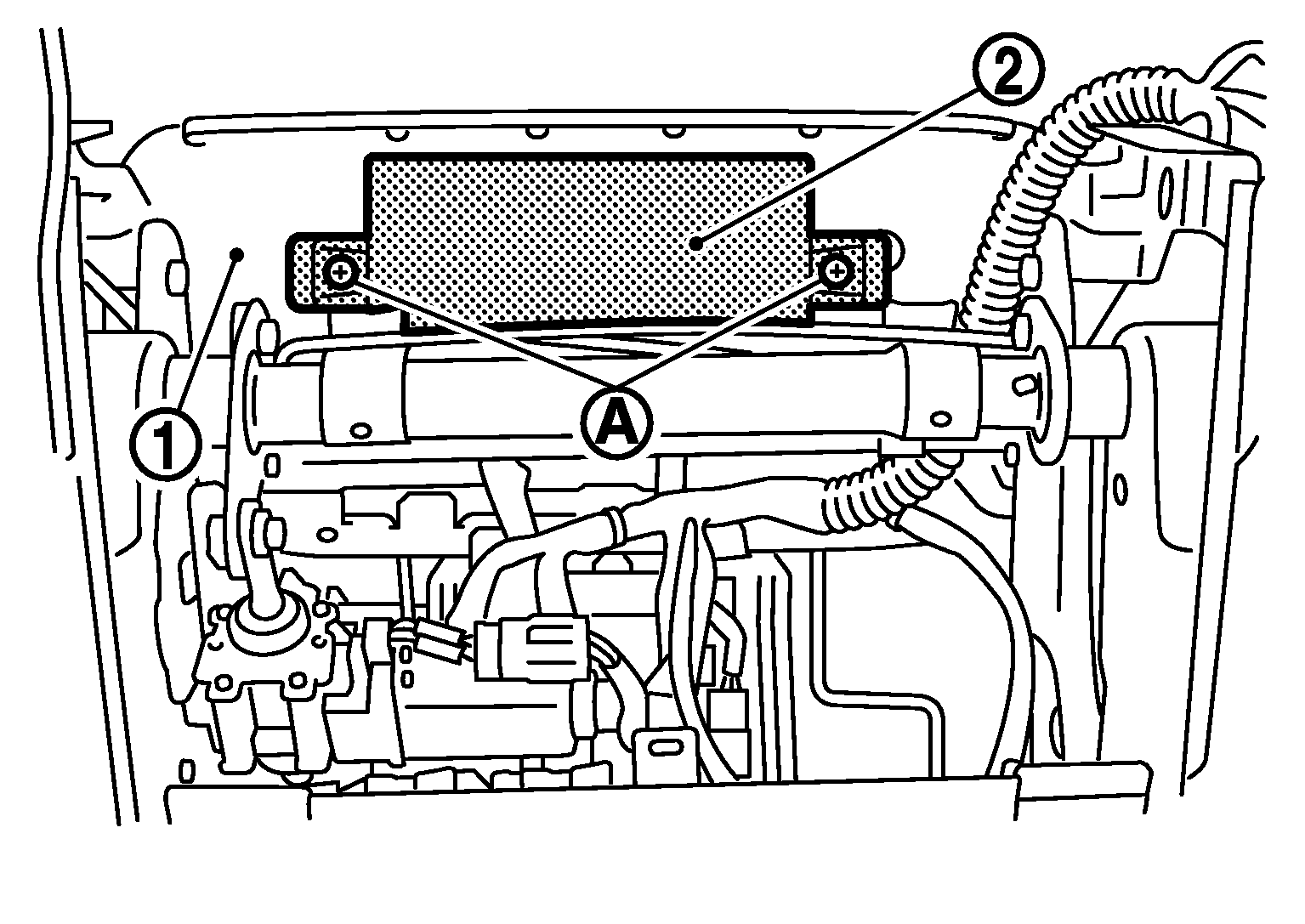

    Fig 1: Identifying Driver Seat Control Unit
    G07022301Courtesy of NISSAN MOTOR CO., U.S.A.
