Removal and Installation: Removal

CAUTION: When removing and installing, use shop cloths to protect parts from damage.
  1. Remove instrument lower panel LH. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove screws (A).
  3. Remove automatic drive positioner control unit (1).

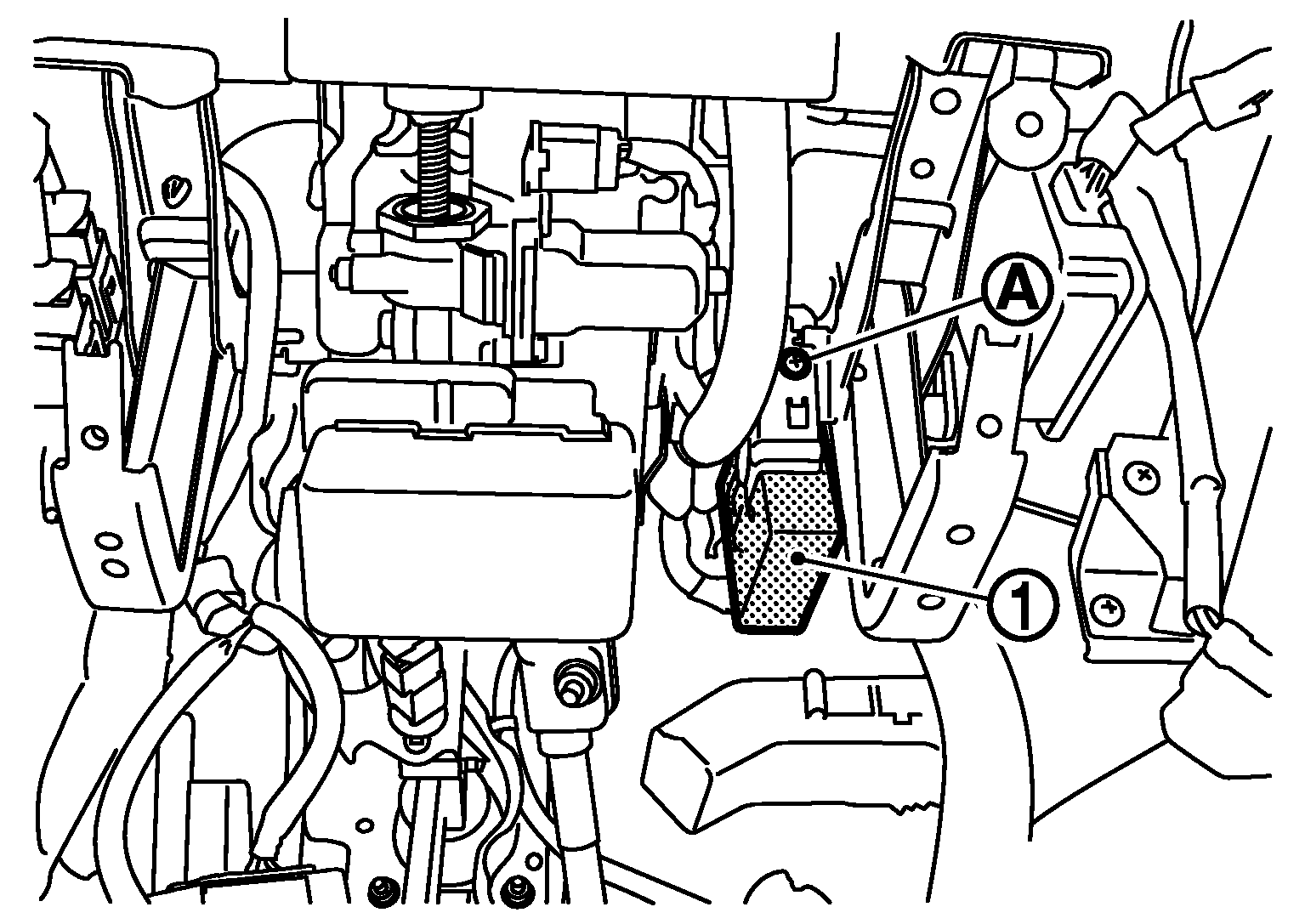

    Fig 1: Identifying Automatic Drive Positioner Control Unit
    G05887589Courtesy of NISSAN MOTOR CO., U.S.A.
