Removal and Installation: Installation: Notes

WARNING: This page is about a different car, the 2013 Infiniti M56. However, it is still accessible from the selected car via links, so may be relevant.

Note the following item, and install in the reverse order of removal.

Intake Manifold

Tighten in numerical order as shown in the figure below.

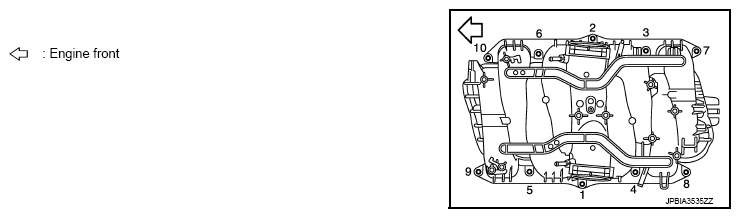

Fig 1: Intake Manifold Mounting Bolt Tightening Sequence
G08884017Courtesy of NISSAN NORTH AMERICA, INC.
