Home >> Infiniti >> 2011 >> M56 x >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Connector End Views >> Connector End Views >> Steering Lock Unit Connector End View (M40)

Steering Lock Unit Connector End View (M40)

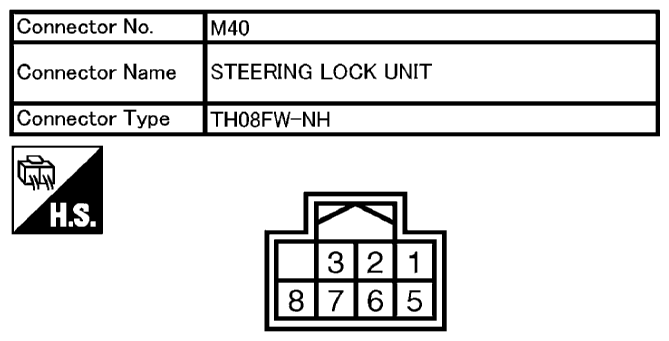

Fig 1: Steering Lock Unit Connector End View (M40)

G10681059

Courtesy of NISSAN NORTH AMERICA, INC.
