Instrument Panel System -- M37/M56
>>
Removal And Installation
>>
Instrument Panel Assembly
>>
Exploded View
Exploded View

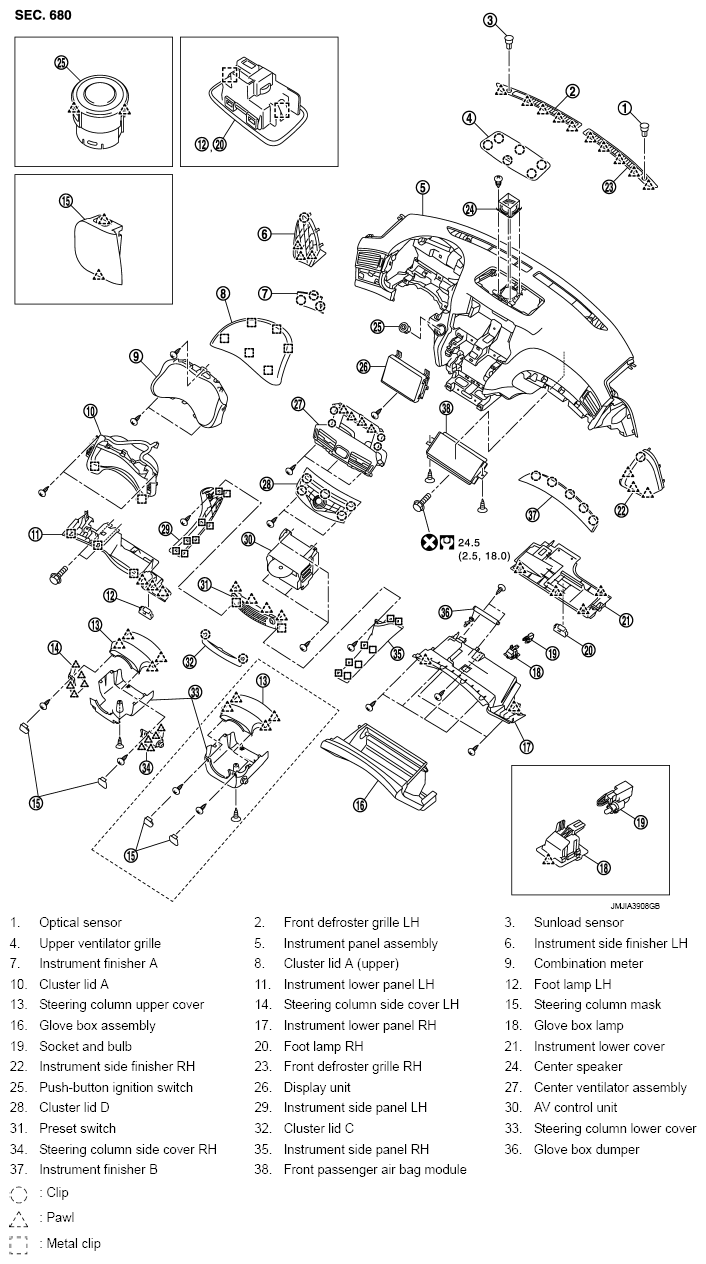

Fig 1: Exploded View Of Instrument Panel Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols in the figure.
