Removal and Installation: Installation

WARNING: This page is about a different car, the 2013 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Installation is the reverse order of removal.

Install shift selector handle according to the following.

Apply cement to threads of shift selector assembly.

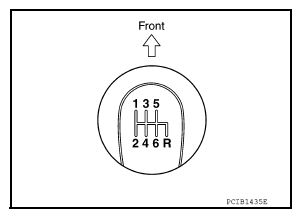

Tighten shift selector handle until increased tension is felt. Then align shift selector handle to the position as shown below within one turn.
CAUTION: Do not adjust shift selector handle by loosening it.

Fig 1: Identifying Shift Selector Handle
Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:

Apply multipurpose grease to socket and bushing.
Insert bushing of shift selector assembly as far as it will go into the hole of striking arm.

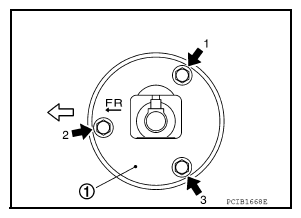

Tighten guide plate (1) bolts to the specified torque in order as shown below.
<==: Front

Fig 2: Locating Guide Plate Bolts Of Shift Selector Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Do not reuse clip.

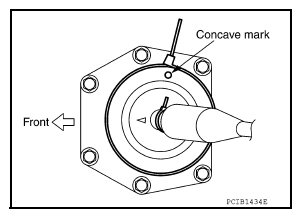

Position clip as shown below.
Be careful with the orientation of shift selector boot and insulator.

Fig 3: Shift Selector Boot And Insulator Orientation

Courtesy of NISSAN NORTH AMERICA, INC.
