Switches And Their Control Functions

NOTE: For LH/RH independent temperature and air outlet adjustment function, construction indicated by broken line as shown in the figure is divided to driver side and passenger side by divider plate.

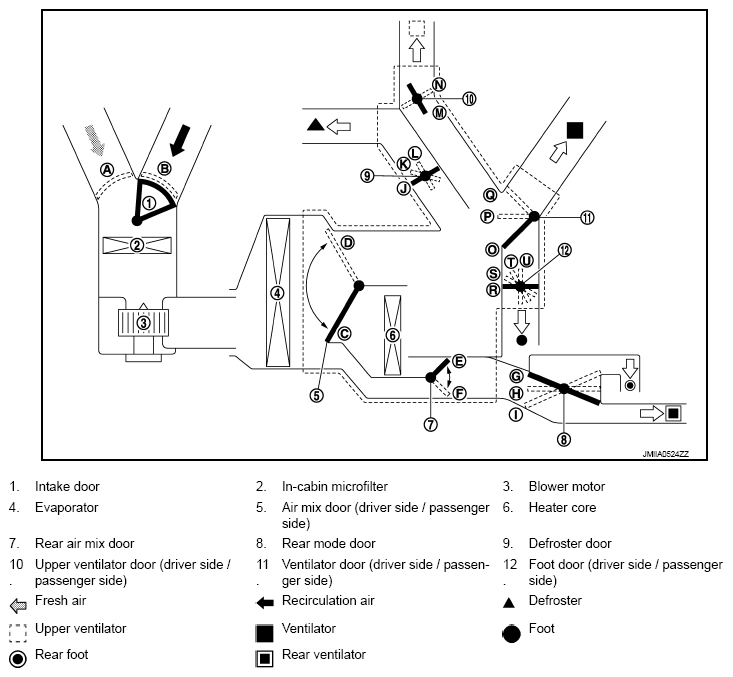

Fig 1: Automatic Air Conditioning System Switches And Control Function Diagram (With Forest Air)
G07020614Courtesy of NISSAN MOTOR CO., U.S.A.

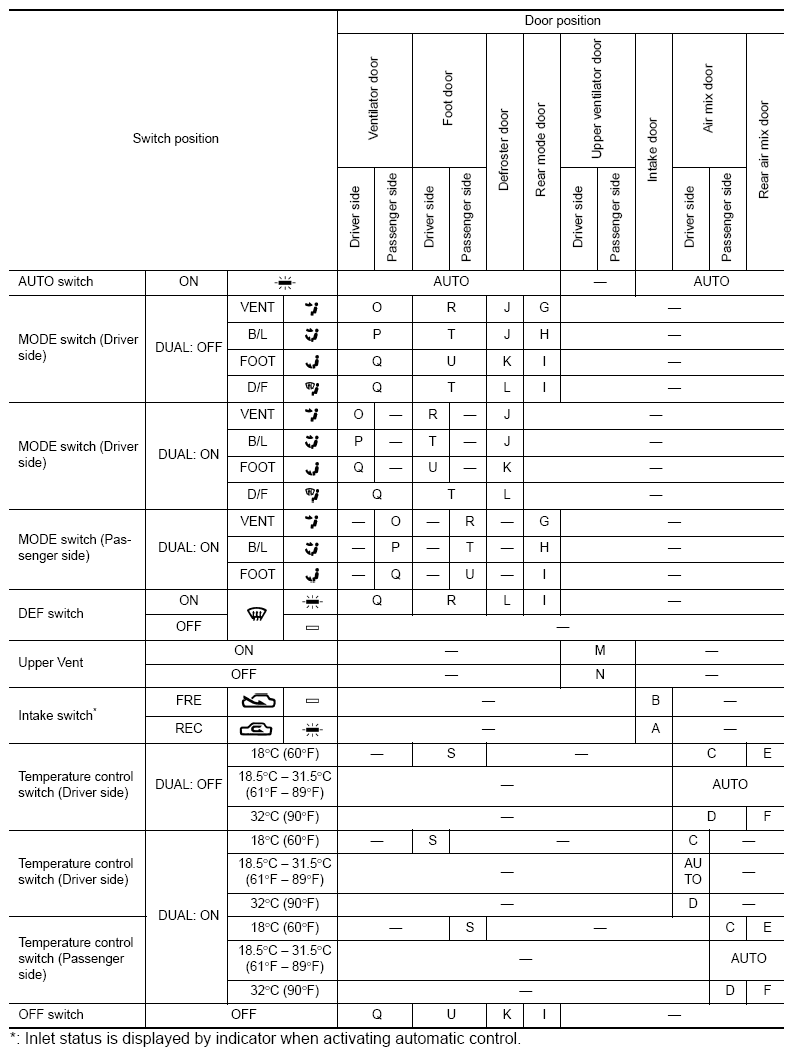

Fig 2: Switch And Door Positioning Chart (With Forest Air)
G07020615Courtesy of NISSAN MOTOR CO., U.S.A.
