Inspection After Disassembly

WARNING: This page is about a different car, the 2011 Infiniti M56. However, it is still accessible from the selected car via links, so may be relevant.

Timing Chain

Check for cracks and any excessive wear at link plates and roller links of timing chain. Replace timing chain if necessary.

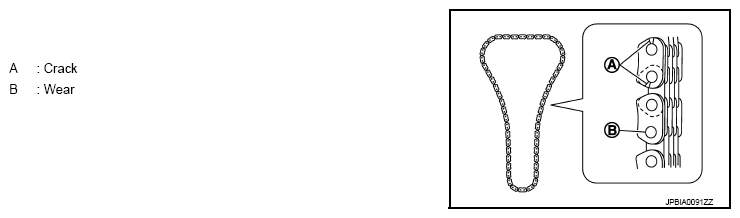

Fig 1: Identifying Cracks And Wear Of Link Plates And Roller Links Of Timing Chain
G07017882Courtesy of NISSAN MOTOR CO., U.S.A.
