Exploded View

WARNING: This page is about a different car, the 2011 Infiniti M56. However, it is still accessible from the selected car via links, so may be relevant.

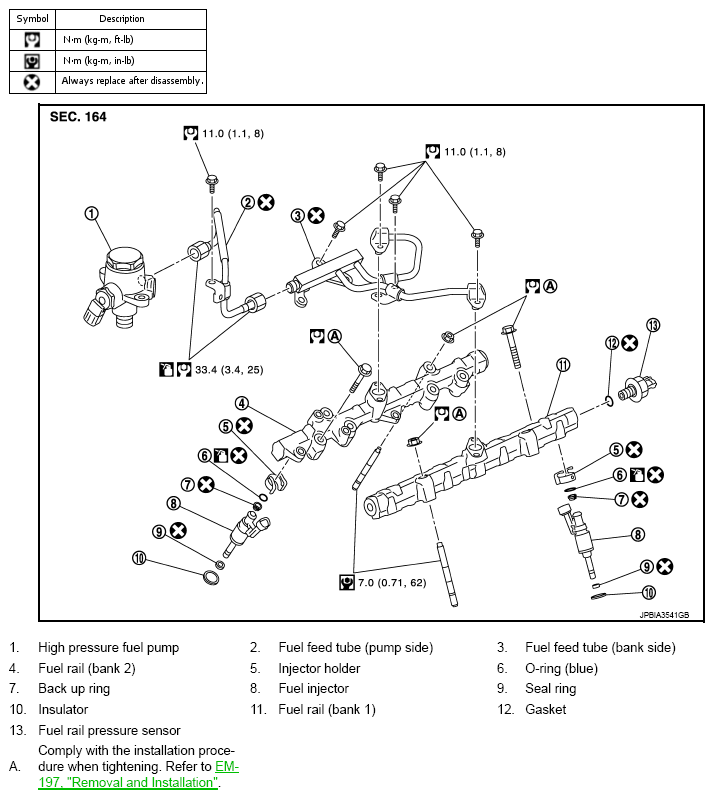

Fig 1: Exploded View Of Fuel Injector & Fuel Tube With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.

CAUTION:

Never remove or disassemble parts unless instructed as shown in the figure.
Be sure to follow the tightening instruction to avoid fuel leakage.
