Disassembly and Assembly: Disassembly

Remove console finisher assembly. Refer to "REMOVAL AND INSTALLATION ".
Remove console tray.
1. Open the console lid assembly.
2. Insert a remover tool (B) between console tray (1) and hinge arm (2) and disengage connection of rear portion.
  CAUTION:
  - Slowly disengage connection of console tray.
  - Never excessively pull console tray.

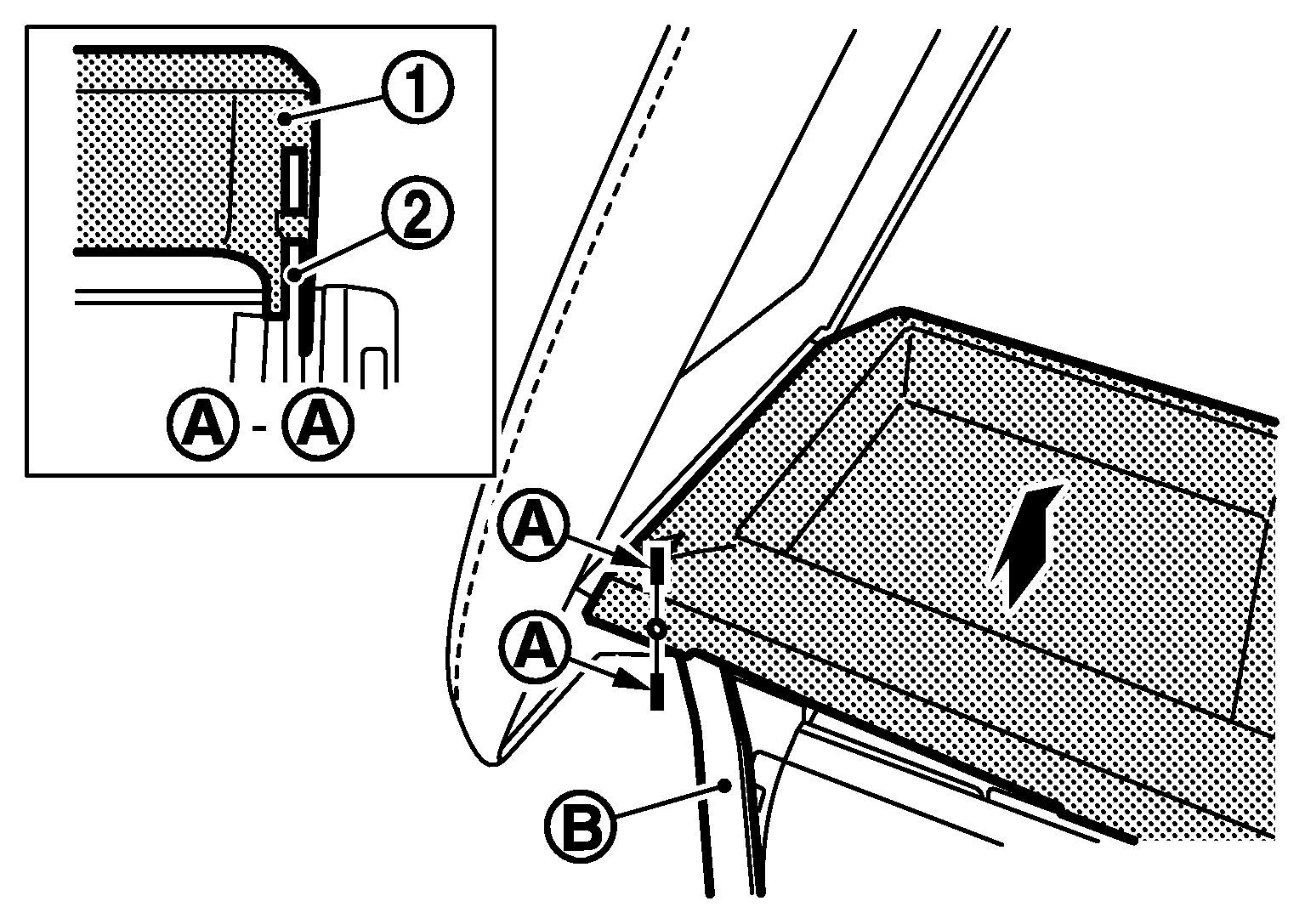

    Fig 1: Disengaging Connection Of Console Tray
    Courtesy of NISSAN MOTOR CO., U.S.A.
3. Rotate console tray as shown in the figure. Slide toward vehicle front end pull toward vehicle upper.
  CAUTION:
  - Slowly disengage connection of console tray.
  - Never excessively pull console tray.

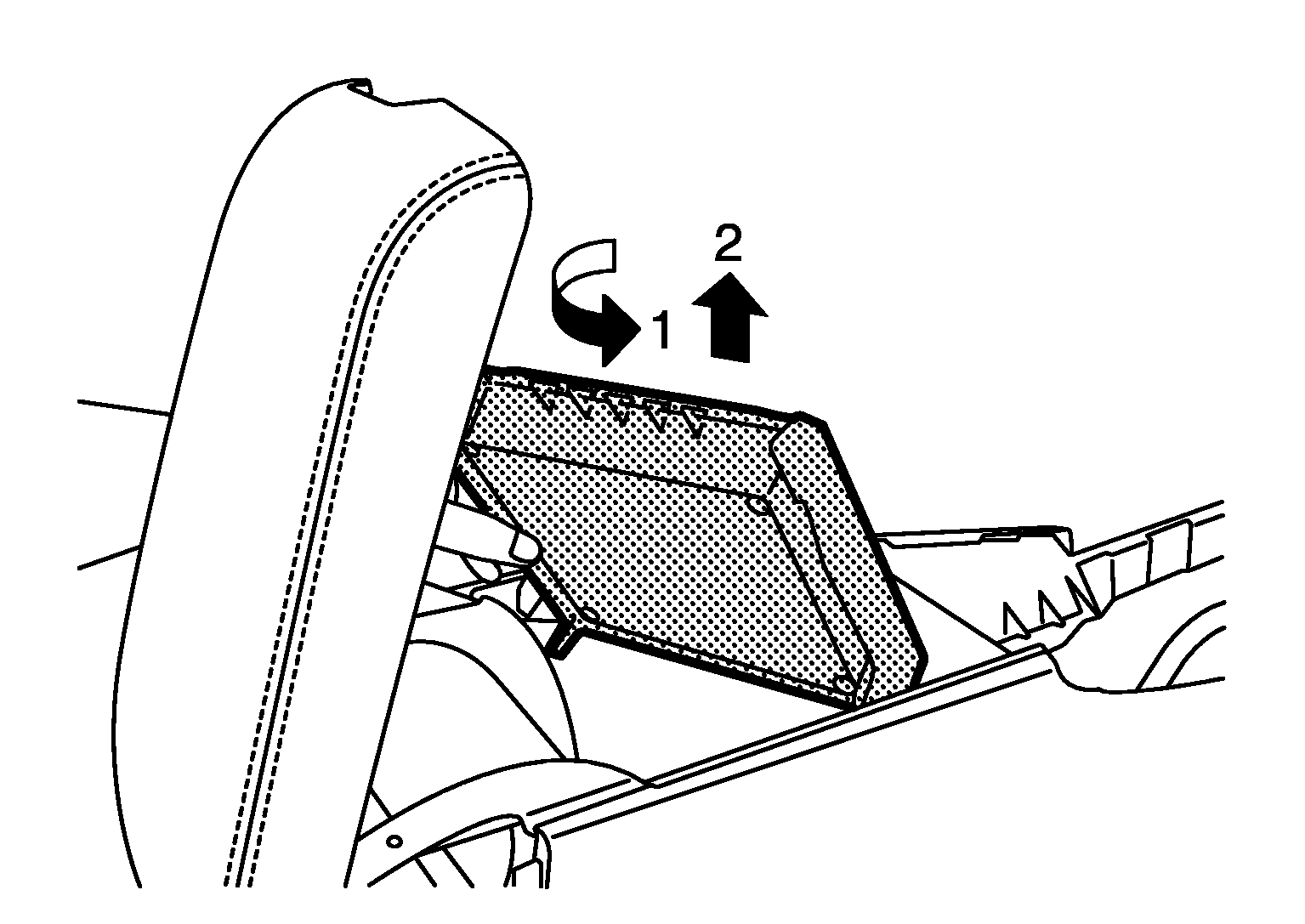

    Fig 2: Rotating Console Tray
    Courtesy of NISSAN MOTOR CO., U.S.A.
Remove console lid assembly.
1. Remove screws (A).
  NOTE: Do not lock console lid assembly. Perform the operation while console lid assembly is partly open.

  CAUTION: Be careful of the strong repulsive force of the spring.
2. Pull back console lid assembly.

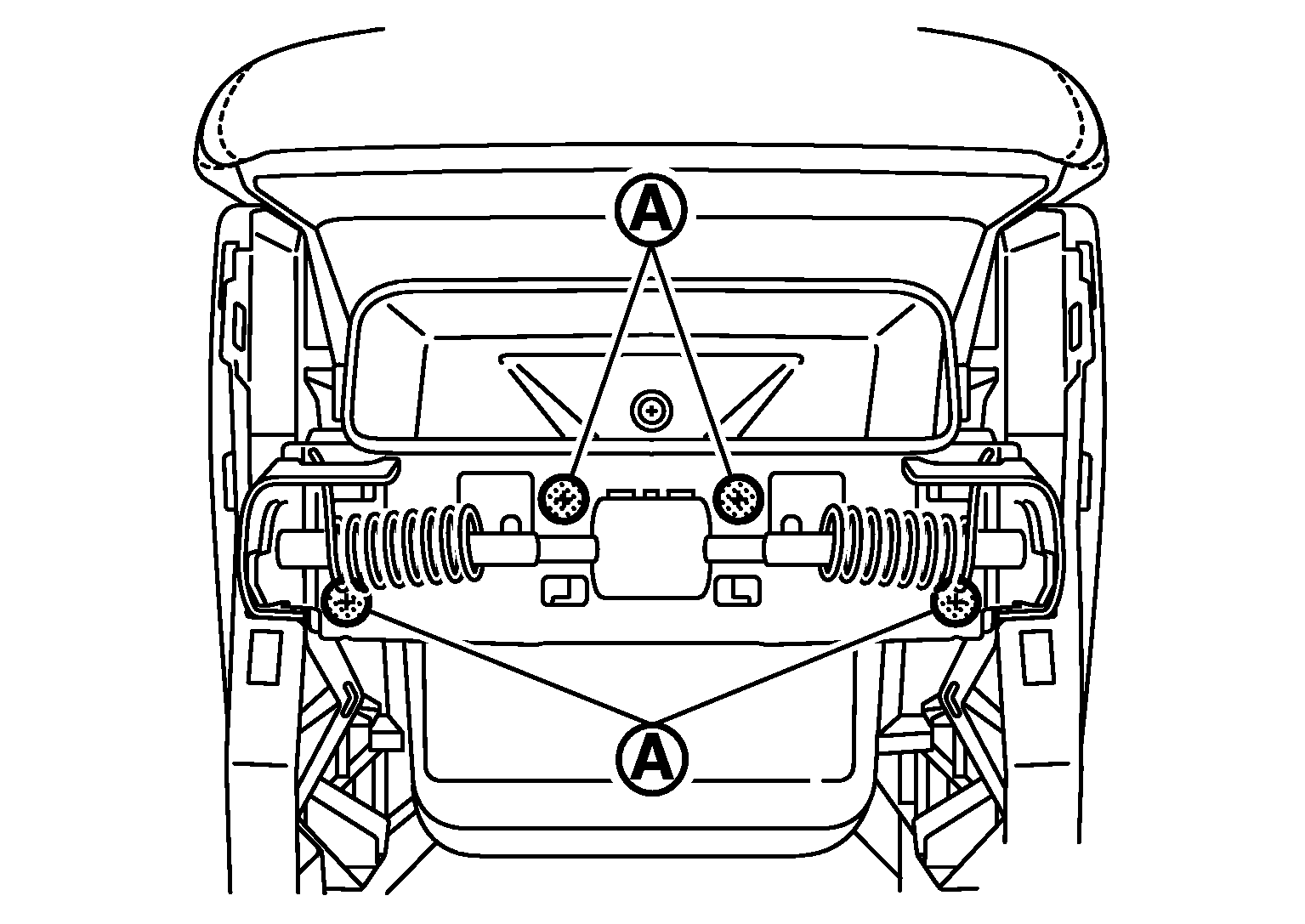

  Fig 3: Identifying Console Lid Assembly Screws
  Courtesy of NISSAN MOTOR CO., U.S.A.
Rear ventilator duct. Refer to "REAR VENTILATOR DUCT : REMOVAL AND INSTALLATION ".
Remove inside key antenna (console). Refer to "CONSOLE : REMOVAL AND INSTALLATION ".
Remove console center finisher.
1. Remove screws (A).
2. Pull toward the arrow direction.
  NOTE: Remove the following parts after removing console center finisher (1).
  - Power socket (2): Refer to "REMOVAL AND INSTALLATION ".
  - USB connector (3): Refer to "REMOVAL AND INSTALLATION ".

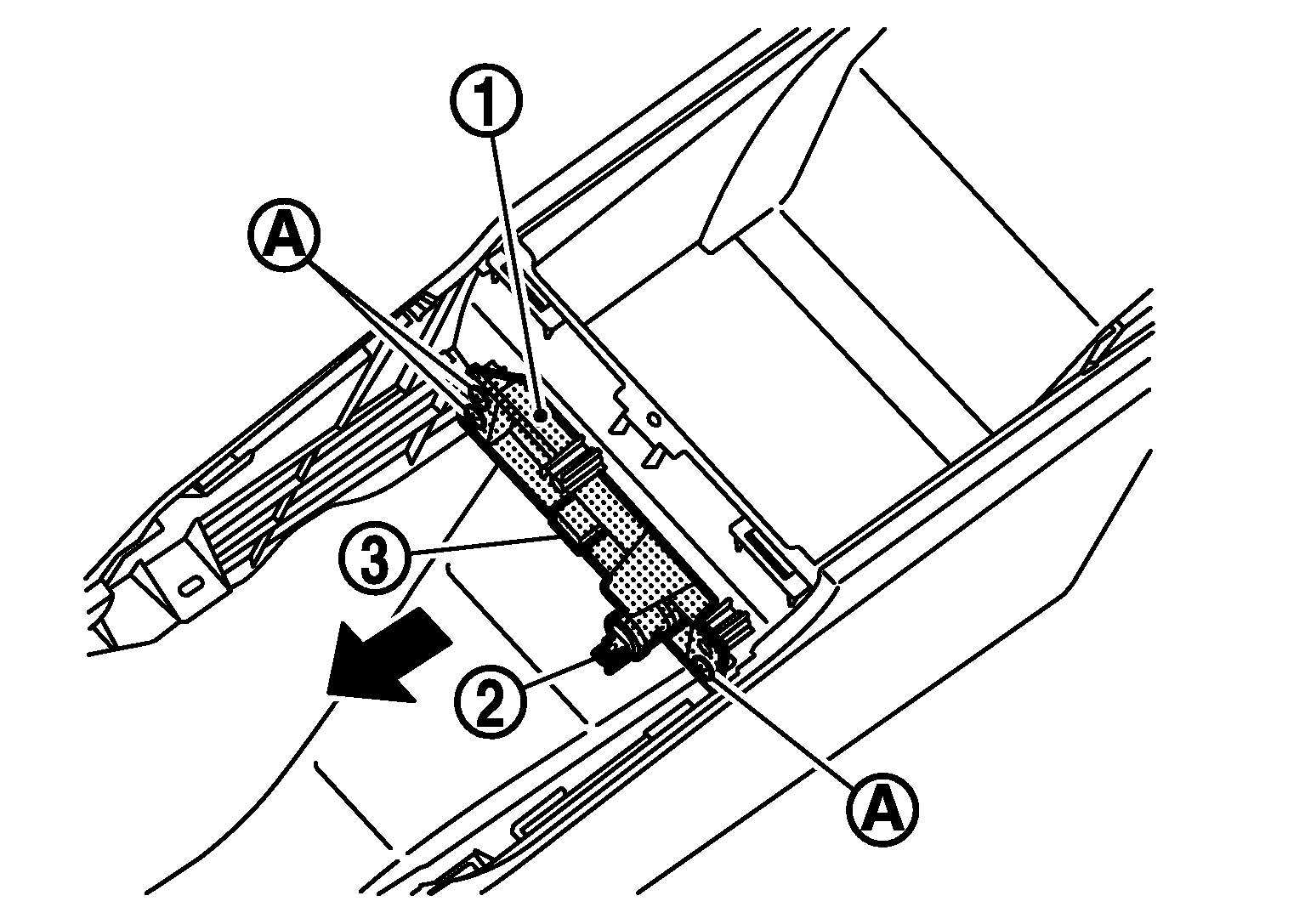

    Fig 4: Pulling Console Center Finisher
    Courtesy of NISSAN MOTOR CO., U.S.A.

Remove console finisher assembly. Refer to "REMOVAL AND INSTALLATION ".
Remove cluster lid finisher (LH/RH) fixing screws, and then remove cluster lid finisher (LH/RH).
Remove cup holder assembly fixing screws, and then remove cup holder assembly.
Remove A/T control indicator fixing screws, and then remove A/T control indicator.
Remove Infiniti drive mode selector.
Remove switch panel fixing screws, and then remove switch panel.
Remove ashtray assembly fixing screws, and then remove ashtray assembly.
