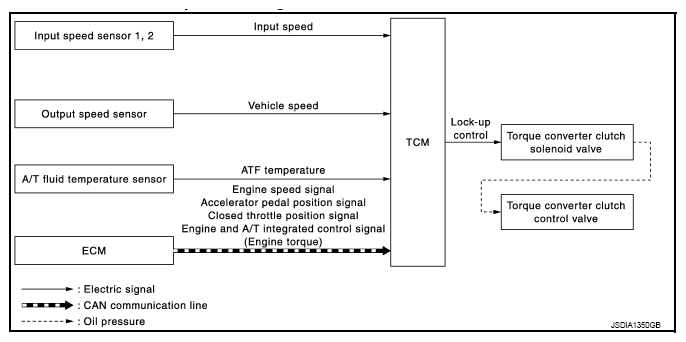

Home >> Infiniti >> 2011 >> M37 Base >> Repair and Diagnosis >> Transmission >> Automatic Transmission -- M37/M56 >> System Description >> System >> Lock-Up Control >> LOCK-UP CONTROL : System Diagram
