Symptom Table

The diagnostics item numbers show the sequence for inspection. Inspect in order from item 1.

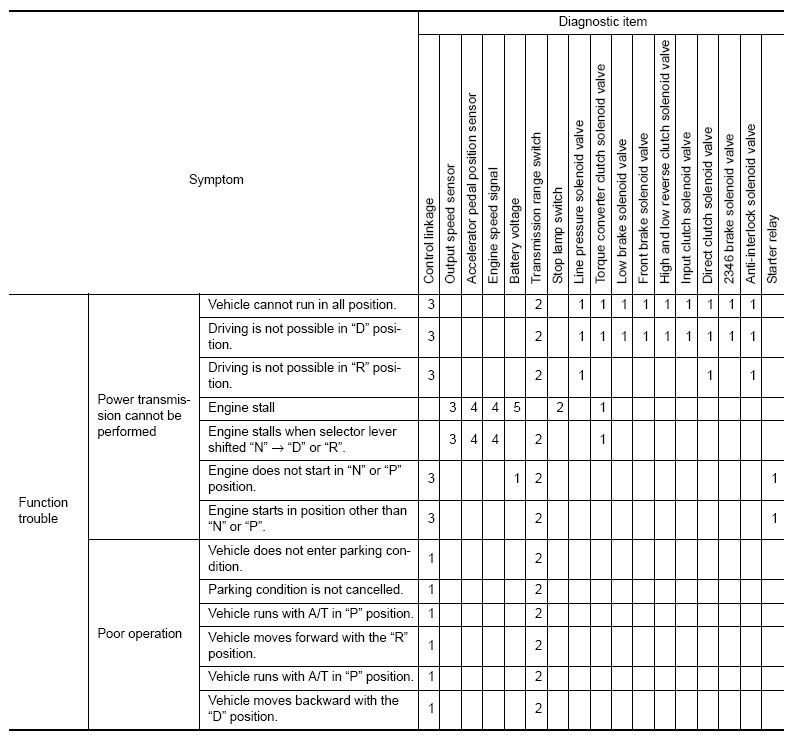

Fig 1: Symptom Diagnosis Chart (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

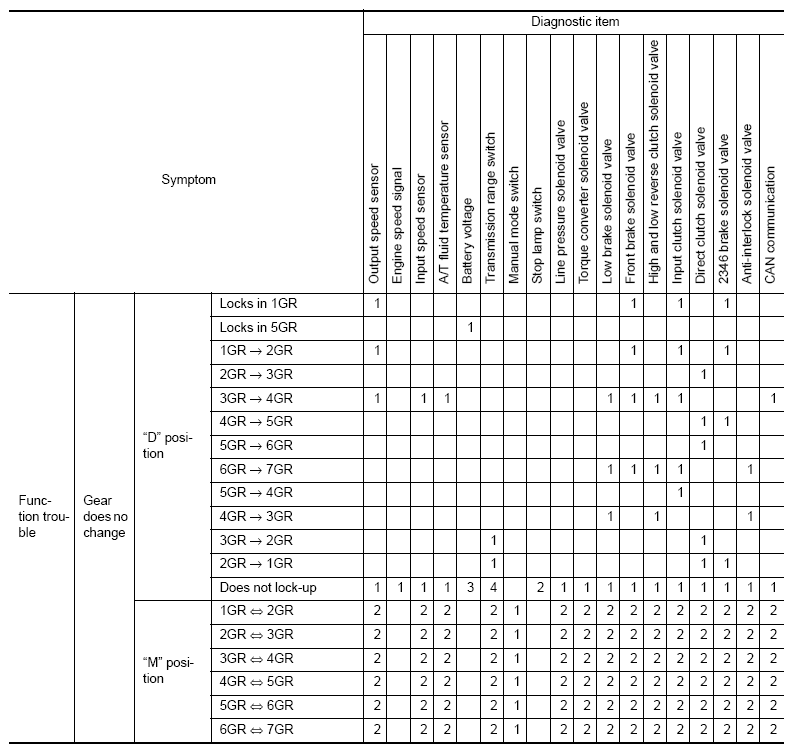

Fig 2: Symptom Diagnosis Chart (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

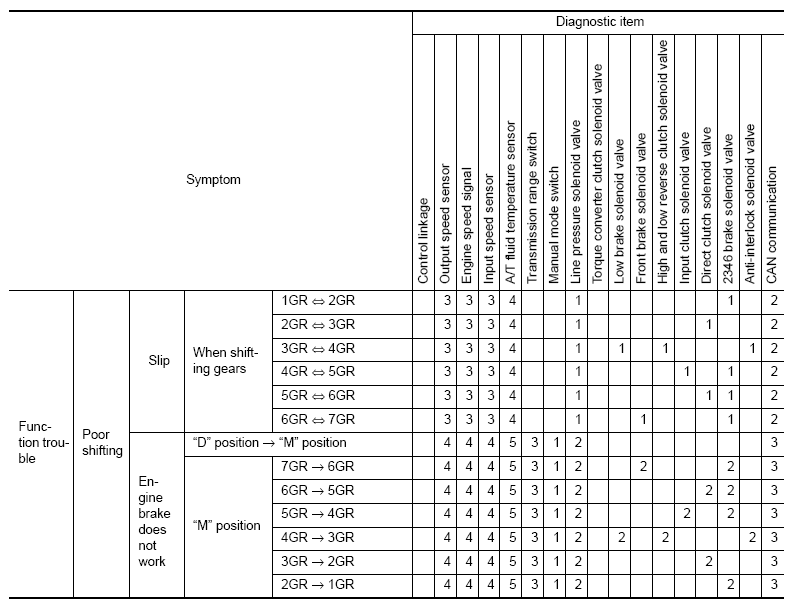

Fig 3: Symptom Diagnosis Chart (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

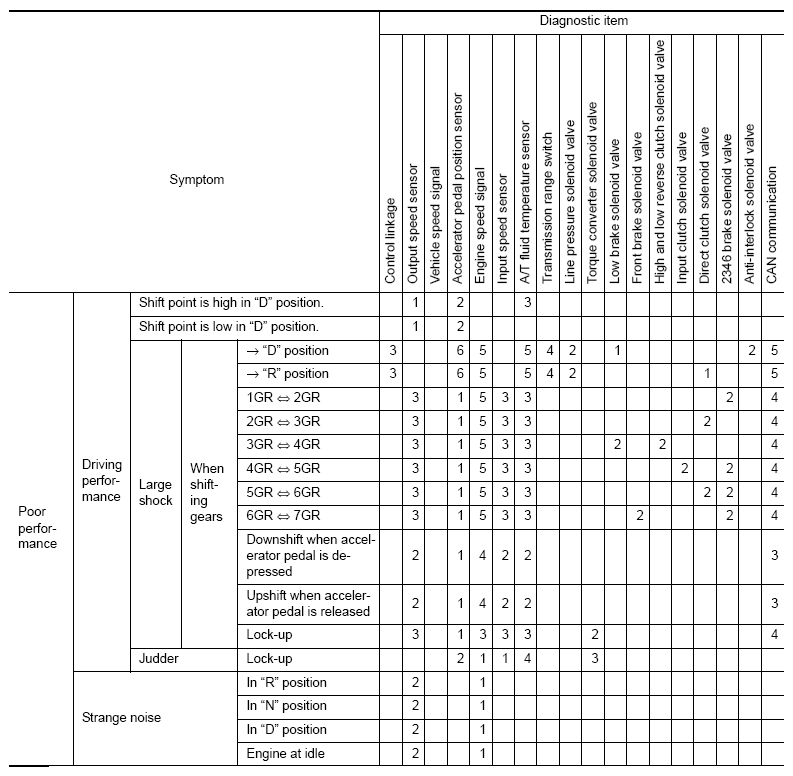

Fig 4: Symptom Diagnosis Chart (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

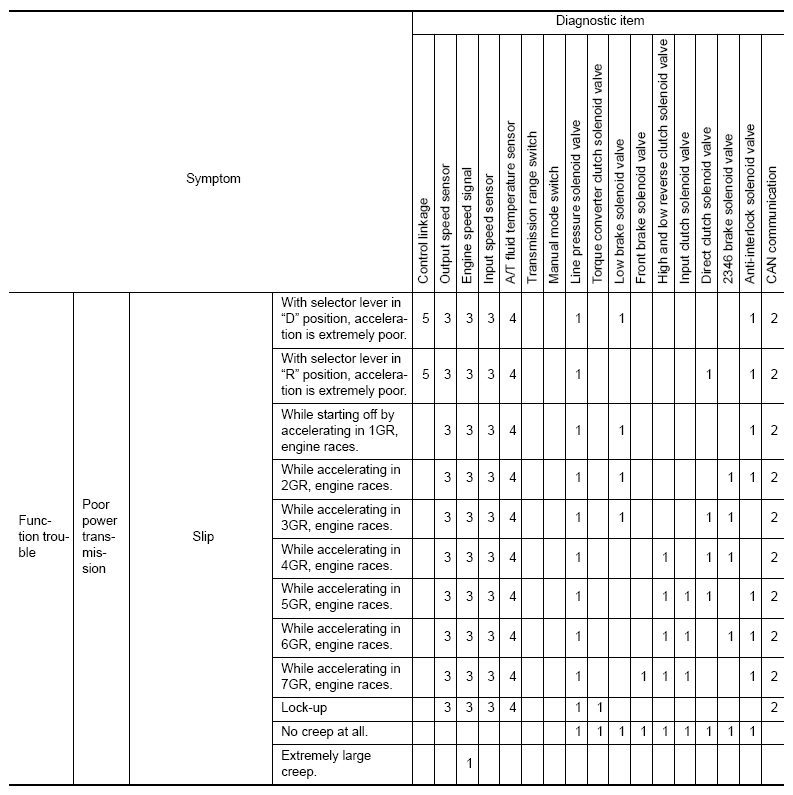

Fig 5: Symptom Diagnosis Chart (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.
