Brake Line

WARNING: This page is about a different car, the 2012 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check brake line (tubes and hoses) for cracks, deterioration or other damage. Replace any damaged parts.
  2. Depress the brake pedal with a force of 490 N (50 kg, 110 lb) and hold down the pedal for Approx. 5 seconds with the engine running. Check for any fluid leakage.
    CAUTION: Retighten the applicable connection to the specified torque and repair any abnormal (damaged, worn or deformed) part if any brake fluid leakage is present.

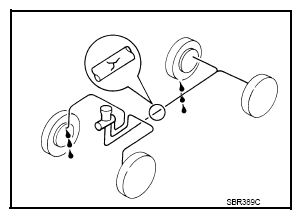

    Fig 1: Checking Brake Fluid Lines For Leakage And Cracks
    G07013825Courtesy of NISSAN NORTH AMERICA, INC.
