Engine Coolant: Inspection: Level

WARNING: This page is about a different car, the 2012 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Check if the reservoir tank engine coolant level is within the "MIN" to "MAX" when the engine is cool.

Adjust the engine coolant level if necessary.

WARNING: Never remove reservoir tank cap when engine is hot.

CAUTION: Refill Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent in its quality mixed with water (distilled or demineralized). Refer to the following table:

For NORTH AMERICA	"FOR NORTH AMERICA: FLUIDS AND LUBRICANTS "
For MEXICO	"FOR MEXICO: FLUIDS AND LUBRICANTS "

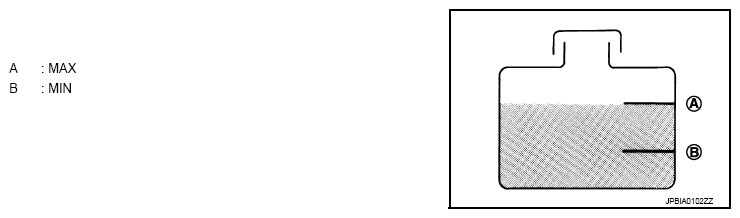

Fig 1: Identifying Engine Coolant Reservoir Tank MIN And MAX Level

Courtesy of NISSAN NORTH AMERICA, INC.
