Exploded View

WARNING: This page is about a different car, the 2012 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

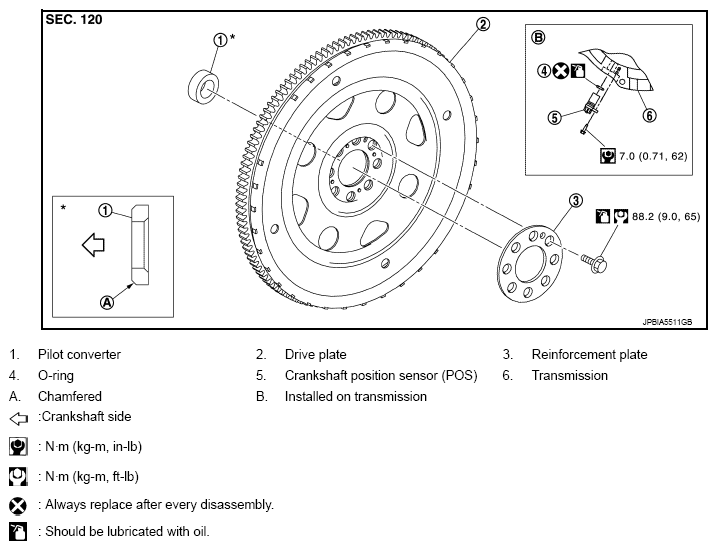

Fig 1: Exploded View Of Drive Plate With Torque Specifications
G08258575Courtesy of NISSAN NORTH AMERICA, INC.
