Exploded View

WARNING: This page is about a different car, the 2012 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

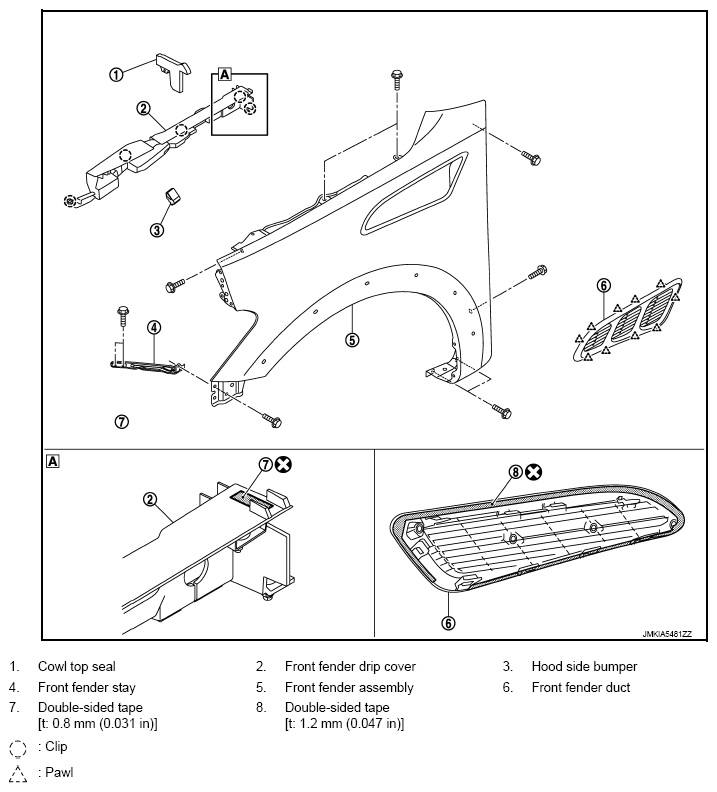

Fig 1: Exploded View Of Front Fender
G08259122Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS for symbols in the figure."
