WARNING: This page is about a different car, the 2011 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

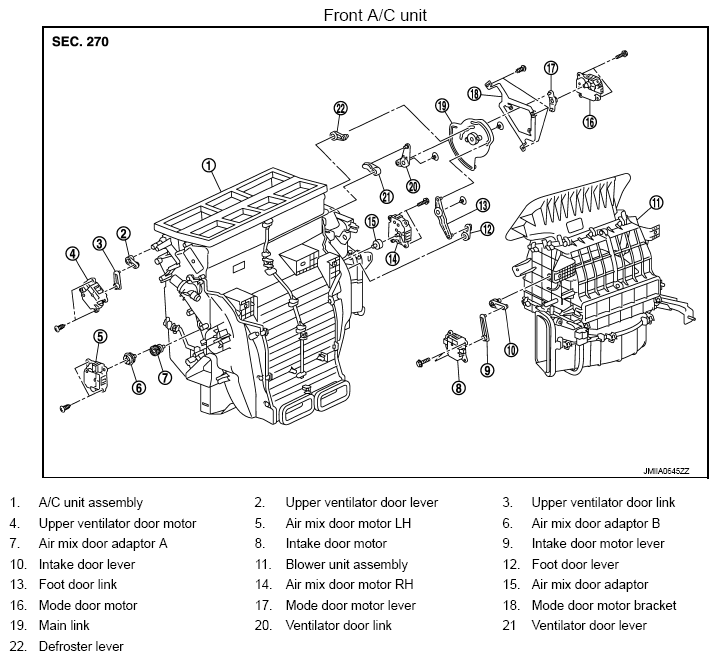

Fig 1: Exploded View Of Front A/C Unit
Courtesy of NISSAN MOTOR CO., U.S.A.

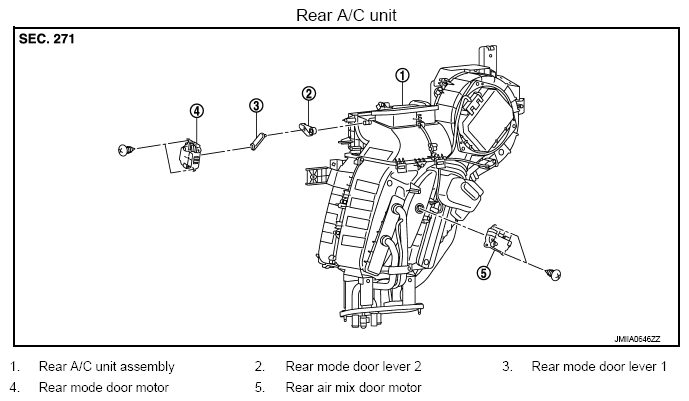

Fig 2: Identifying Door Motor Components (Rear A/C Unit)
