Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2011 Infiniti M56. However, it is still accessible from the selected car via links, so may be relevant.

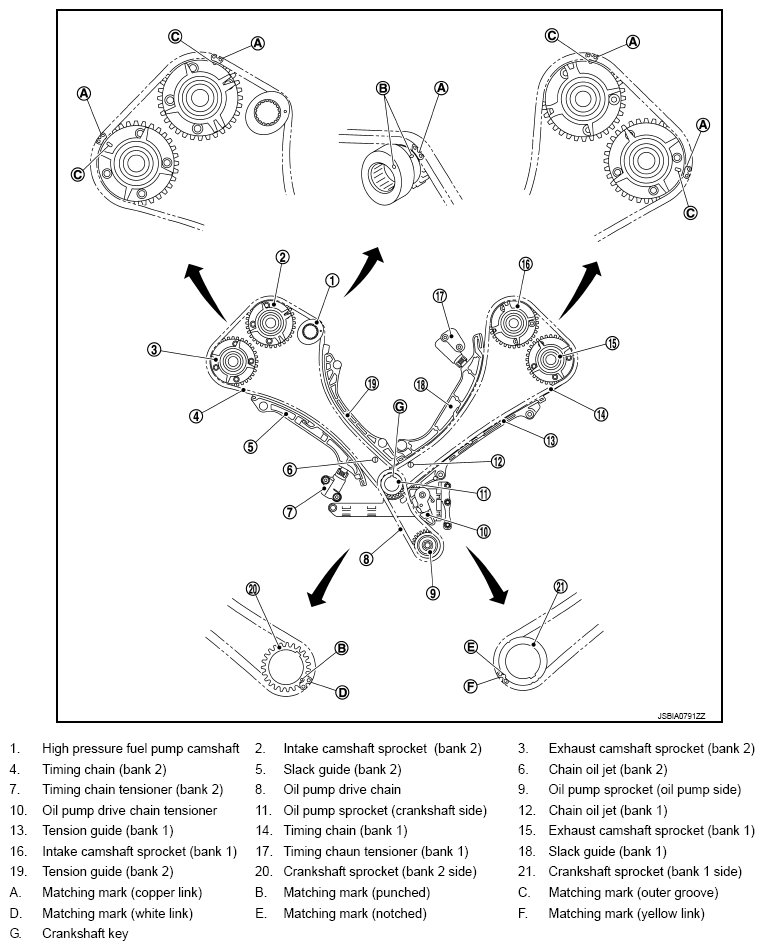

Fig 1: Identifying Relationship Between Matching Mark On Timing Chain And Corresponding Sprocket
G07017858Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
  • The above figure shows the relationship between the matching mark on each timing chain and that on the corresponding sprocket, with the components installed.
  • Parts with an identification mark (R or L) should be installed on the corresponding bank according to the mark.
    • Intake camshaft sprocket, exhaust camshaft sprocket
    • Tension guide
    • Slack guide
  • To install timing chain and related parts, start with those on bank 2. The procedure for installing parts on bank 1 is omitted because it is the same as that for installation on bank 2.
  • There is no matching mark in the oil pump related parts.
  1. Check that crankshaft key (1) and dowel pin (A) of each camshaft are located as shown in the figure.

    Camshaft dowel pin

    : At cylinder head upper face side in each bank

    Crankshaft key

    : Straight up

    Fig 2: Identifying Crankshaft Key And Dowel Pin Of Camshaft
    G05980115Courtesy of NISSAN MOTOR CO., U.S.A.
    NOTE: Though camshaft does not stop at the position as shown in the figure, for the placement of cam nose, it is generally accepted camshaft is placed for the same direction of the figure.
  2. Install camshaft sprockets (INT and EXH).
    • Install onto correct side by checking with identification mark (A) on surface.

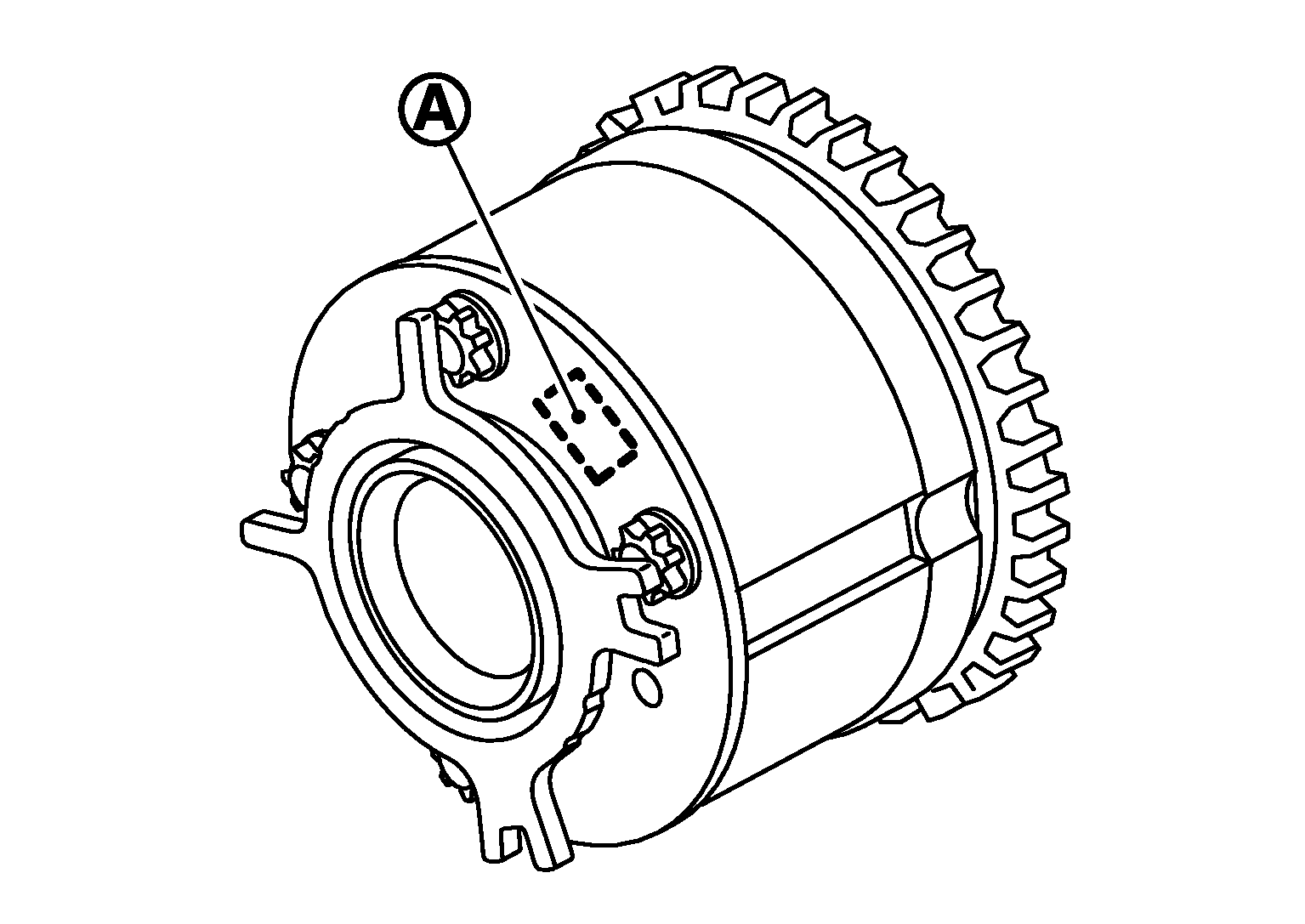

      Fig 3: Identifying Identification Mark On Surface Of Camshaft Sprockets (INT And EXH)
      G05980116Courtesy of NISSAN MOTOR CO., U.S.A.

    Exhaust side:

    • Secure the hexagonal portion of camshaft (EXH) using a wrench to tighten mounting bolt. Refer to "EXPLODED VIEW ".

    Intake side:

    • Secure the hexagonal portion (located in between journal No. 1 and journal No. 2) of drive shaft (A) using a wrench (B) to tighten mounting bolt. Refer to "EXPLODED VIEW ".

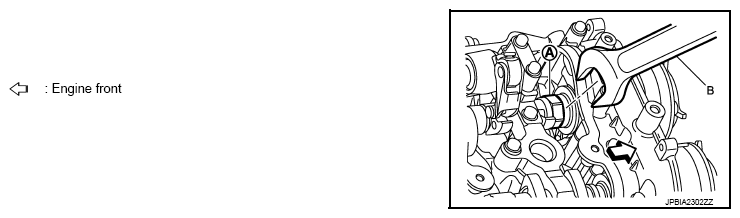

      Fig 4: Example Of Tightening Drive Shaft Mounting Bolt
      G07017861Courtesy of NISSAN MOTOR CO., U.S.A.
      NOTE: The figure shows an example of bank 2.
  3. Install high pressure fuel pump camshaft.
    CAUTION: After removing lifter, replace lifter with a new one.
  4. Install timing chains as per the following:
    1. Install crankshaft sprockets for both banks.
      • Install each crankshaft sprocket so that its flange side (the larger diameter side without teeth) (A) faces in the direction shown in the figure.
        Fig 5: Installing Crankshaft Sprocket
        G07017862Courtesy of NISSAN MOTOR CO., U.S.A.
        NOTE: The same parts are used but facing directions are different.
    2. Install timing chains.

      Bank 2 (F):

      • Install timing chain so that the matching mark (punched) (B) on high pressure fuel pump camshaft and the matching mark (outer groove) (C) on camshaft sprocket is aligned with the copper link (A) on timing chain, while the matching mark (punched) (B) on crankshaft sprocket is aligned with the white link (D) one on timing chain, as shown in the figure.

      Bank 1 (G):

      • Install timing chain so that the matching mark (outer groove) (C) on camshaft sprocket is aligned with the copper link (A) on timing chain, while the matching mark (notched) (E) on crankshaft sprocket is aligned with the yellow link (D) one on timing chain, as shown in the figure.

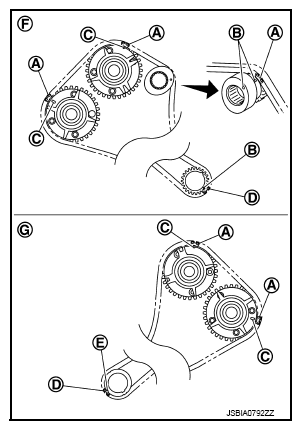

        Fig 6: Identifying Matching Marks On Camshaft And Crankshaft Sprockets
        G07017863Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install slack guides and tension guides onto correct side by checking with identification mark (A) on surface.

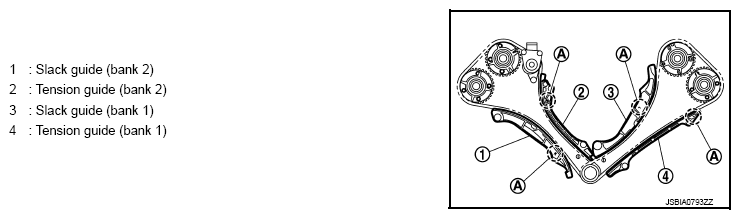

    Fig 7: Identifying Matching Marks On Surface Of Slack And Tension Guides (Bank 1 And 2)
    G07017864Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Never overtighten slack guide mounting bolt (2). It is normal for a gap (A) to exist under the bolt seats when mounting bolt are tightened to the specification.
    Fig 8: Identifying Slack Guide Mounting Bolt Gap
    G07017865Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Install timing chain tensioner as per the following:
    1. Fix the plunger at the most compressed position using a stopper pin (A).
      • Remove any dirt and foreign materials completely from the back and the mounting surfaces of timing chain tensioner.
    2. Pull out stopper pin after installing, and then release plunger.

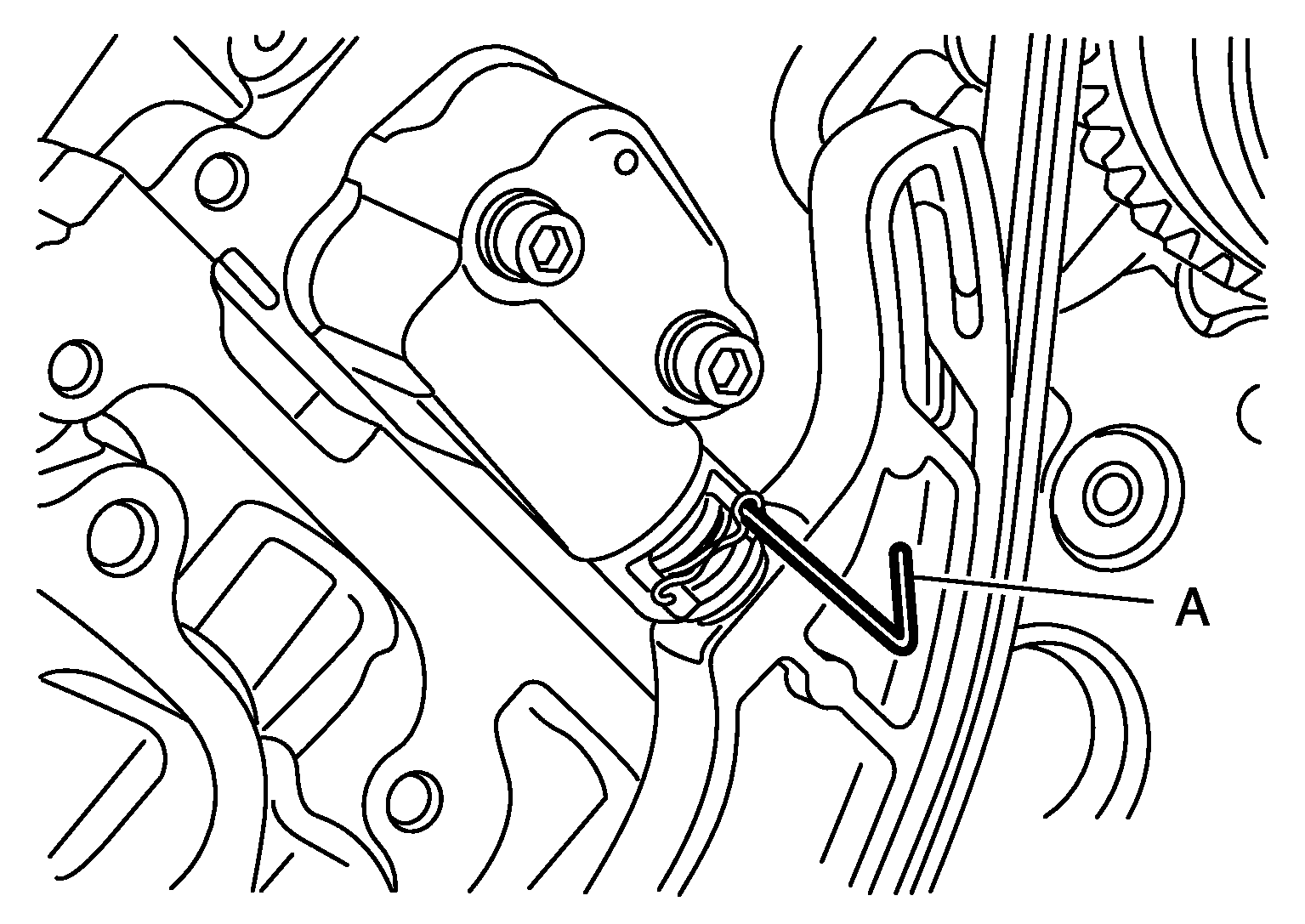

      Fig 9: Identifying Stopper Pin Into Body Hole
      G05980110Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Check again that the matching marks on sprockets and timing chain have not slipped out of alignment.
  8. Install oil pump drive chain as per the following:
    1. Install oil pump drive chain tensioner.
      • Fix the tensioner at the most compressed position using a stopper pin. and then install it.
    2. Install the oil pump sprocket (crankshaft side), oil pump sprocket (oil pump side) and oil pump drive chain at the same time.
      • Install each oil pump sprocket so that its flange side (the larger diameter side without teeth) (A) faces in the direction shown in the figure.
        Fig 10: Identifying Oil Pump And Sprocket Of Crankshaft And Oil Pump Sides
        G07017867Courtesy of NISSAN MOTOR CO., U.S.A.
        NOTE: There is no matching mark in the oil pump related parts.
    3. Hold the two flat parts of oil pump shaft, and then tighten the oil pump sprocket (oil pump side) nut.

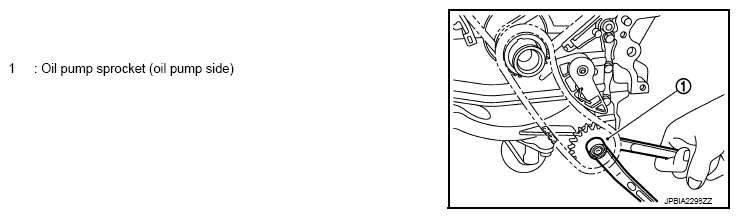

      Fig 11: Tightening Oil Pump Sprocket Nut (Oil Pump Side)
      G07017868Courtesy of NISSAN MOTOR CO., U.S.A.
      CAUTION: Secure the oil pump shaft with the two flat parts.
    4. Securely pull out the stopper pin (A) after installing the oil pump drive chain.
      • Check that the tension is applied to the oil pump drive chain (1) after installing.

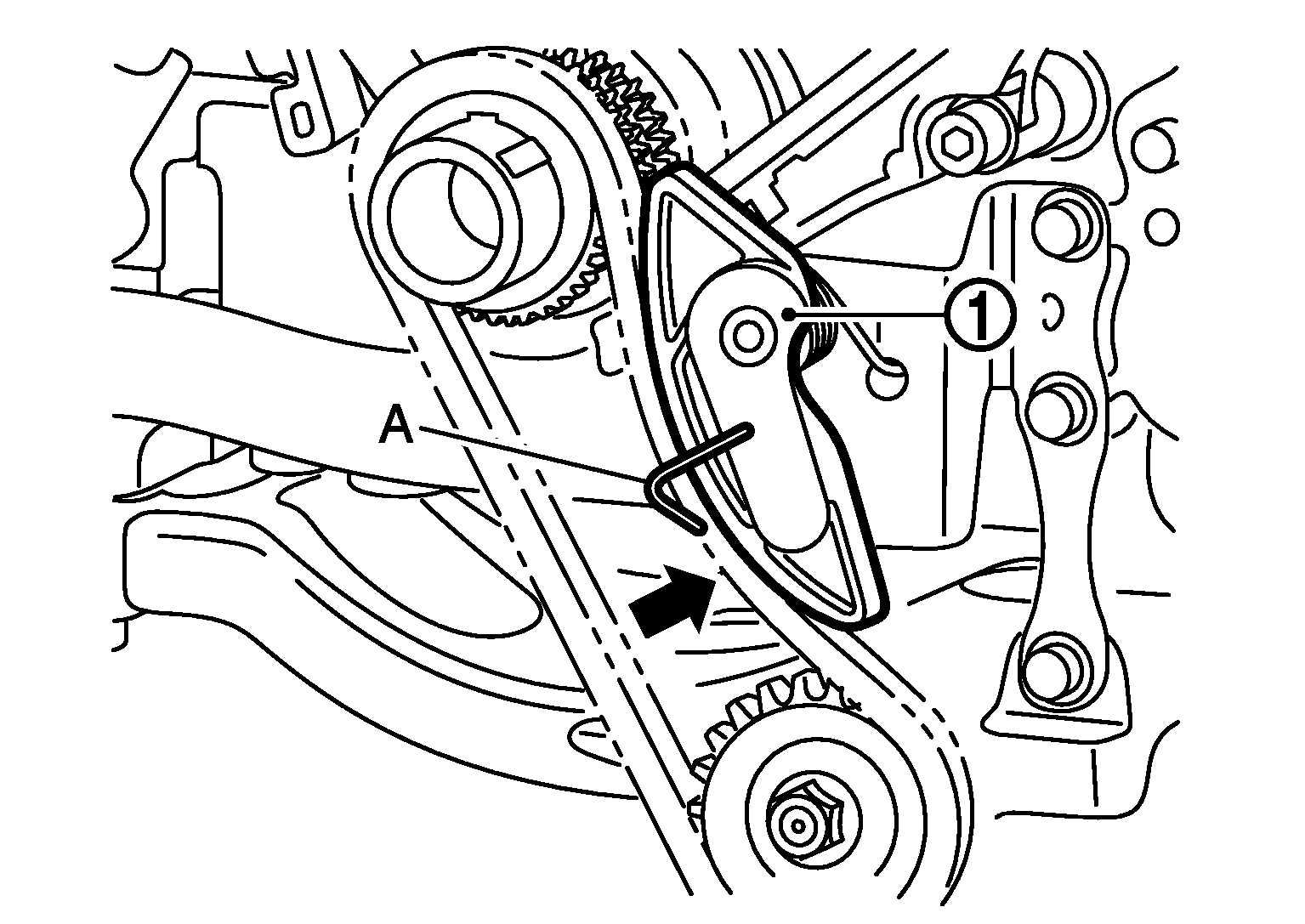

        Fig 12: Pulling Stopper Pin Into Body Hole
        G05980107Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Install front oil seal on front cover. Refer to "FRONT OIL SEAL : REMOVAL AND INSTALLATION ".
  10. Install timing chain tensioner cover (2) to front cover (1).
    Fig 13: Identifying Liquid Gasket Applying Dimension Of Front Cover
    G07017870Courtesy of NISSAN MOTOR CO., U.S.A.
    • Apply a continuous bead of liquid gasket with tube presser (commercial service tool) to front cover as shown in the figure.

      Use Genuine RTV Silicone Sealant or an equivalent.  Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

  11. Install oil filter (for valve timing control solenoid valve) (1) in the direction shown in the figure, if removed.
    • Check that the oil filter does not protrude from the upper surface of front cover (2) after installation.
      Fig 14: Identifying Oil Filter And Front Cover
      G04924656Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Install front cover as per the following:
    1. Install new O-ring (1), (2) onto cylinder heads and cylinder block.

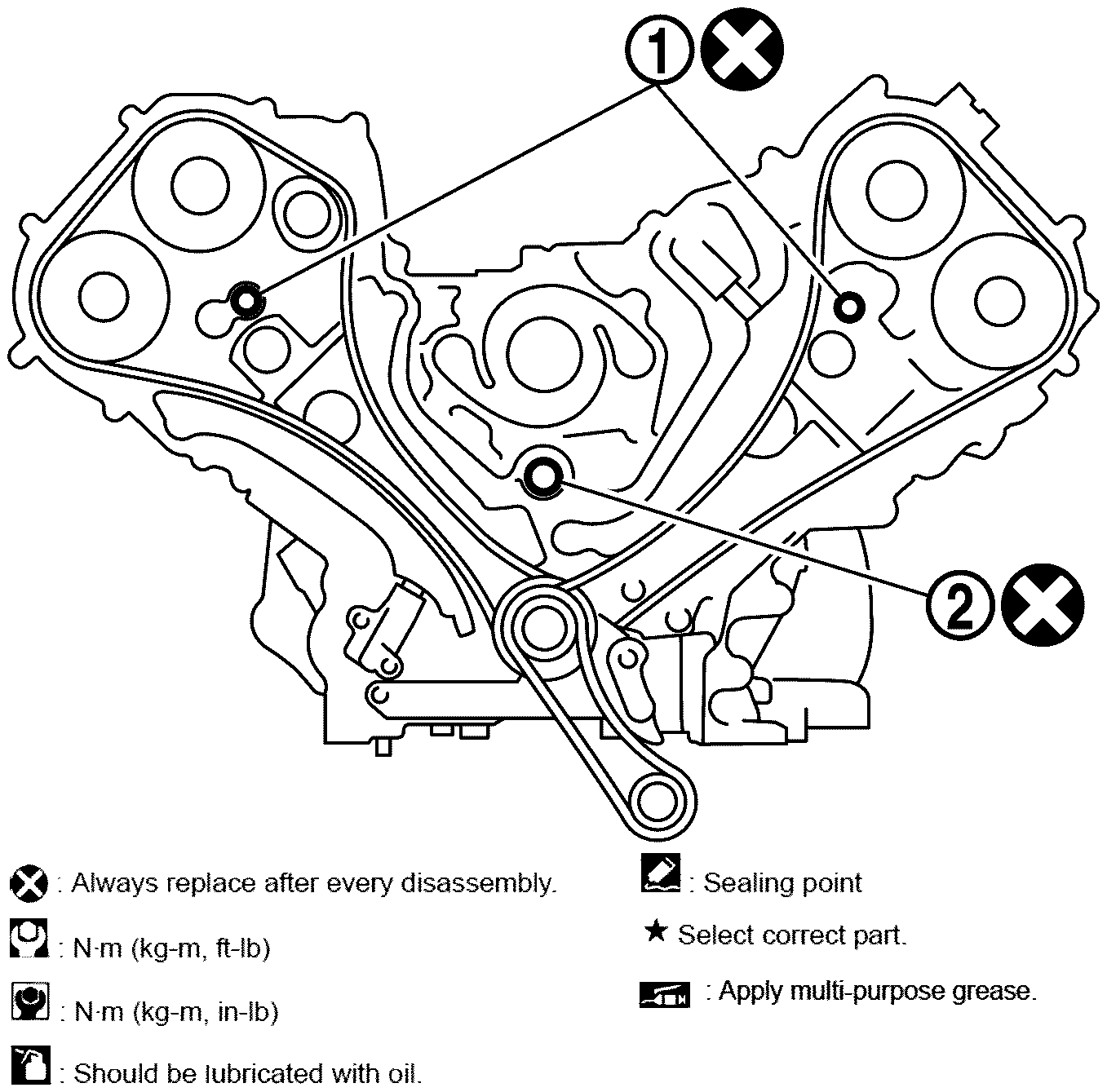

      Fig 15: Identifying O-Rings Onto Cylinder Heads And Block
      G07017850Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Apply a continuous bead of liquid gasket with tube presser (commercial service tool) to front cover as shown in the figure.

      Use Genuine RTV Silicone Sealant or equivalent.  Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

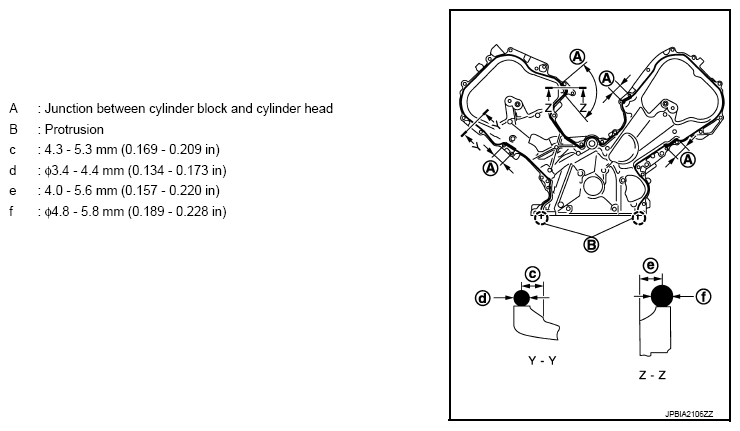

      Fig 16: Identifying Liquid Gasket Applying Dimensions Of Front Cover
      G07017873Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check again that the matching marks on timing chain and that on each sprocket are aligned. Then, install front cover.
      CAUTION: Be careful not to damage front oil seal by interference with front end of crankshaft.
    4. Tighten mounting bolts in numerical order as shown in the figure.

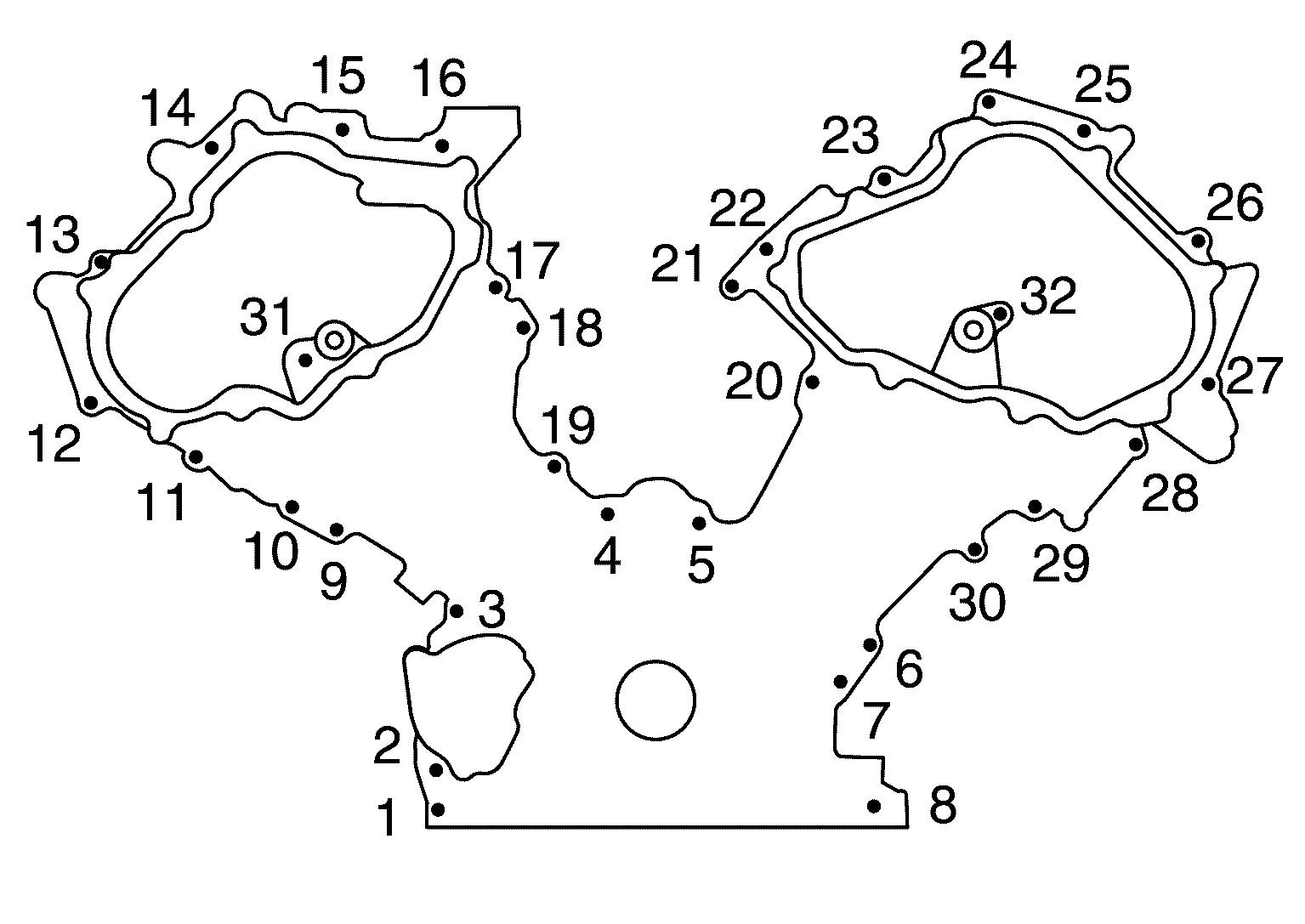

      Fig 17: Front Cover Mounting Bolts Tightening Sequence
      G07017849Courtesy of NISSAN MOTOR CO., U.S.A.
      • There are three types of mounting bolts.

        A : 20 mm (0.79 in)

        B : 50 mm (1.97 in)

        C : 80 mm (3.15 in)

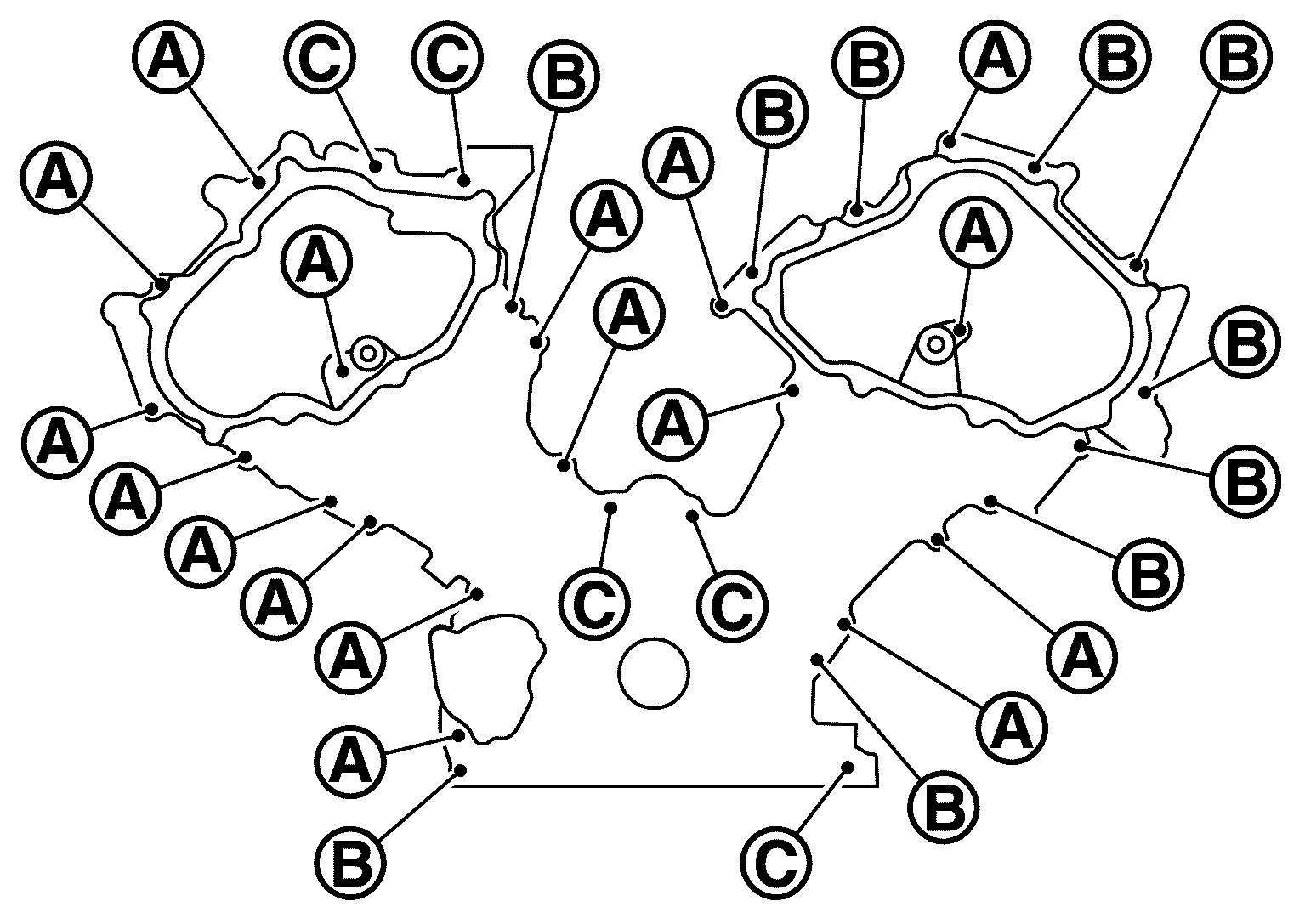

        Fig 18: Identifying Front Cover Mounting Bolts
        G07017875Courtesy of NISSAN MOTOR CO., U.S.A.
    5. After all mounting bolts are tightened, retighten them in numerical order as shown in the figure.
      CAUTION: Be sure to wipe out any excessive liquid gasket leaking onto surface mating with oil pan.
  13. Install valve timing control cover as per the following:
    • Both (A) of fuel pump connector protector (1) cannot be installed after installing valve timing control cover. Therefore, install fuel pump connector protector in advance, if it is being removed.

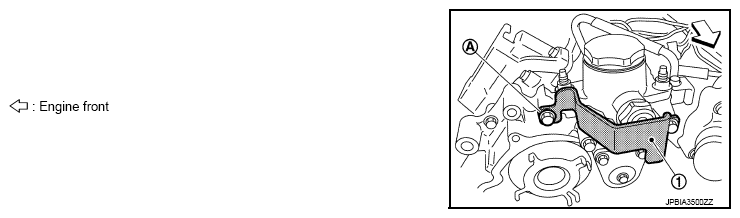

      Fig 19: Identifying Fuel Pump Connector Protector
      G07017876Courtesy of NISSAN MOTOR CO., U.S.A.
    1. Install new O-rings (1) on front cover.

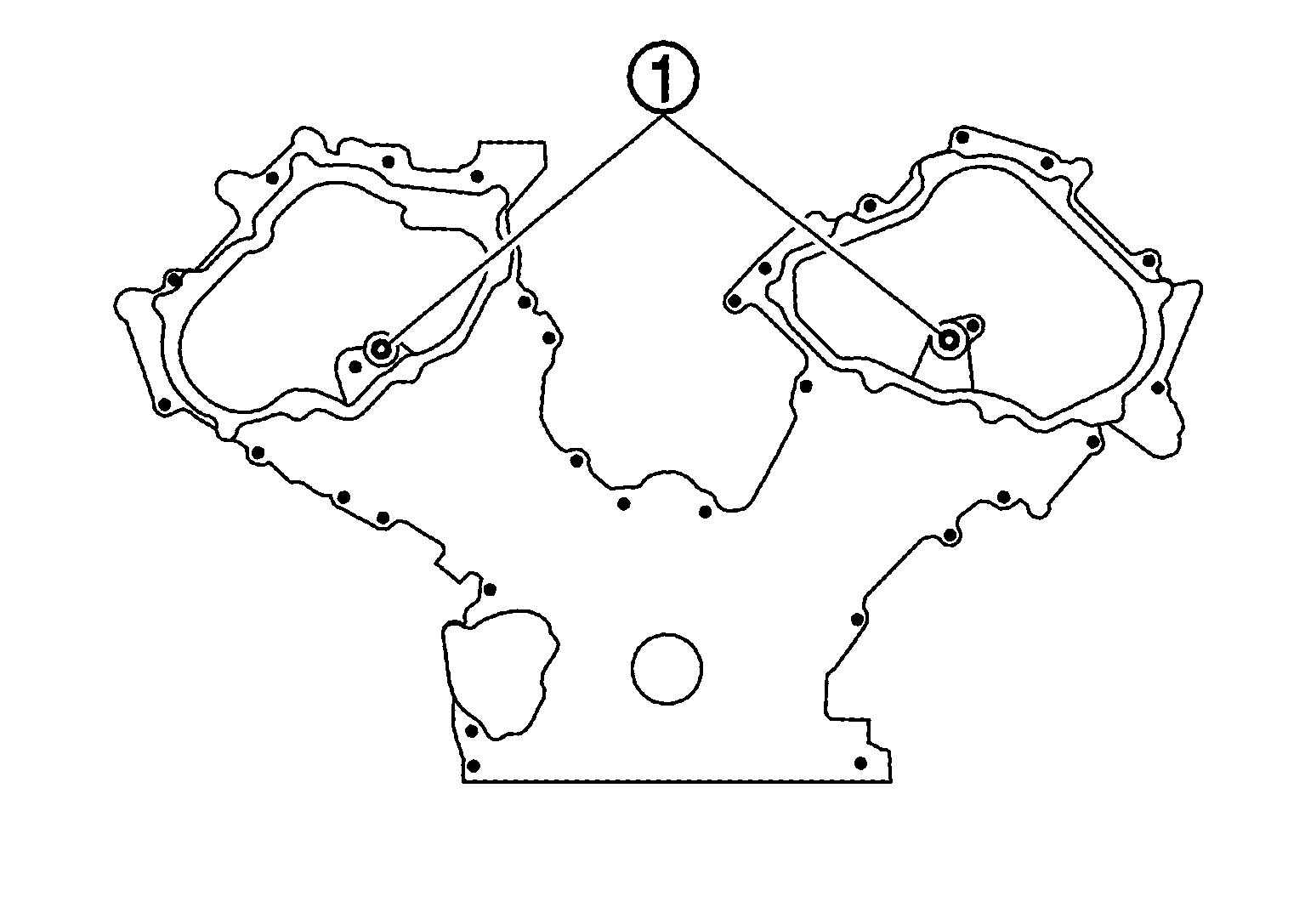

      Fig 20: Identifying O-Rings Of Front Cover
      G07017847Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Install new seal rings (1) in shaft grooves.
      CAUTION: When replacing seal ring, replace all rings with new ones.
      Fig 21: Identifying Seal Rings On Shaft Grooves
      G07017878Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Apply a continuous bead of liquid gasket with tube presser (commercial service tool) to valve timing control covers as shown in the figure.

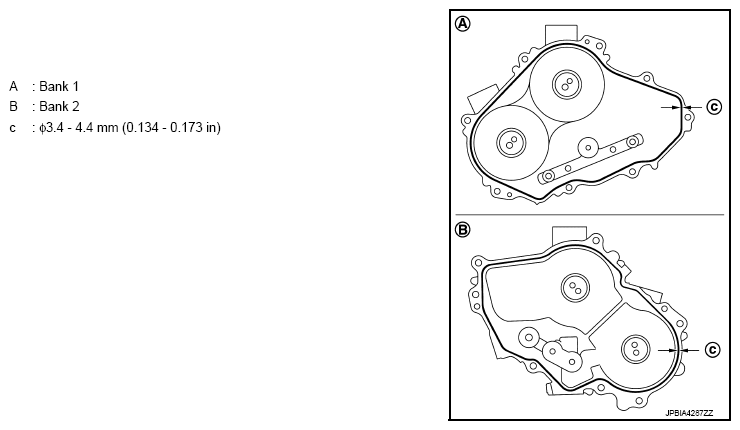

      Fig 22: Identifying Liquid Gasket Applying Dimension Of Valve Timing Control Cover
      G07017879Courtesy of NISSAN MOTOR CO., U.S.A.

      Use Genuine RTV Silicone Sealant or equivalent.  Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

    4. Being careful not to move seal ring from the installation groove, align dowel pins on front cover with dowel pin holes (C) to install valve timing control covers.
      Fig 23: Identifying Dowel Pin Holes Of Valve Timing Control Covers
      G07017880Courtesy of NISSAN MOTOR CO., U.S.A.
    5. Tighten mounting bolts in numerical order as shown in the figure.
  14. Install camshaft position sensor and valve timing control solenoid valve (RH and LH) to valve timing control cover, if removed.
    • Be sure to tighten mounting bolts with flanges completely seated.
  15. Install oil pan (lower) and oil strainer. Refer to "2WD : EXPLODED VIEW " (2WD models) or "AWD : EXPLODED VIEW " (AWD models).
  16. Install oil pan (upper). Refer to "EXPLODED VIEW ".
  17. Install water pump pulley. Refer to "EXPLODED VIEW ".
  18. Install crankshaft pulley.
    1. Install crankshaft pulley, taking care not to damage front oil seal.
    2. Apply engine oil onto threaded parts of crankshaft pulley bolt and seating area.
      • Lightly tapping its center with plastic hammer, insert crankshaft pulley.
        CAUTION: Never tap crankshaft pulley on the side surface where belt is installed (outer circumference).
    3. Tighten crankshaft pulley bolt.

      : 157 N.m (16 kg-m, 116 ft-lb)

    4. Put a paint mark (A) on crankshaft pulley (1) aligning with angle mark (B) on crankshaft pulley bolt.
    5. Tighten crankshaft pulley bolt (clockwise).

      Angle tightening: 90 degrees (c)

      • Check the tightening angle by referencing to the notches. The angle between two notches is 90 degrees.

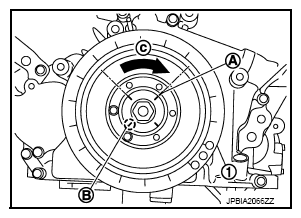

        Fig 24: Tightening Crankshaft Pulley Bolt
        G07017881Courtesy of NISSAN MOTOR CO., U.S.A.
  19. Rotate crankshaft pulley in normal direction (clockwise when viewed from engine front) to confirm it turns smoothly.
  20. Install in the reverse order of removal.
