Exploded View

WARNING: This page is about a different car, the 2011 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

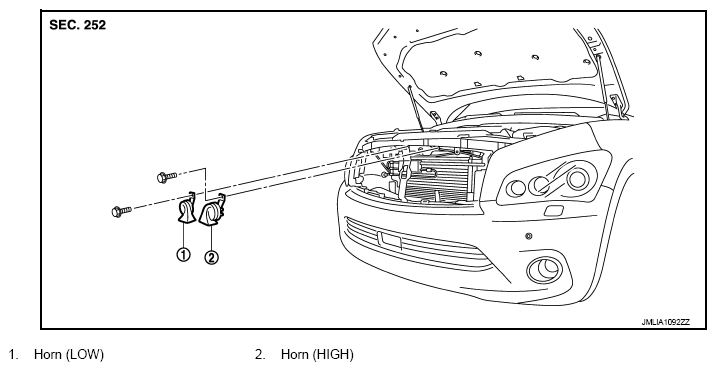

Fig 1: Identifying Horn Remove/Install Components

Courtesy of NISSAN MOTOR CO., U.S.A.
