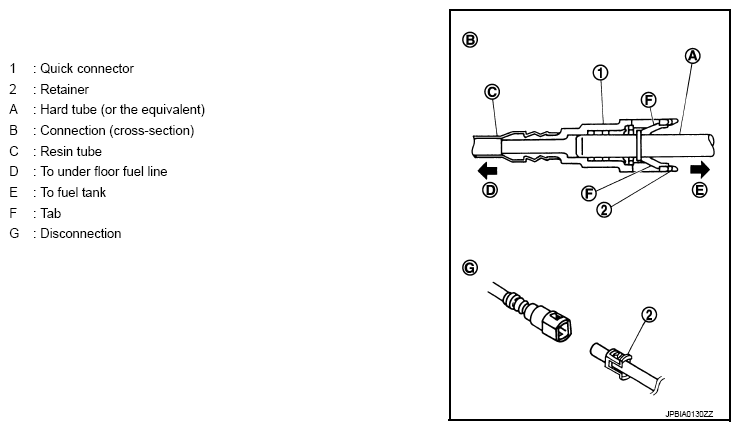

Quick Connector
WARNING: This page is about a different car, the 2011 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- After connecting fuel tube quick connectors, check quick connectors are secure.
Courtesy of NISSAN MOTOR CO., U.S.A.
- Ensure that connector and resin tube never contact any adjacent parts.
