Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver air bag module. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove the steering wheel audio control switch assembly screws.
  3. Disconnect the harness connectors from the steering wheel audio control switches.
  4. Remove the steering wheel audio control switches by pulling on steering wheel audio control switches to release the pawls.
    CAUTION: Do not tilt steering wheel audio control switches during removal or damage may occur to the pawls.

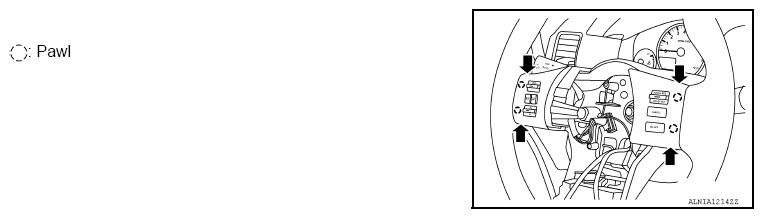

    Fig 1: Removing Steering Wheel Audio Control Switches
    G08714640Courtesy of NISSAN NORTH AMERICA, INC.
