Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Use a suitable tool to prevent damage to the front tweeter grille and the instrument panel.
  1. Remove the front tweeter grille.
  2. Remove the front tweeter screws (A).
  3. Pull out the front tweeter (1), then disconnect the harness connector from the front tweeter and remove.

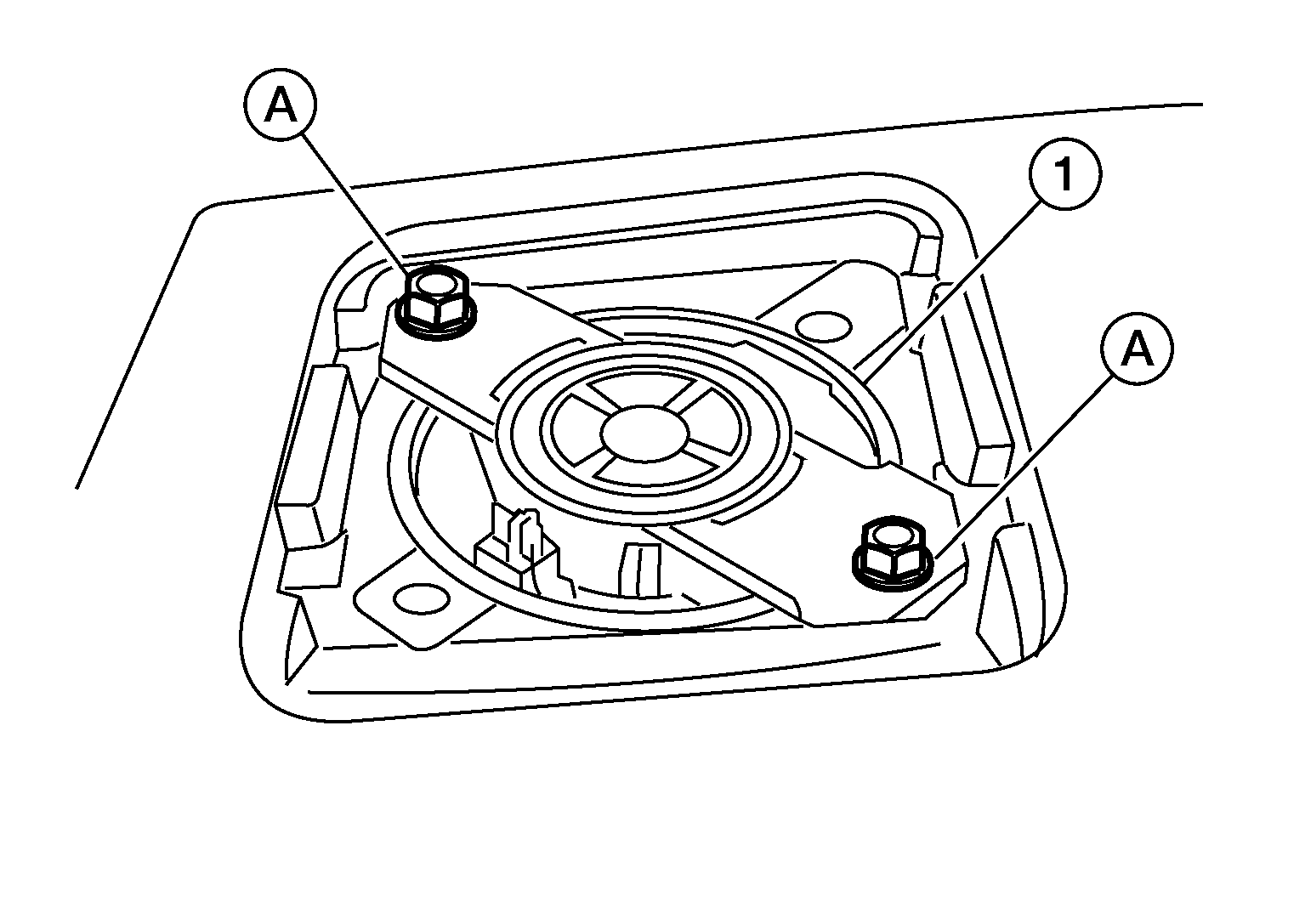

    Fig 1: Identifying Front Tweeter And Mounting Screws
    G05704060Courtesy of NISSAN NORTH AMERICA, INC.
