Glass & Window System -- M37/M56
>>
Removal And Installation
>>
Side Window Glass
>>
Exploded View
Exploded View

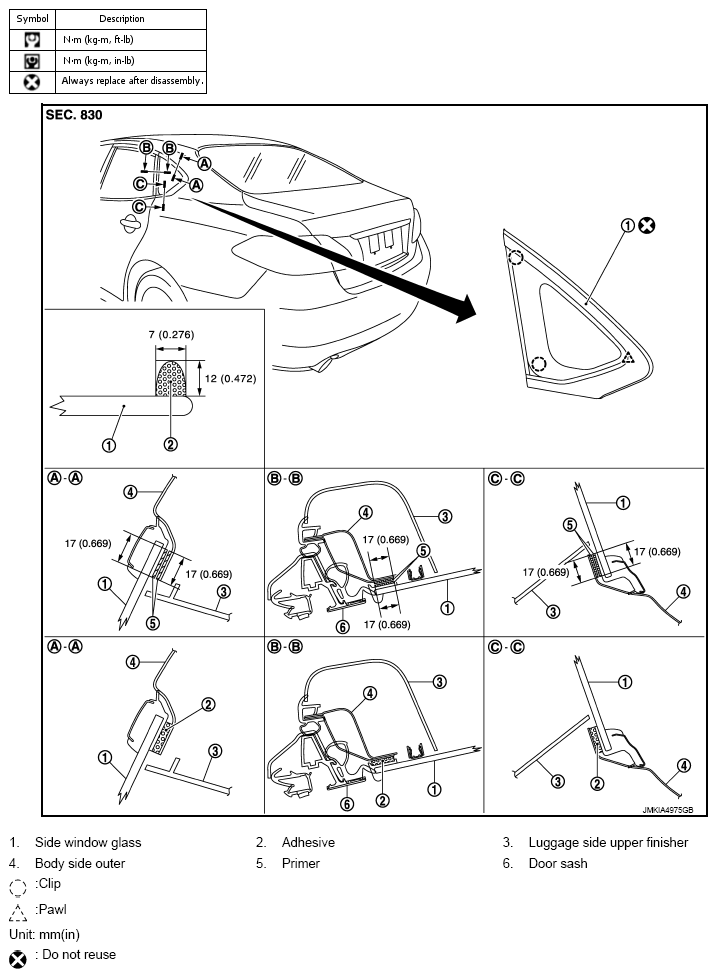

Fig 1: Exploded View Of Side Window Glass With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
