Power Steering Control System (With 4WAS) -- M37/M56
>>
[With 4WAS]
>>
System Description
>>
System
>>
4WAS System
>>
4WAS SYSTEM : Sectional View
4WAS SYSTEM : Sectional View

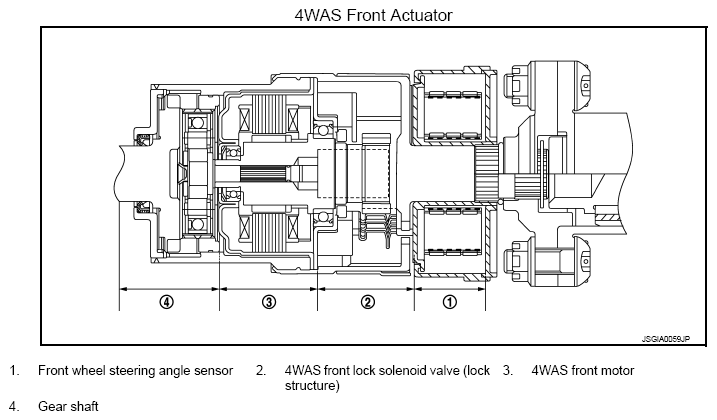

Fig 1: Sectional View Of 4WAS Front Actuator
Courtesy of NISSAN MOTOR CO., U.S.A.

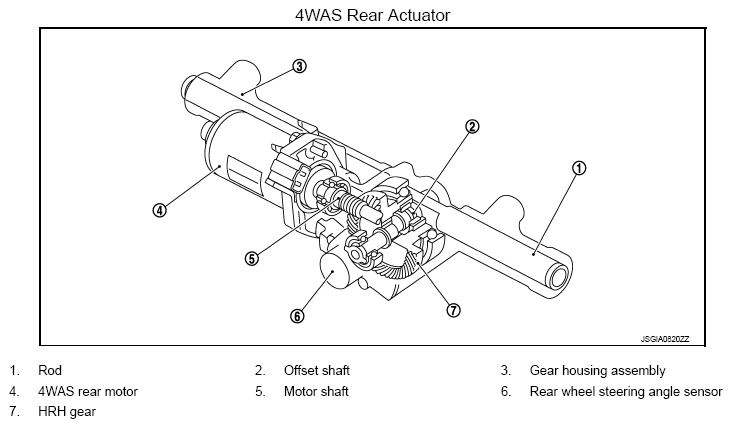

Fig 2: Identifying 4WAS Rear Actuator Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
