Brakes
>>
Traction Control
>>
Brake Control System (With VDC) -- M37/M56
>>
Removal And Installation
>>
Yaw Rate/Side/DECEL G Sensor
>>
Exploded View
Exploded View

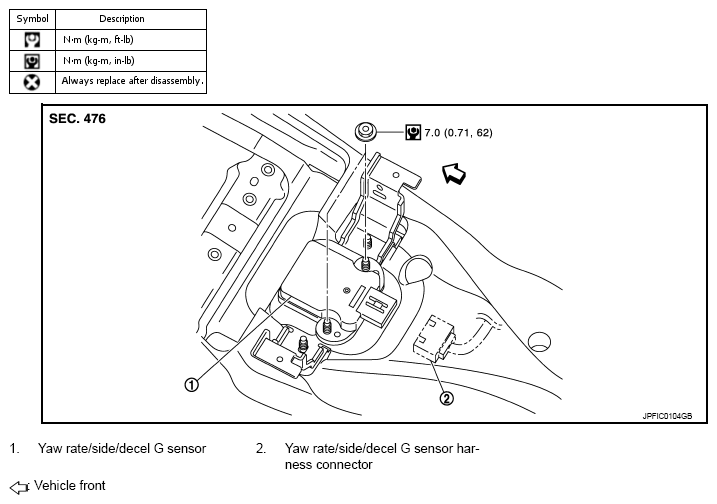

Fig 1: Yaw Rate/Side/Decel G Sensor & Harness Connector With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols in the figure.
