Drivers Assistance Systems - ADAS
>>
Driver Assistance System - Low & LDP - M37/M56
>>
[Low & LDP]
>>
System Description
>>
Diagnosis System (ADAS Control Unit)
>>
CONSULT-III Function (ICC/ADAS)
>>
Data Monitor
Data Monitor

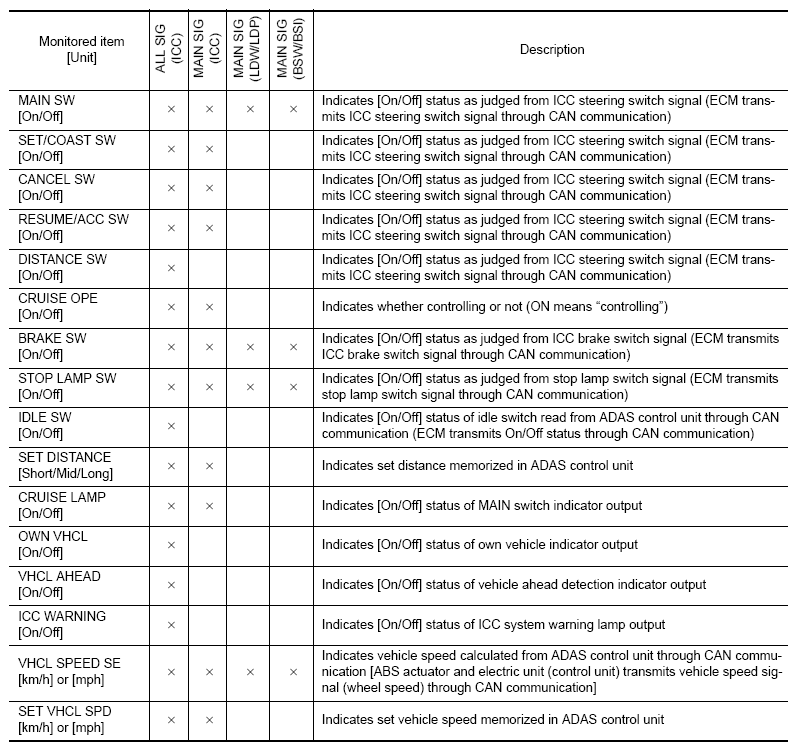

Fig 1: Data Monitor Item Description Chart (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

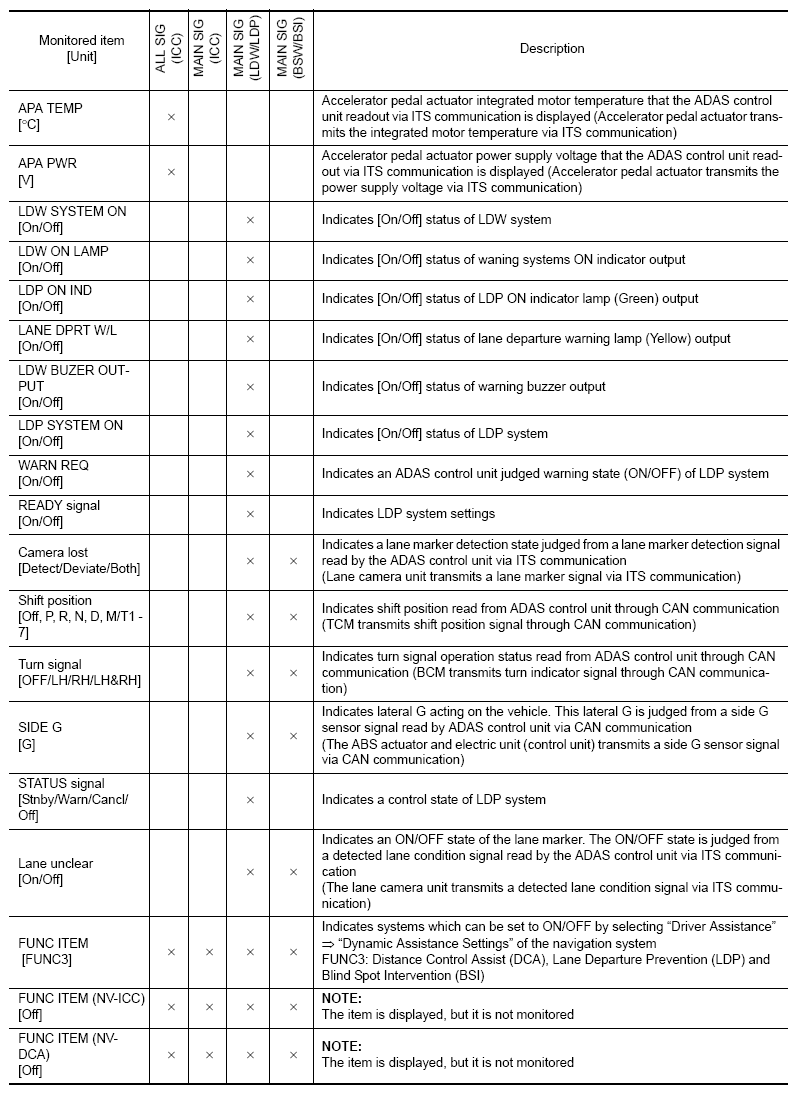

Fig 2: Data Monitor Item Description Chart (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

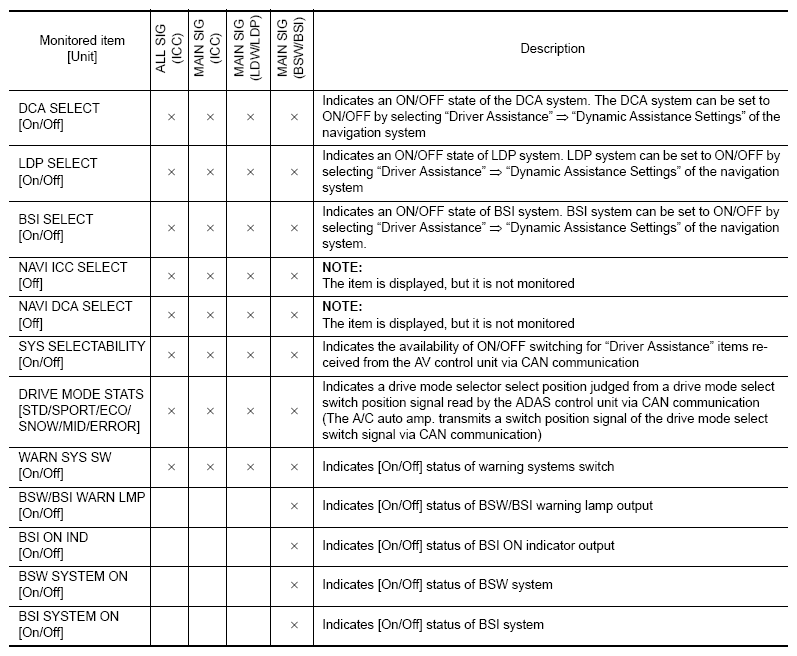

Fig 3: Data Monitor Item Description Chart (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

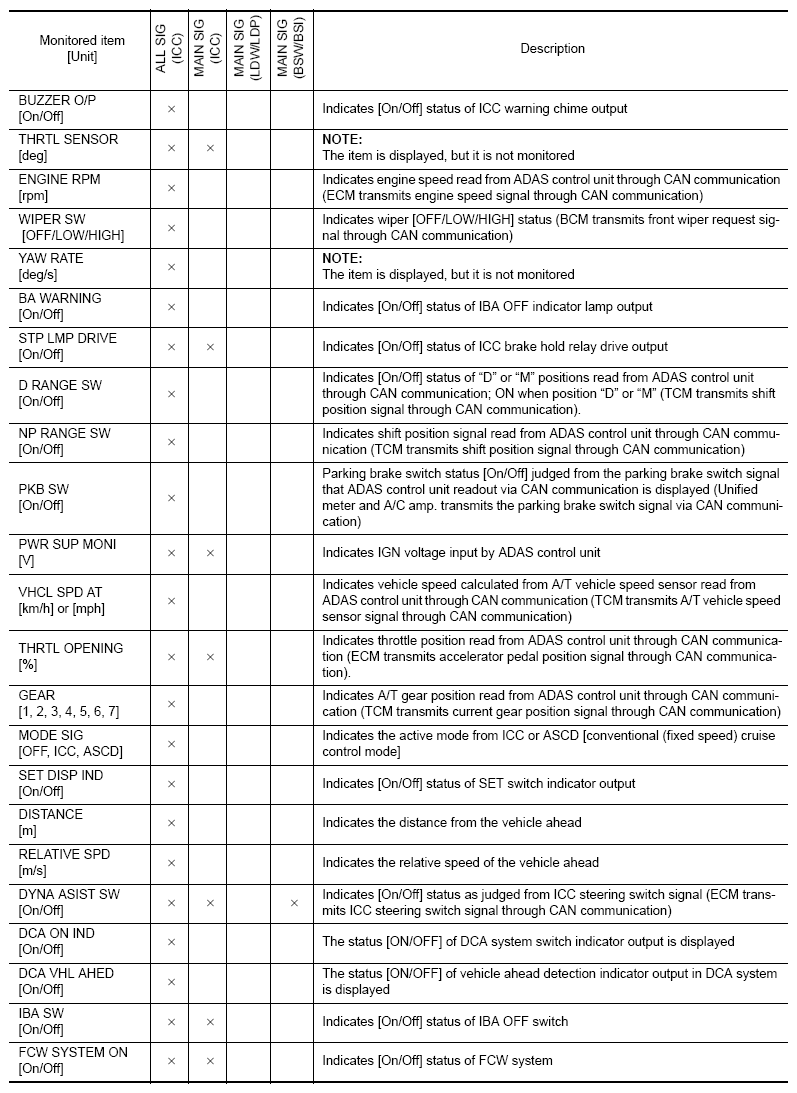

Fig 4: Data Monitor Item Description Chart (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
