System Diagram

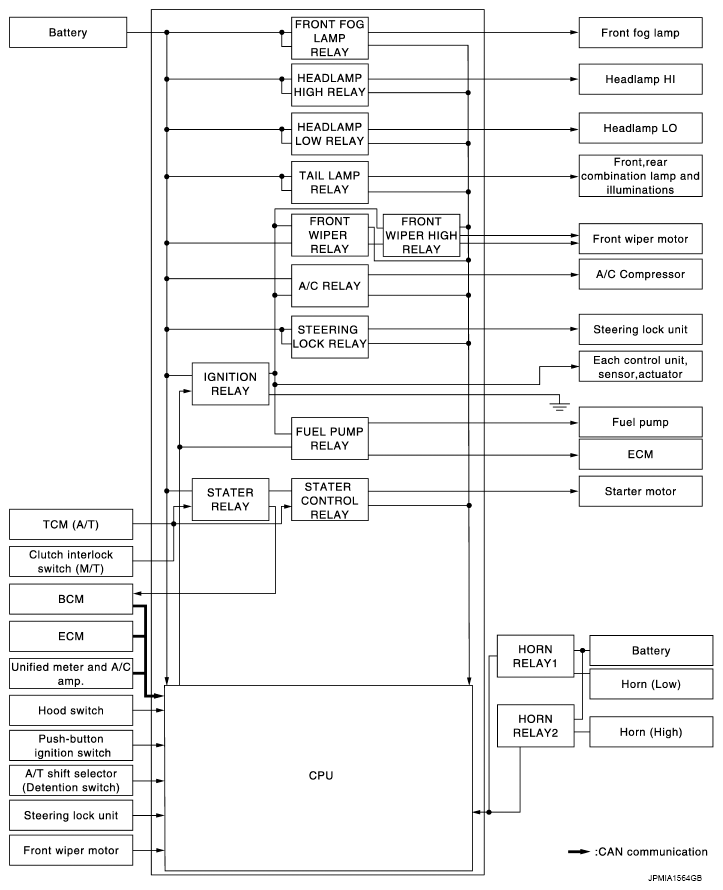

Fig 1: Relay Control System Diagram
G07158908Courtesy of NISSAN NORTH AMERICA, INC.
NOTE: Steering lock relay and steering lock unit, as shown in the system diagram, are for models with steering lock unit only.
