How To Erase Permanent DTC: Description: Outline: Notes

When a DTC is stored in ECM

When a DTC is stored in ECM and MIL is ON, a permanent DTC is erased with MIL shutoff if the same malfunction is not detected after performing the driving pattern for MIL shutoff three times in a raw.

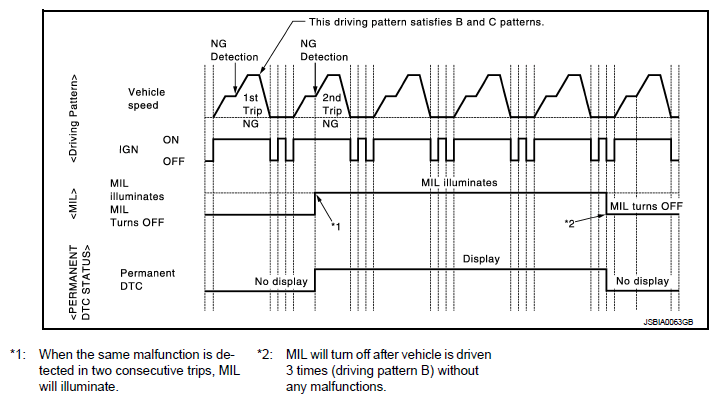

Fig 1: Permanent DTC Status And MIL Driving Pattern
G07168634Courtesy of NISSAN MOTOR CO., U.S.A.
