7AT: Re7R01A
>>
Unit Removal And Installation
>>
Transmission Assembly
>>
Exploded View
Exploded View

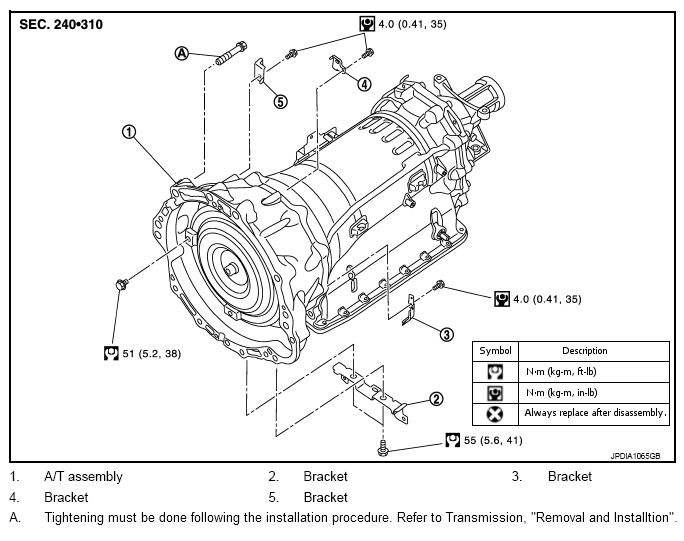

Fig 1: Exploded View Of Transmission Assembly With Torque Specifications
Refer to "
COMPONENTS
" for symbols in the figure.
