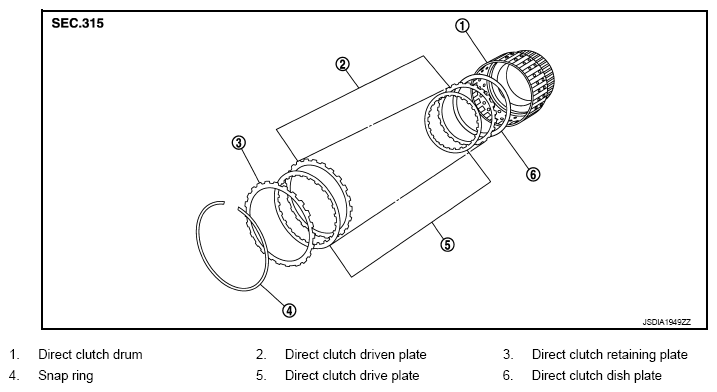

Home >> Infiniti >> 2011 >> G37 Base, 2D Convertible >> Repair and Diagnosis >> Transmission >> Automatic Transmission -- G37 Convertible >> 7AT: Re7R01A >> Unit Disassembly And Assembly >> Direct Clutch >> Exploded View
