Automatic Transmission -- G37 Convertible
>>
7AT: Re7R01A
>>
Removal And Installation
>>
Output Speed Sensor
>>
Exploded View
Exploded View

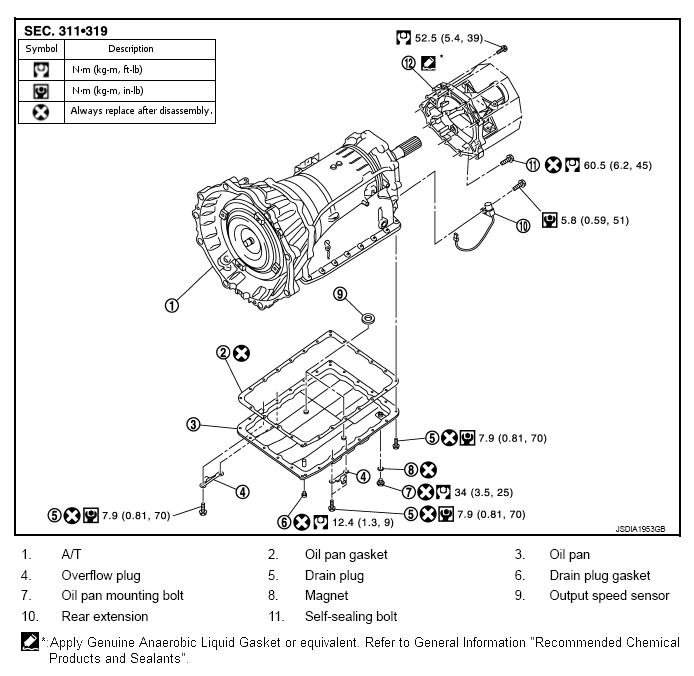

Fig 1: Exploded View Of Output Speed Sensor With Torque Specifications
Refer to "
COMPONENTS
" for symbols not described on the above.
