Power Steering System -- G37 Convertible
>>
Removal And Installation
>>
Steering Wheel
>>
Exploded View
Exploded View

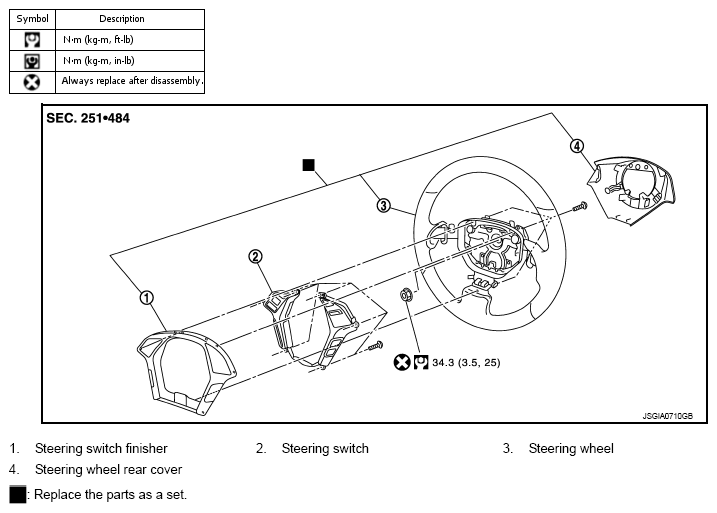

Fig 1: Exploded View Of Steering Wheel With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols in the figure.
