Component Parts Location

WARNING: This page is about a different variant/trim than selected.

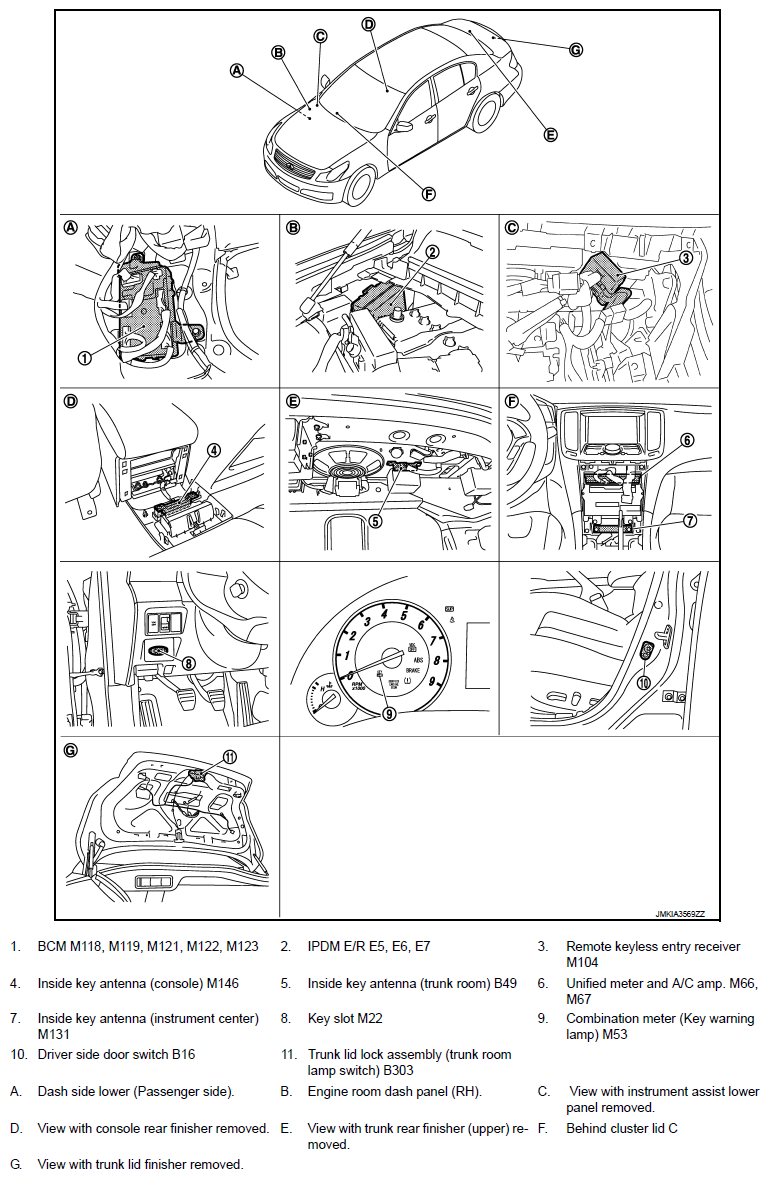

Fig 1: Identifying Vehicle Security System Components Location (1 Of 2)
G07015316Courtesy of NISSAN MOTOR CO., U.S.A.

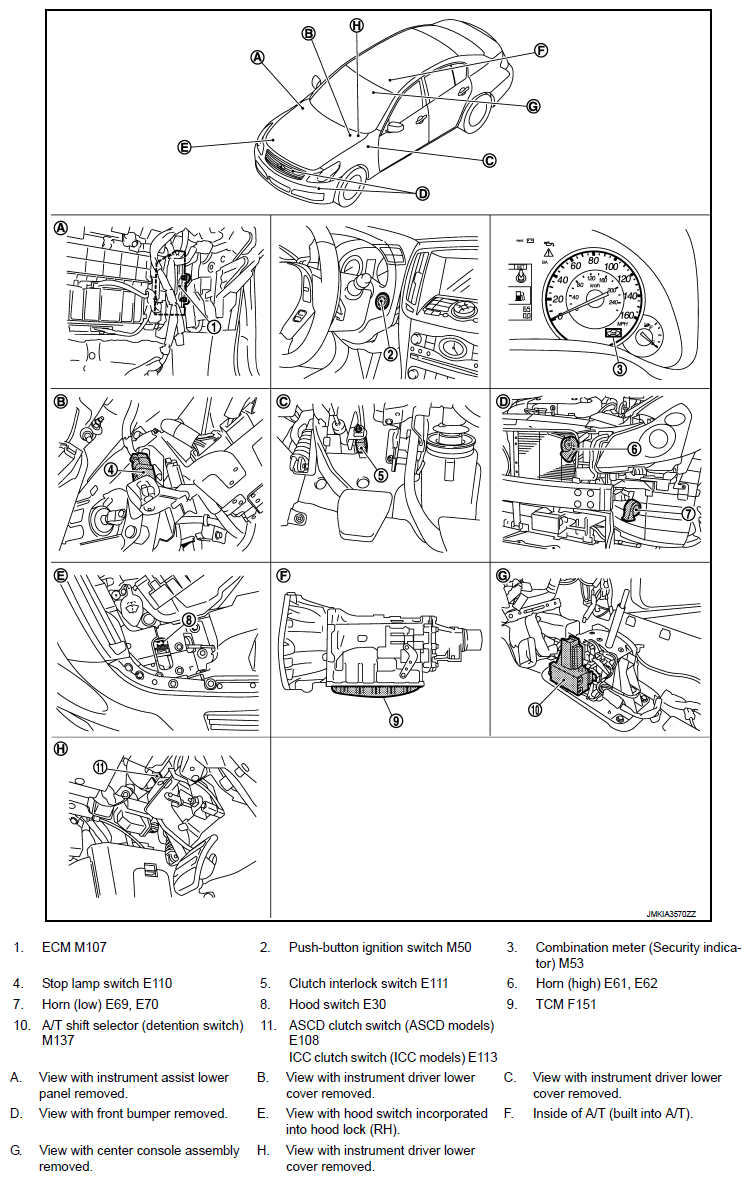

Fig 2: Identifying Vehicle Security System Components Location (2 Of 2)
G07015317Courtesy of NISSAN MOTOR CO., U.S.A.
