Component Parts Location

WARNING: This page is about a different variant/trim than selected.

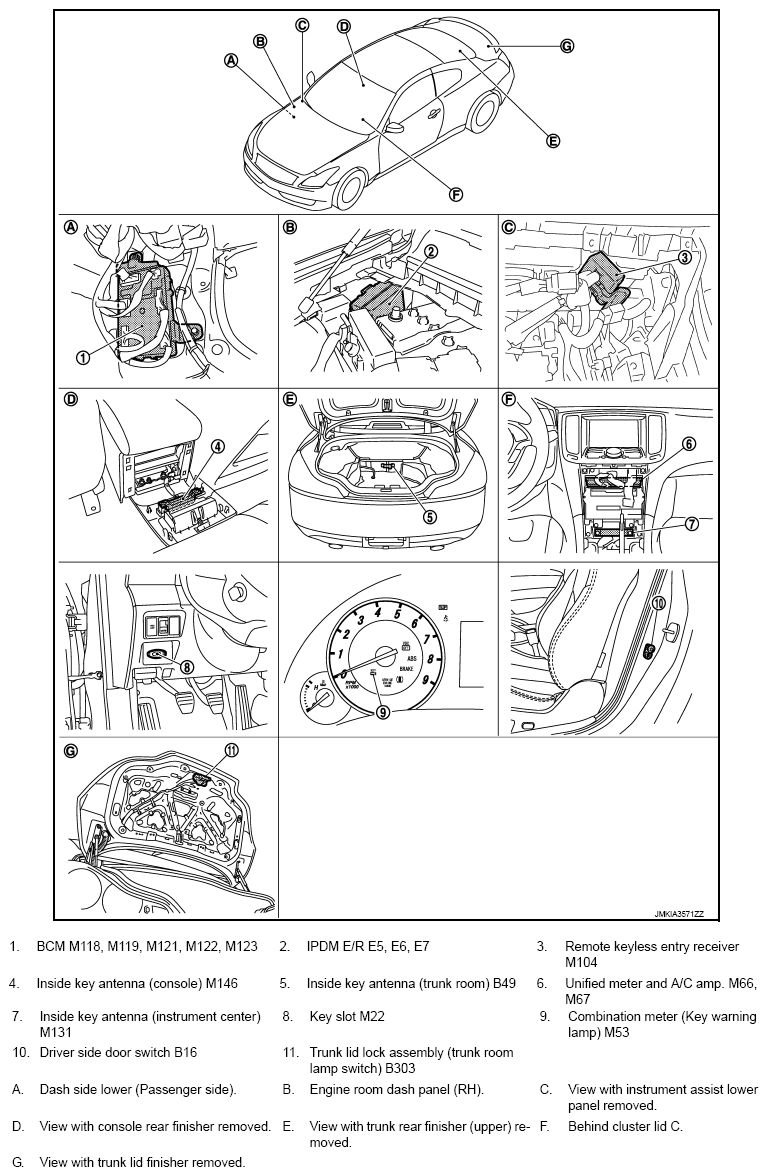

Fig 1: Location Of Intelligent Key System/Engine Start Function Components (1 Of 2)
G07169614Courtesy of NISSAN MOTOR CO., U.S.A.

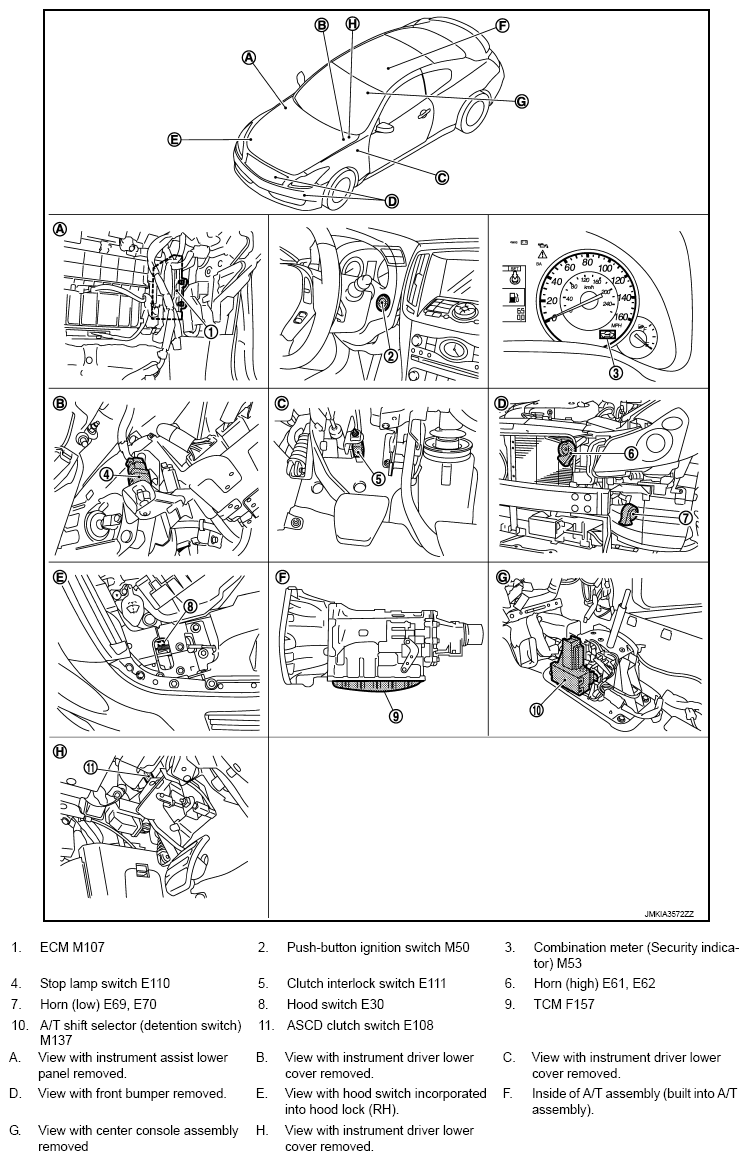

Fig 2: Location Of Intelligent Key System/Engine Start Function Components (2 Of 2)
G07169615Courtesy of NISSAN MOTOR CO., U.S.A.
