Wiring Diagram - ENGINE CONTROL SYSTEM -

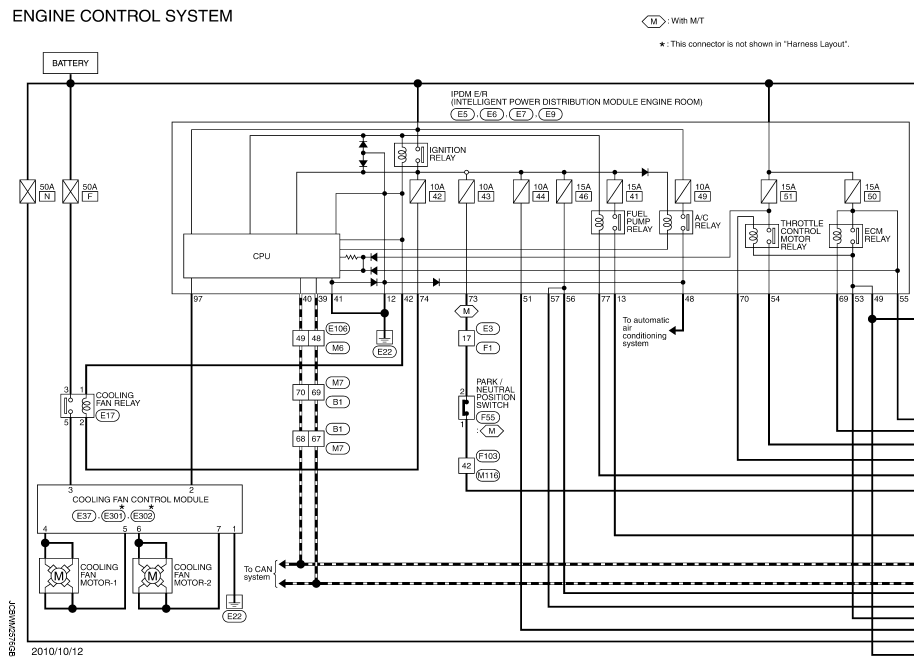

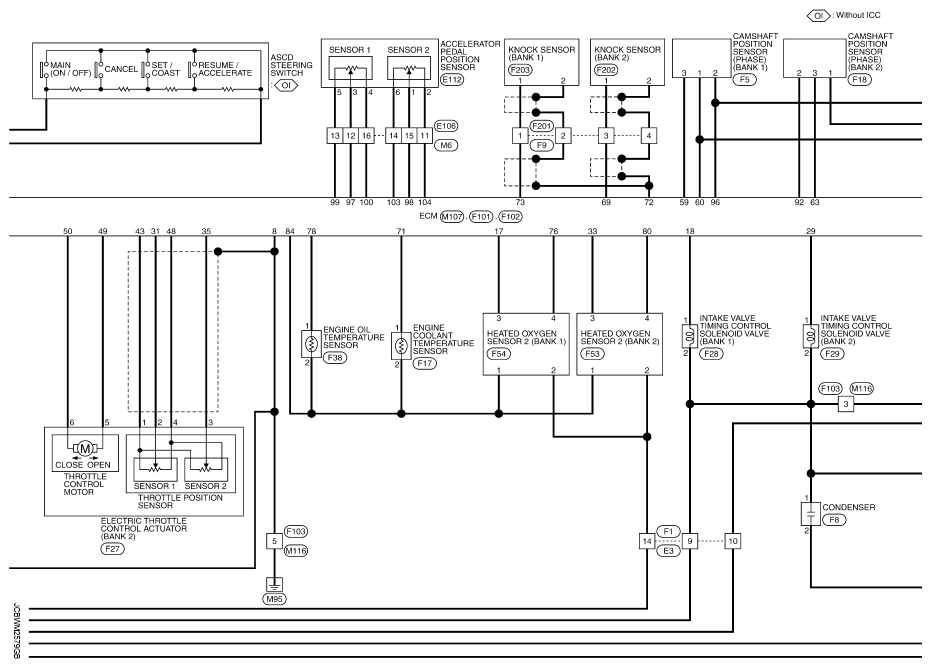

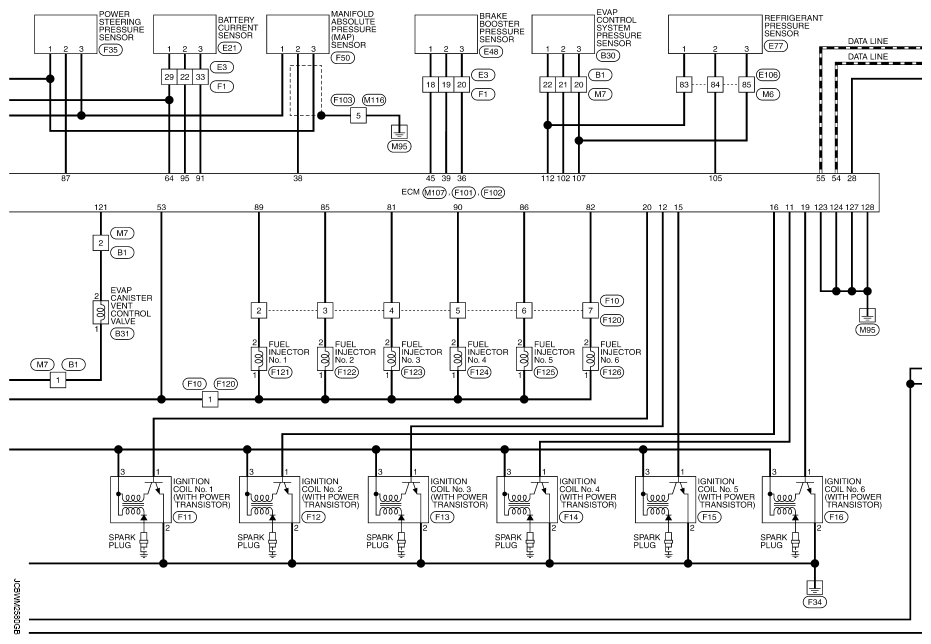

Fig 1: Engine Control System - Wiring Diagram (1 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

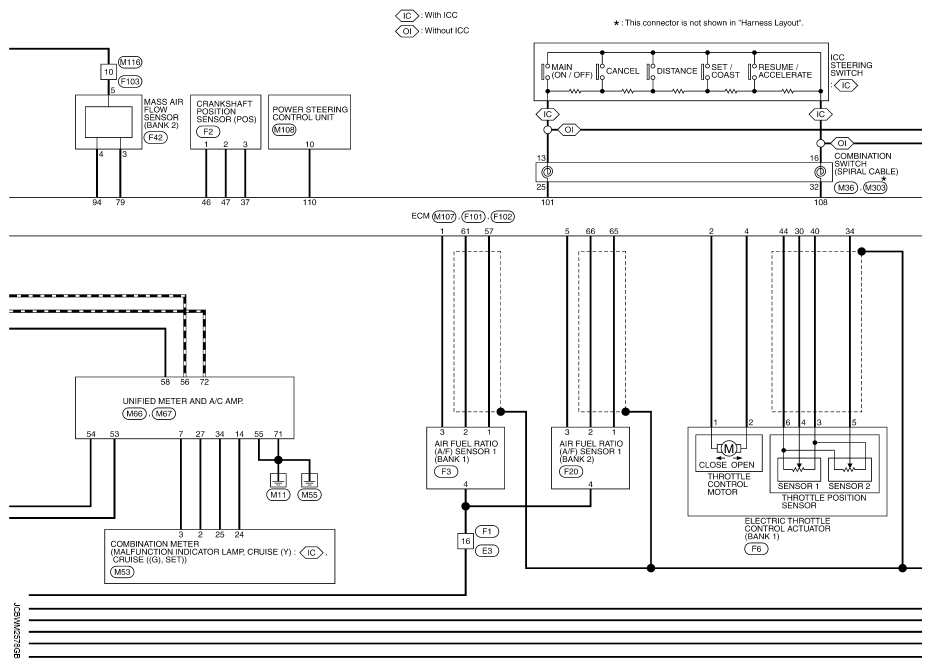

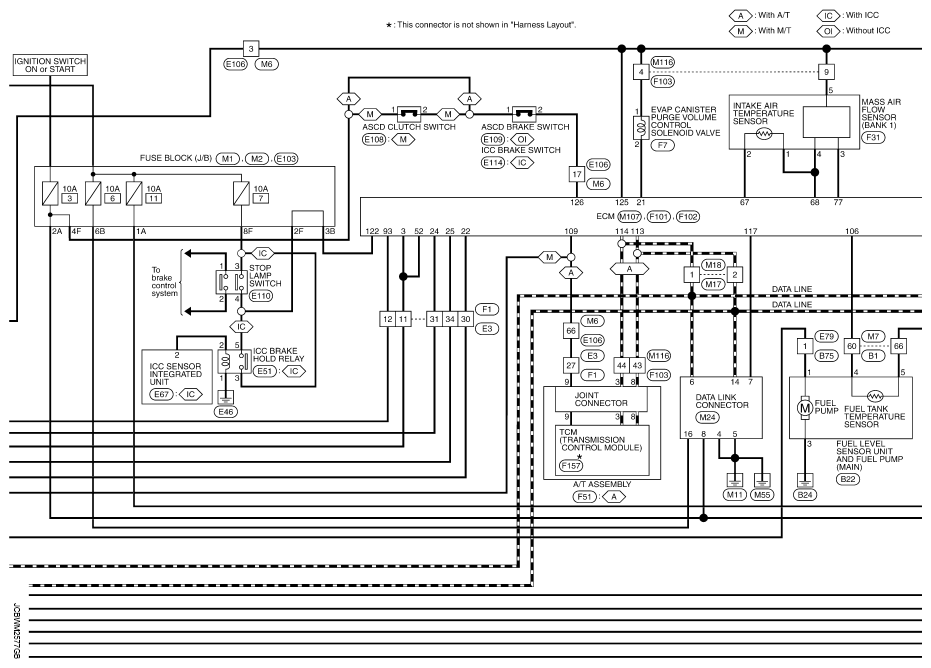

Fig 2: Engine Control System - Wiring Diagram (2 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Engine Control System - Wiring Diagram (3 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

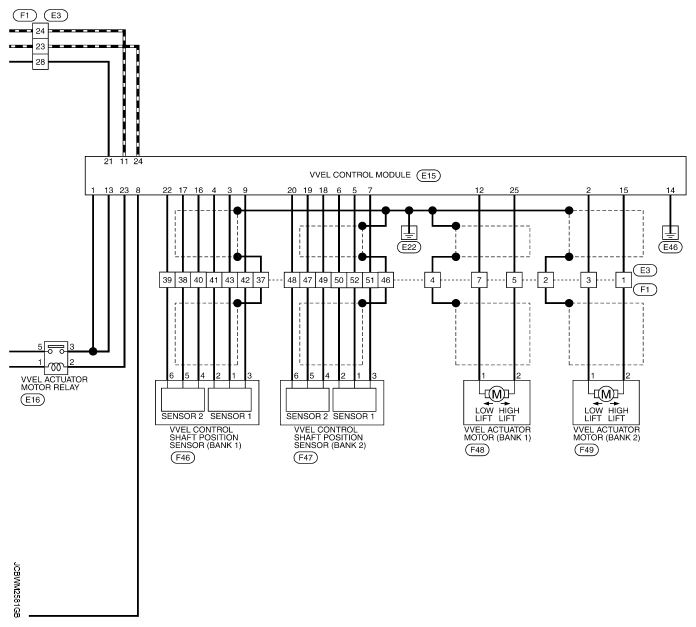

Fig 4: Engine Control System - Wiring Diagram (4 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Engine Control System - Wiring Diagram (5 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Engine Control System - Wiring Diagram (6 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

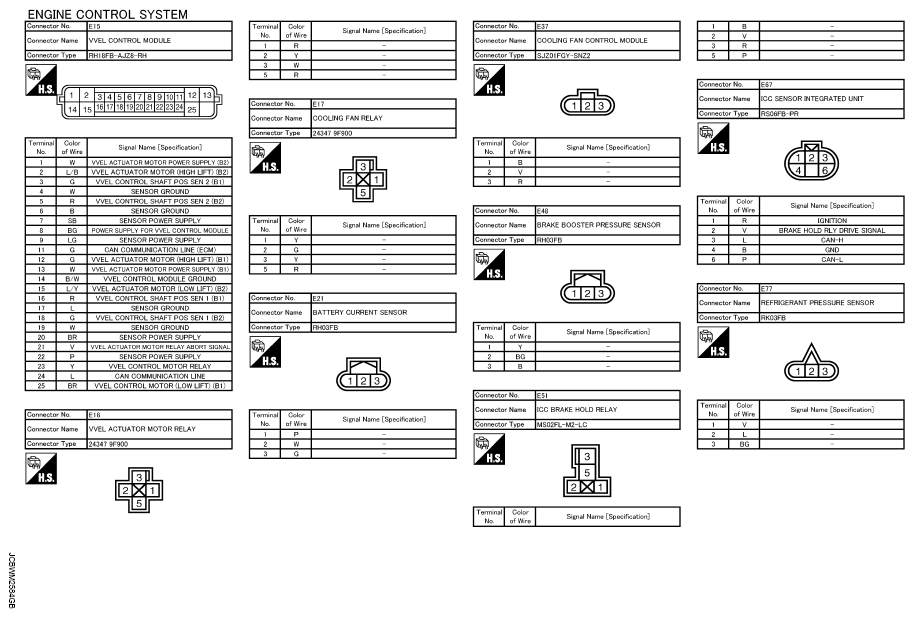

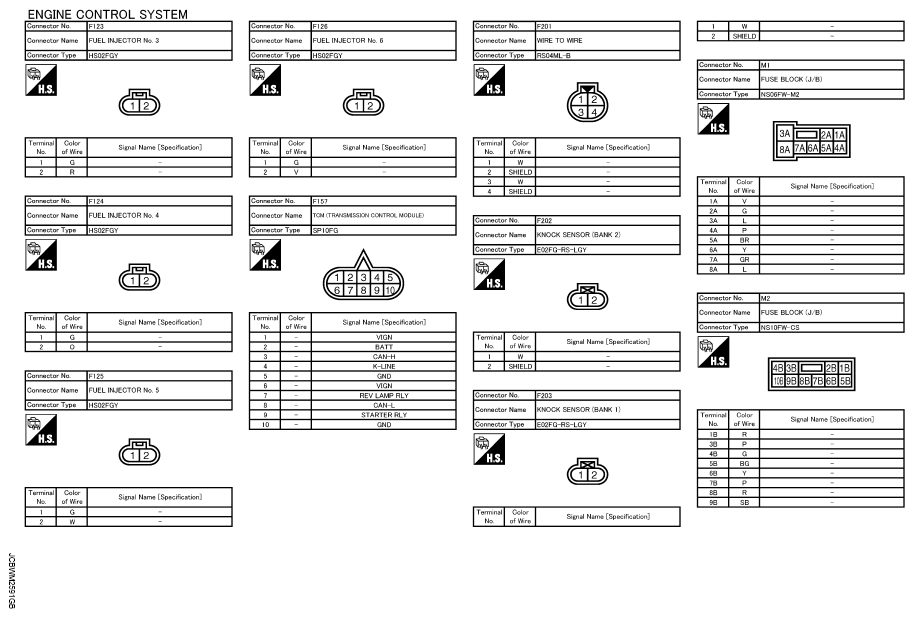

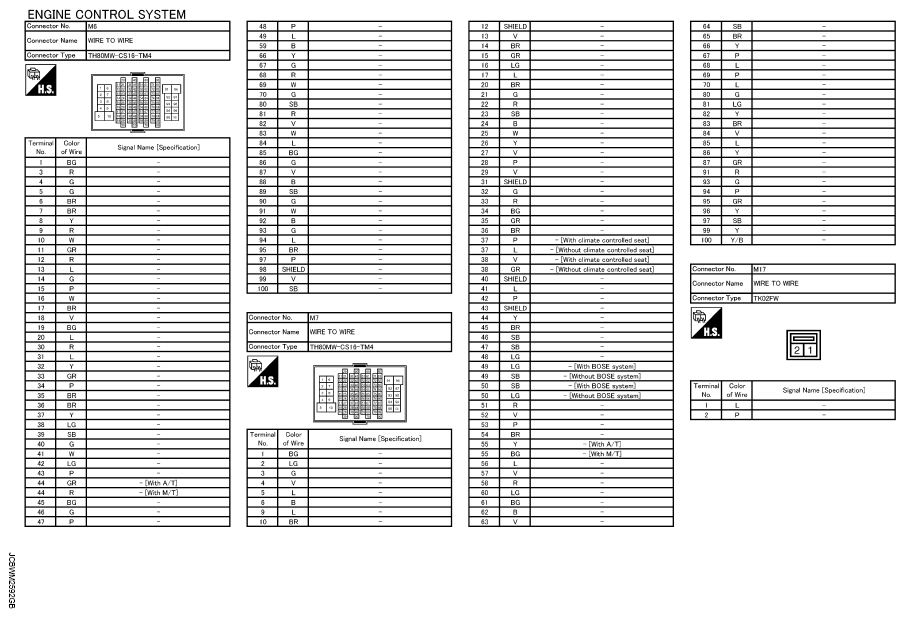

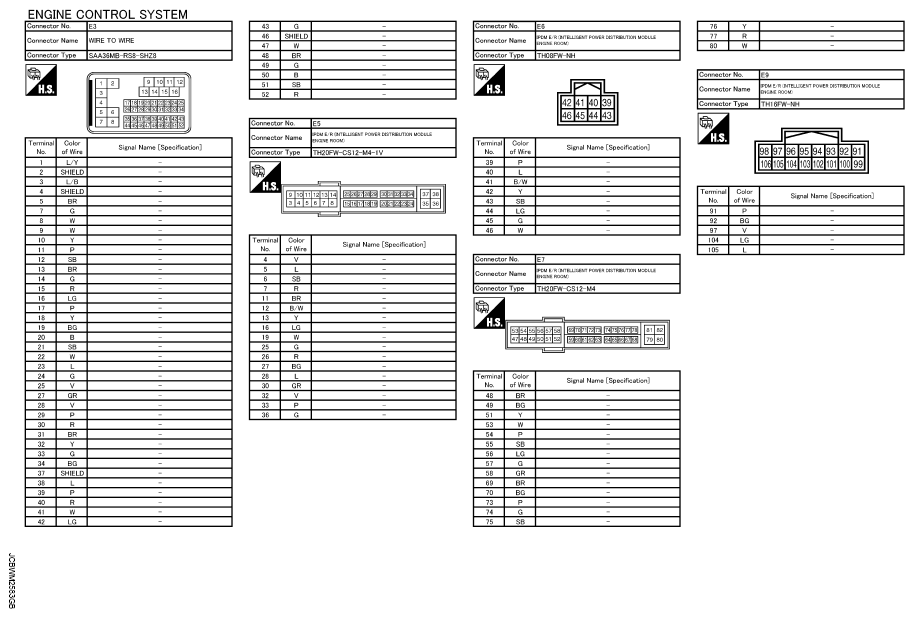

Fig 7: Engine Control System Connector End Views (1 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

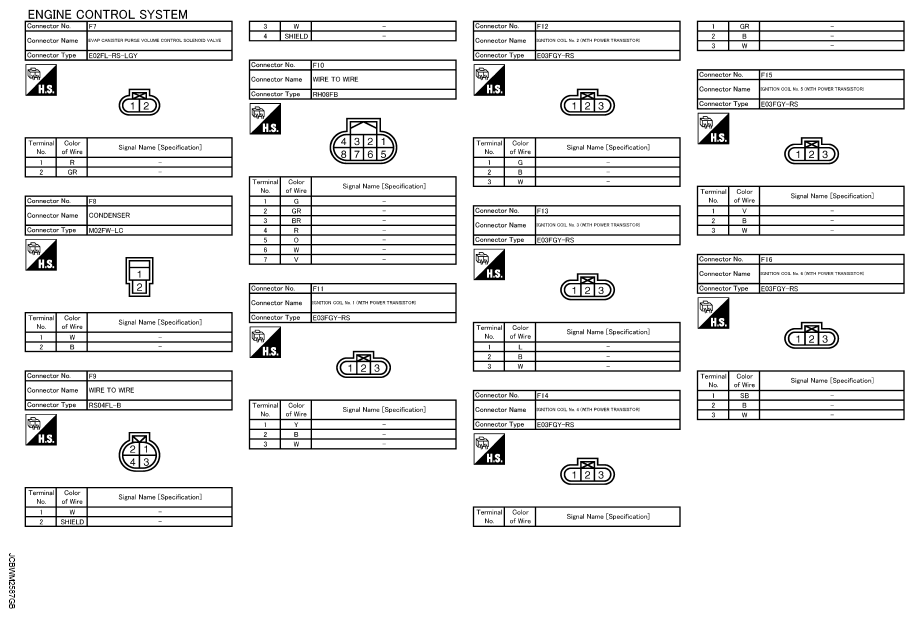

Fig 8: Engine Control System Connector End Views (2 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

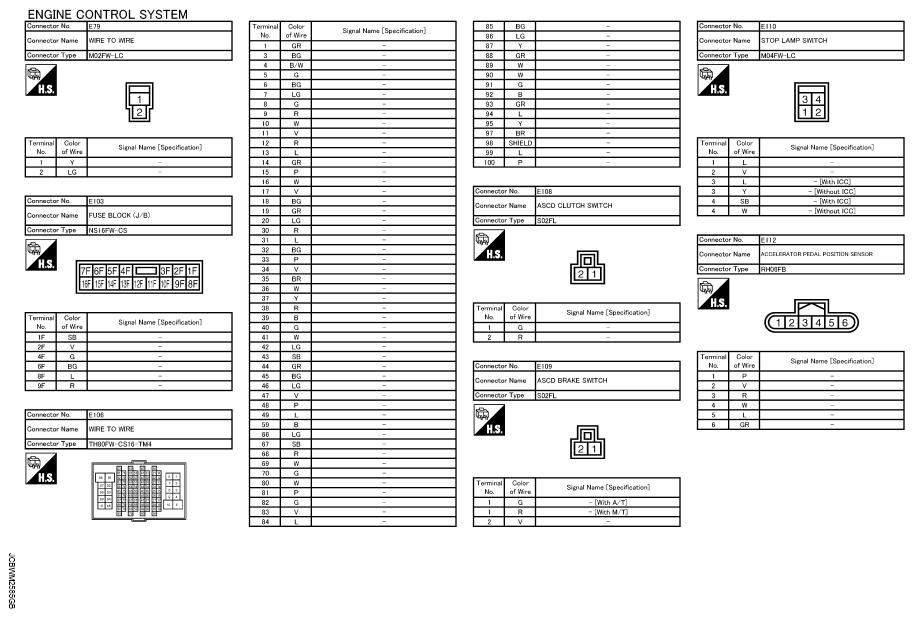

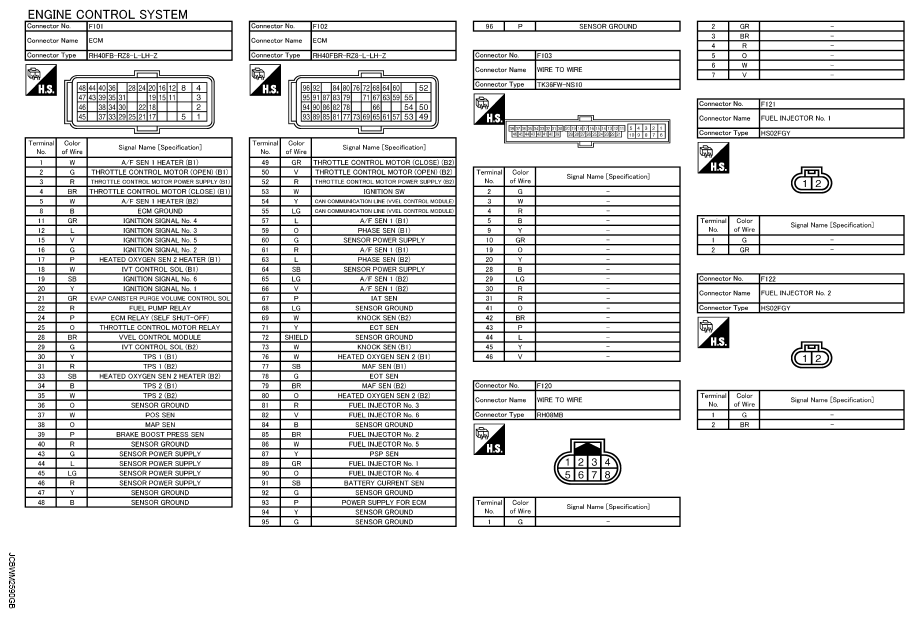

Fig 9: Engine Control System Connector End Views (3 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

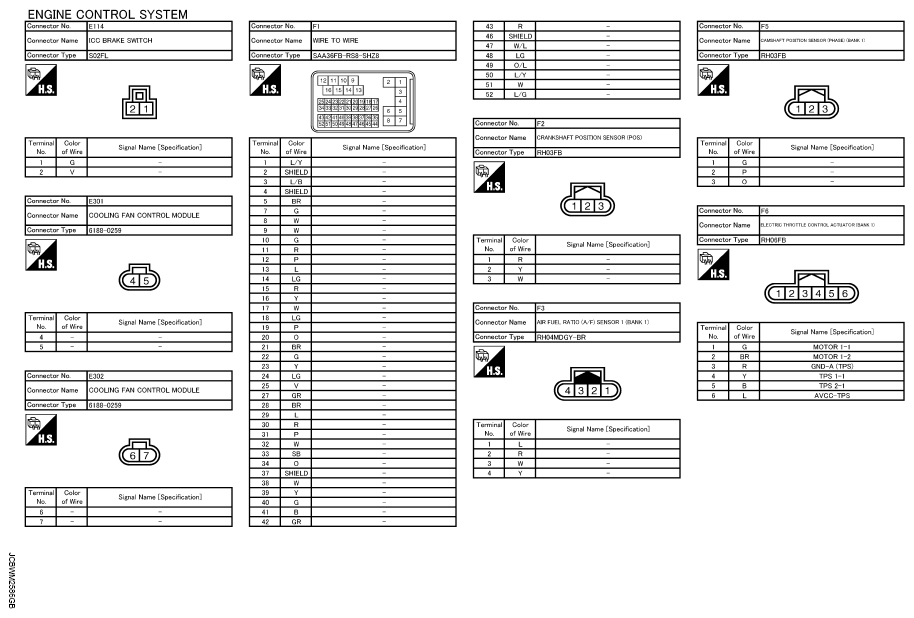

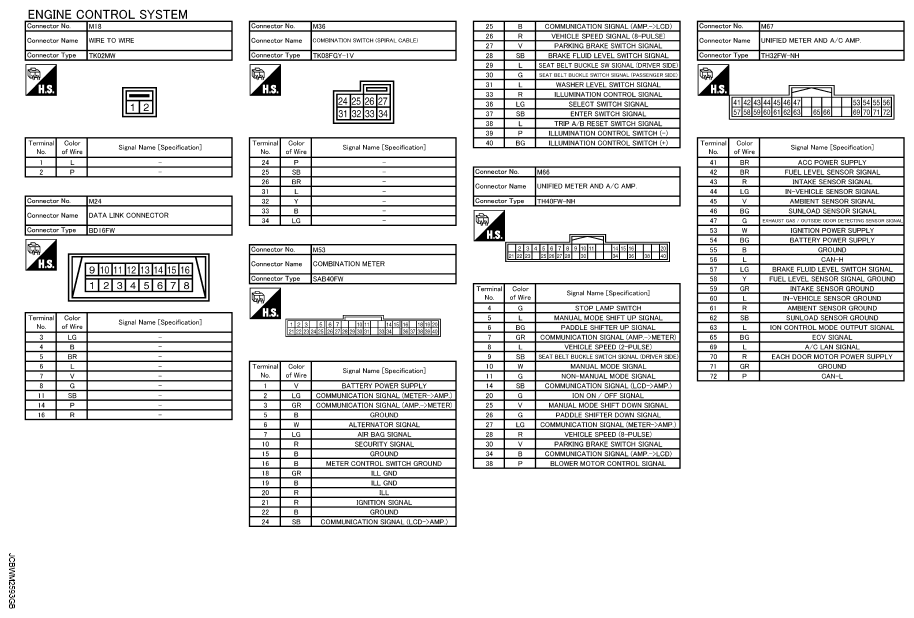

Fig 10: Engine Control System Connector End Views (4 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

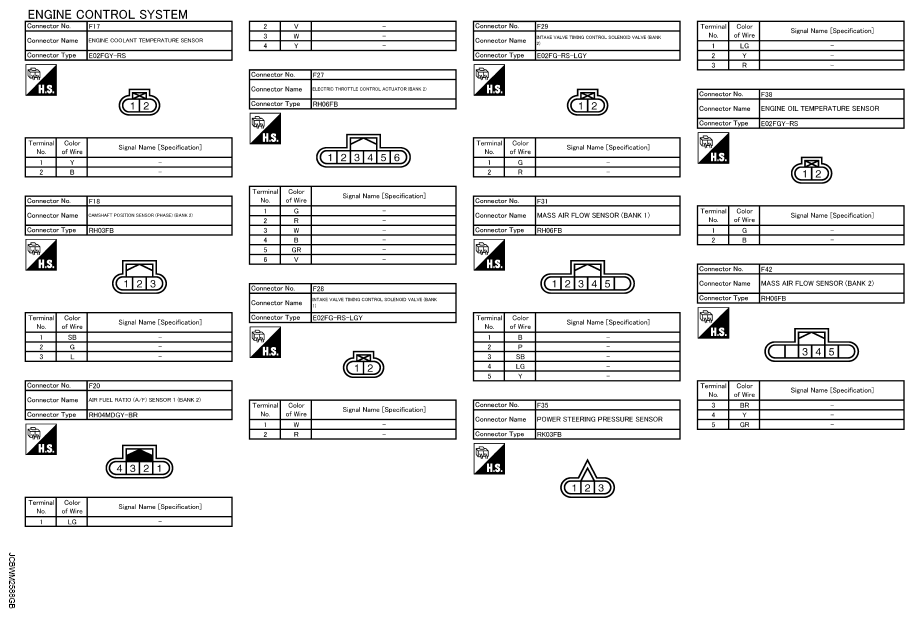

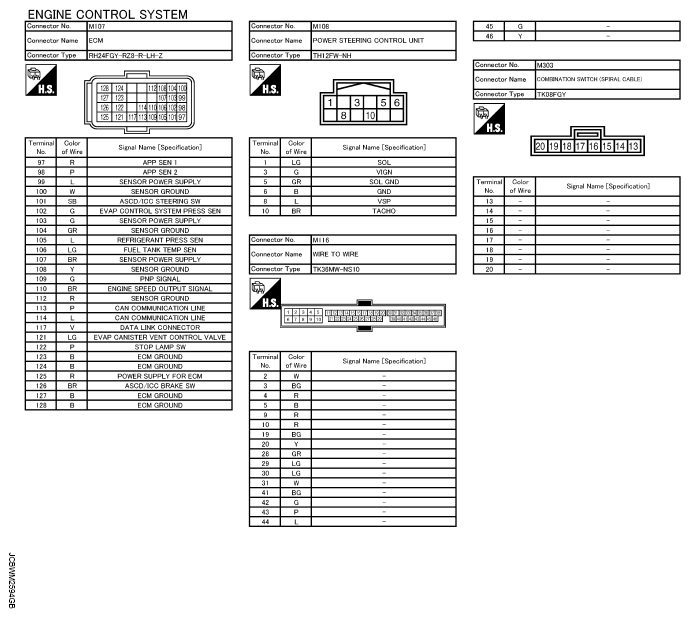

Fig 11: Engine Control System Connector End Views (5 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

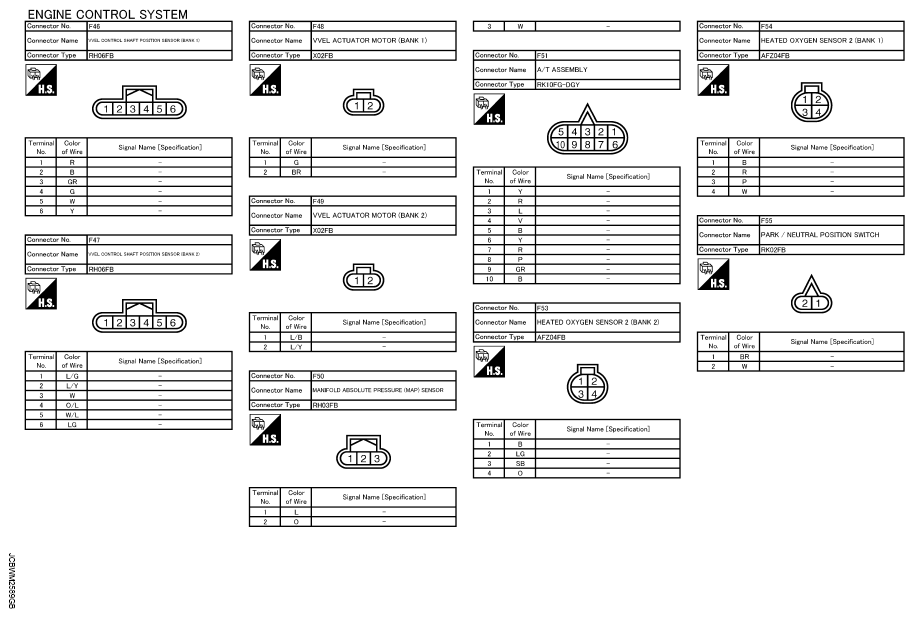

Fig 12: Engine Control System Connector End Views (6 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

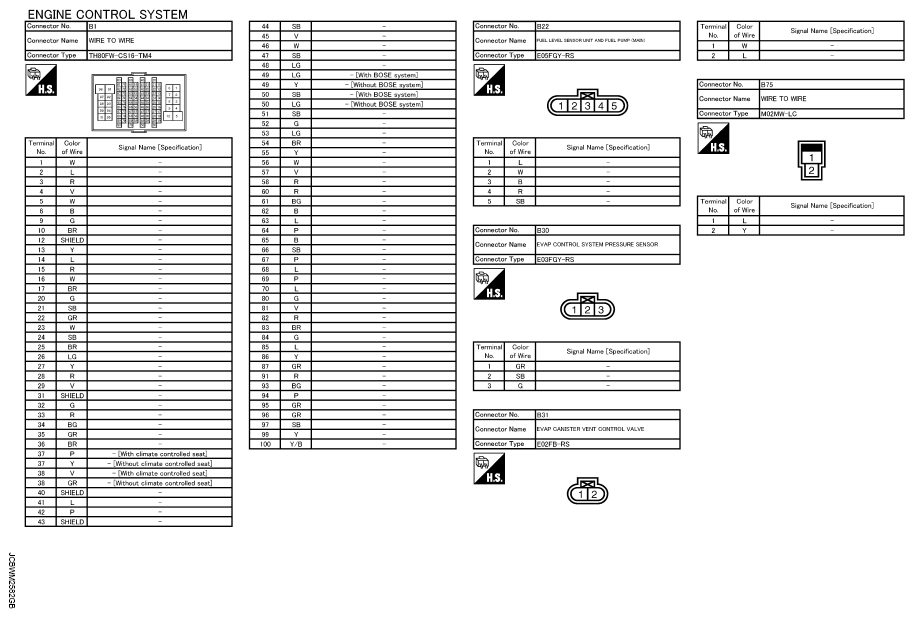

Fig 13: Engine Control System Connector End Views (7 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Engine Control System Connector End Views (8 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Engine Control System Connector End Views (9 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Engine Control System Connector End Views (10 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Engine Control System Connector End Views (11 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 18: Engine Control System Connector End Views (12 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Engine Control System Connector End Views (13 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.
