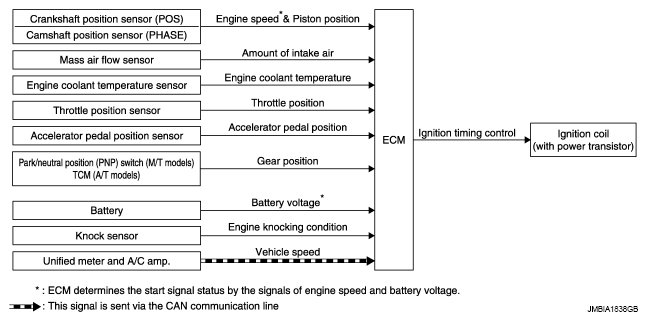

Home >> Infiniti >> 2011 >> G37 Base, 2D Convertible >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - G37 Convertible - Introduction (1 Of 2) >> System Description >> Electric Ignition System >> System Diagram
