Engine Lubrication System

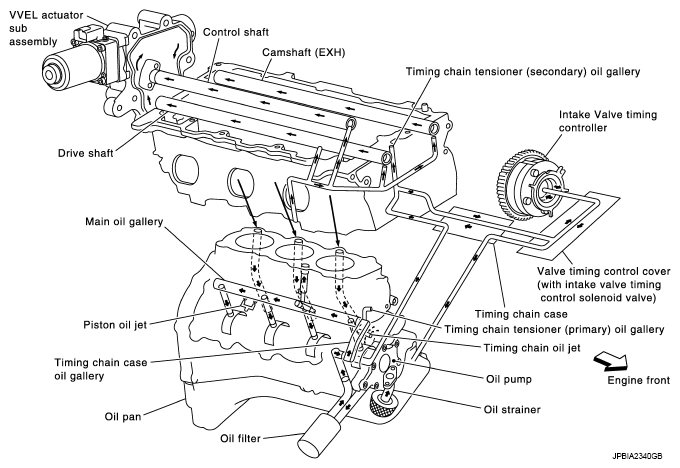

Fig 1: Engine Lubrication System Flow Diagram
G07156484Courtesy of NISSAN MOTOR CO., U.S.A.
