Trunk Closure Control Unit Connector End View (B363)

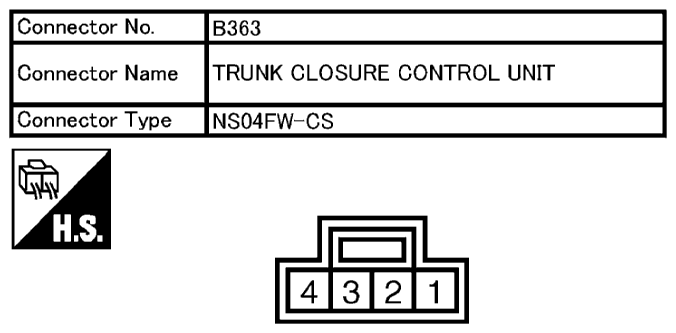

Fig 1: Trunk Closure Control Unit Connector End View (B363)

G10698171

Courtesy of NISSAN NORTH AMERICA, INC.
