Occupant Classification System Control Unit Connector End View (B214)

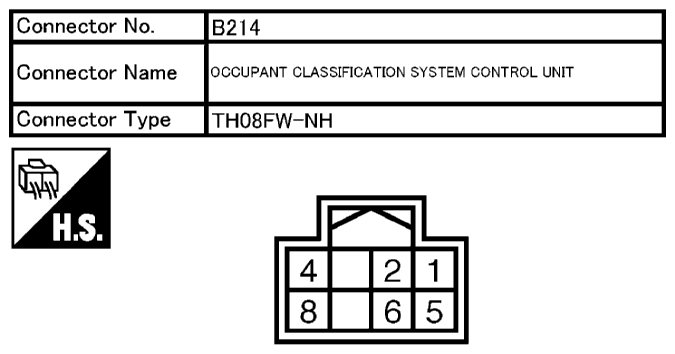

Fig 1: Occupant Classification System Control Unit Connector End View (B214)

G10697755

Courtesy of NISSAN NORTH AMERICA, INC.
