Display Unit Connector End View (M75)

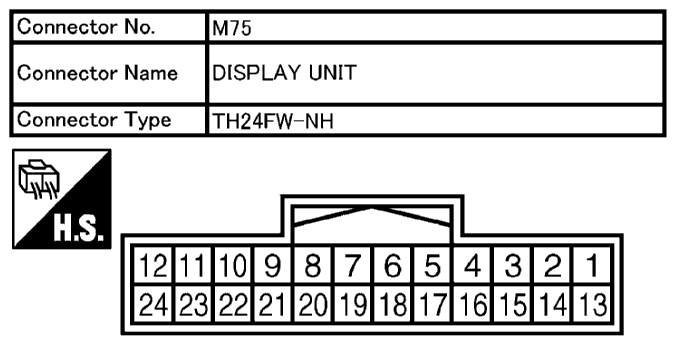

Fig 1: Display Unit Connector End View (M75)

G10698987

Courtesy of NISSAN NORTH AMERICA, INC.
