Component Parts Location

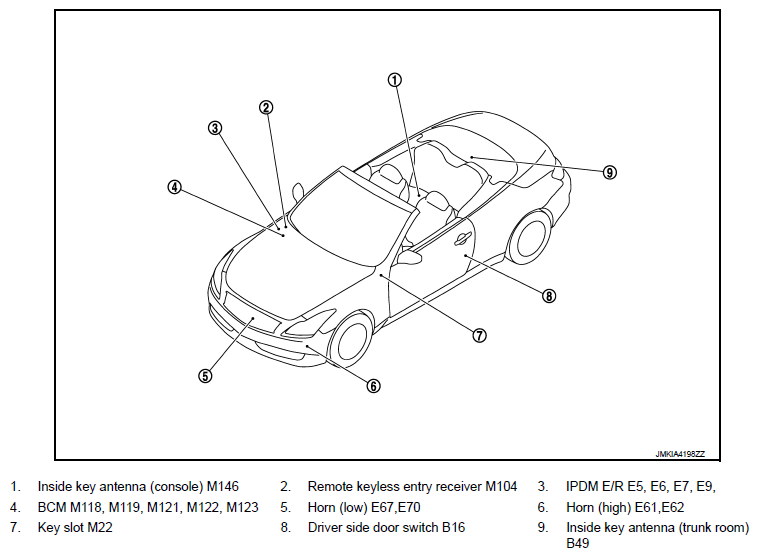

Fig 1: Identifying Vehicle Security System Component Parts Location (1 Of 2)
G07158630Courtesy of NISSAN MOTOR CO., U.S.A.

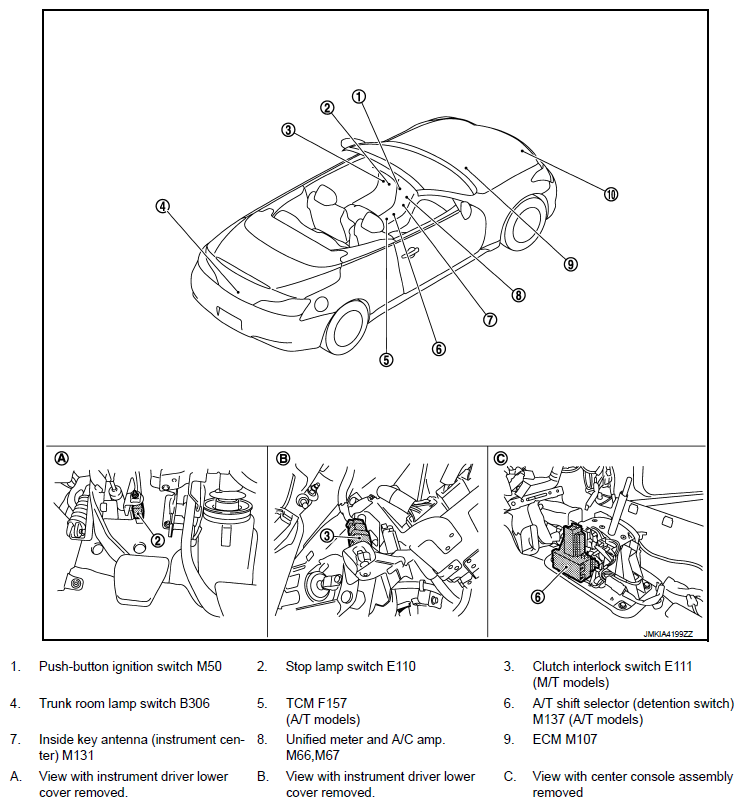

Fig 2: Identifying Vehicle Security System Component Parts Location (2 Of 2)
G07158631Courtesy of NISSAN MOTOR CO., U.S.A.
