A/T MODELS : Exploded View

WARNING: This page is about a different car, the 2010 Infiniti G37. However, it is still accessible from the selected car via links, so may be relevant.

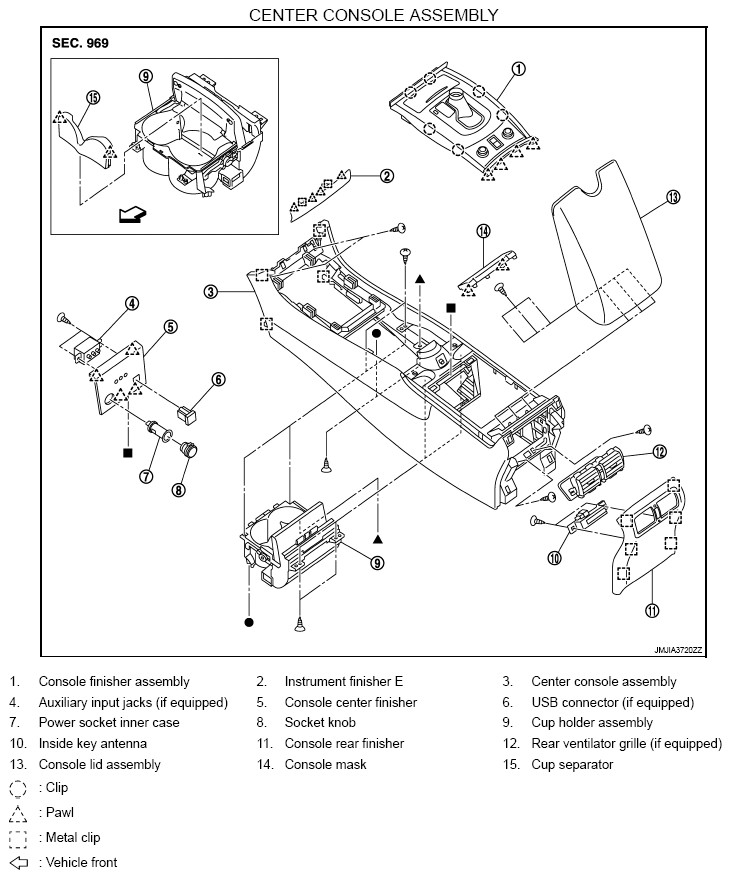

Fig 1: Exploded View Of Center Console Assembly - A/T Models

Courtesy of NISSAN MOTOR CO., U.S.A.

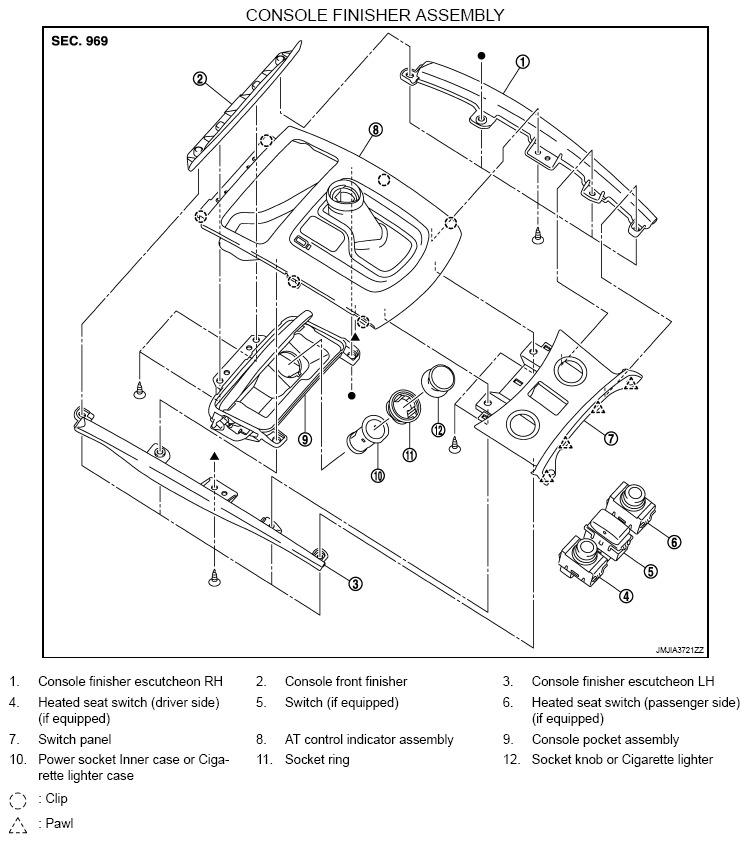

Fig 2: Exploded View Of Console Finisher Assembly - A/T Models

Courtesy of NISSAN MOTOR CO., U.S.A.
