Exploded View

WARNING: This page is about a different car, the 2010 Infiniti G37. However, it is still accessible from the selected car via links, so may be relevant.

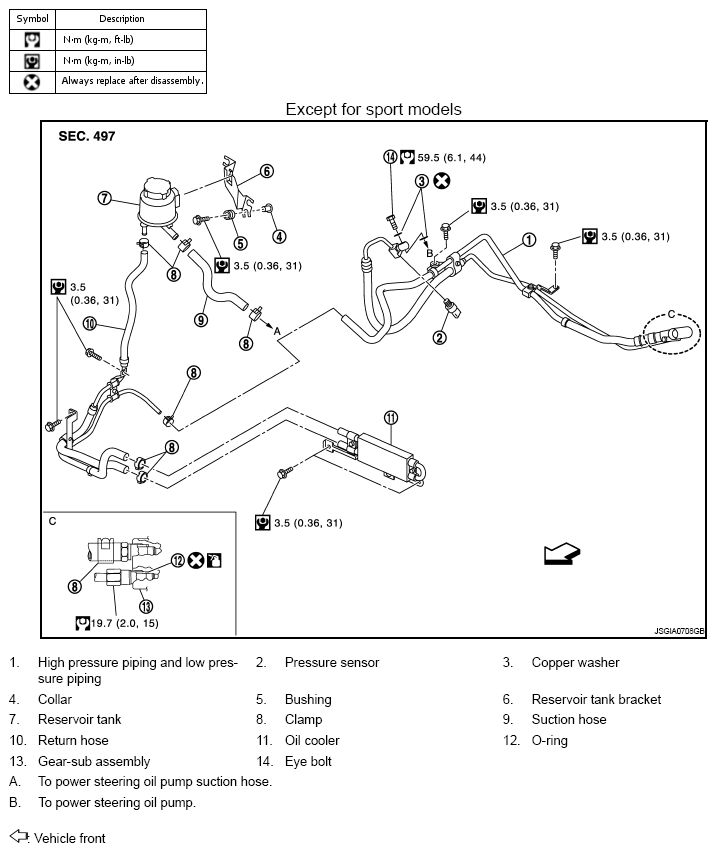

Fig 1: Exploded View Of Hydraulic Line With Torque Specifications - Except For Sport Models

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.

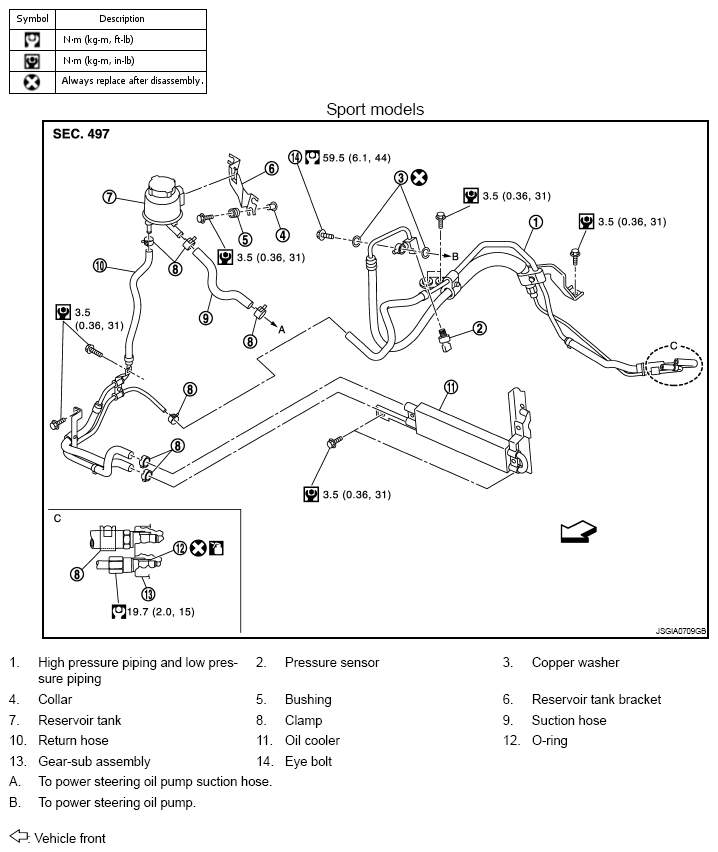

Fig 2: Exploded View Of Hydraulic Line With Torque Specifications - Sport Models

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.
