Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Infiniti G37. However, it is still accessible from the selected car via links, so may be relevant.

Remove cluster lid C. Refer to "A/T MODELS : EXPLODED VIEW " (A/T models) or "M/T MODELS : EXPLODED VIEW " (M/T models).
Remove preset switch (2) from cluster lid C. Remove preset switch screws (A), (B) and (C), remove preset switch (2) from cluster lid C.

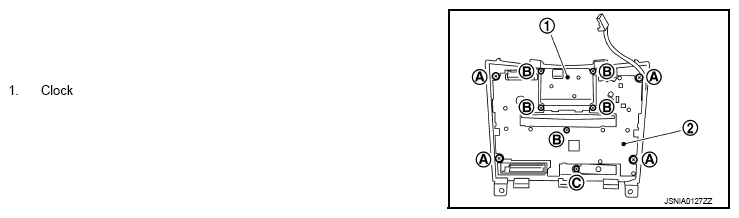

Fig 1: Locating Preset Switch And Screws
Courtesy of NISSAN MOTOR CO., U.S.A.
