Removal and Installation: Installation

WARNING: This page is about a different car, the 2011 Infiniti G37. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.

CAUTION:
  • Since AV control unit connector and unified meter and A/C amp. connector have the same form, be careful not to insert them wrongly.
  • Be sure to perform "WRITE CONFIGURATION" when replacing AV control unit. For details, refer to "WORK PROCEDURE "
  • Install AV control unit between connector (1) and connector (2) with the ferrite core (USB) orientated sideways to the vehicle. Incorrect installation may cause damage to the AV control unit.

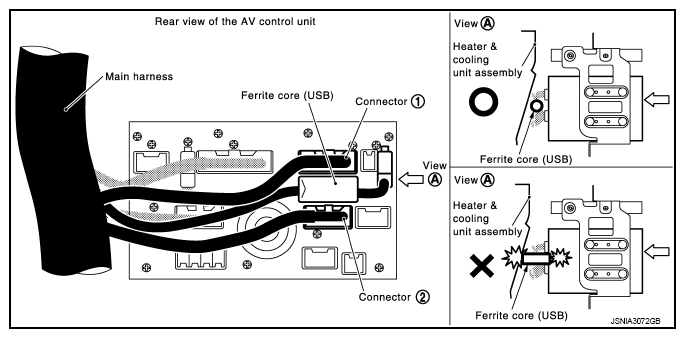

    Fig 1: Installing AV Control Unit Between Connector (1) And Connector (2) With Ferrite Core (USB) Orientated Sideways To Vehicle
    G07161585Courtesy of NISSAN MOTOR CO., U.S.A.
