CAN Communication Signal Chart

WARNING: This page is about a different car, the 2011 Infiniti G37. However, it is still accessible from the selected car via links, so may be relevant.

Refer to "HOW TO USE CAN COMMUNICATION SIGNAL CHART " for how to use CAN communication signal chart.

NOTE: Refer to "ABBREVIATION LIST " for the abbreviations of the connecting units.

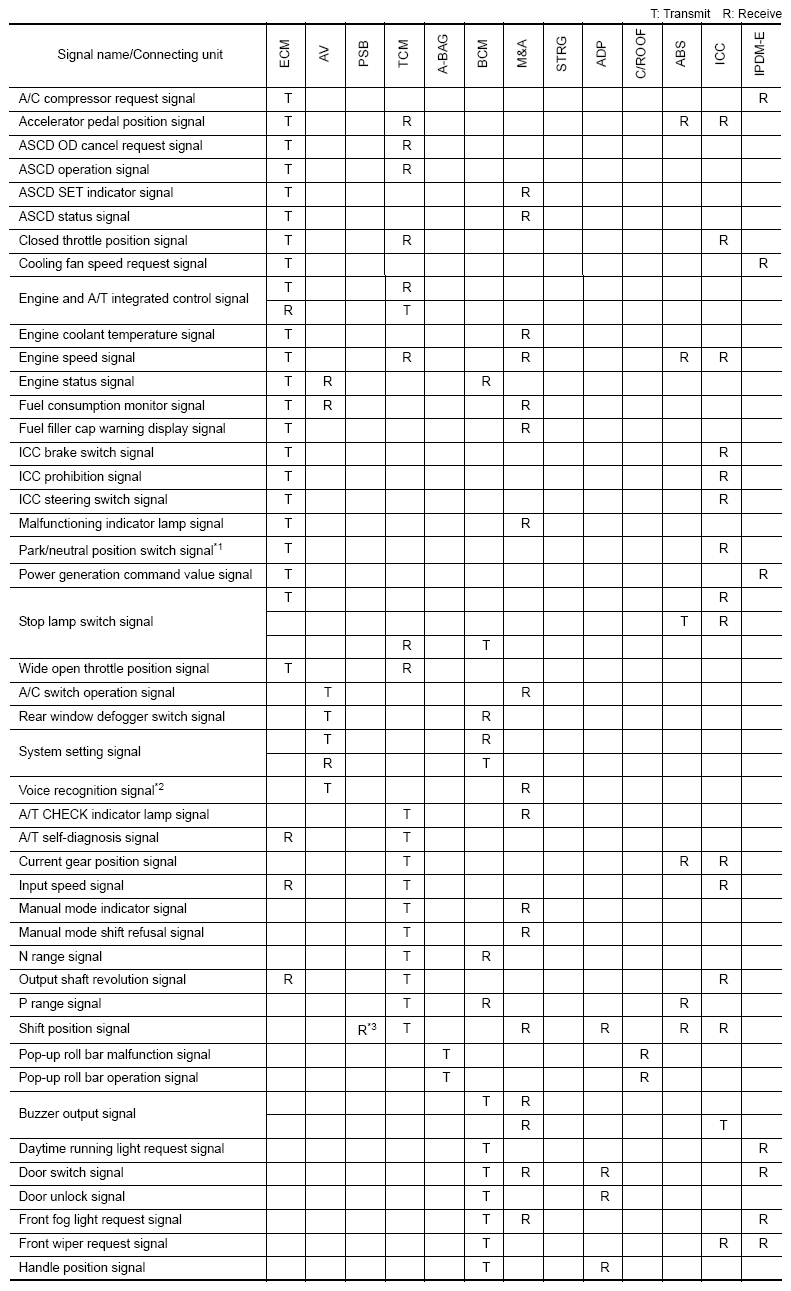

Fig 1: CAN Communication Signal Chart (1 Of 3)

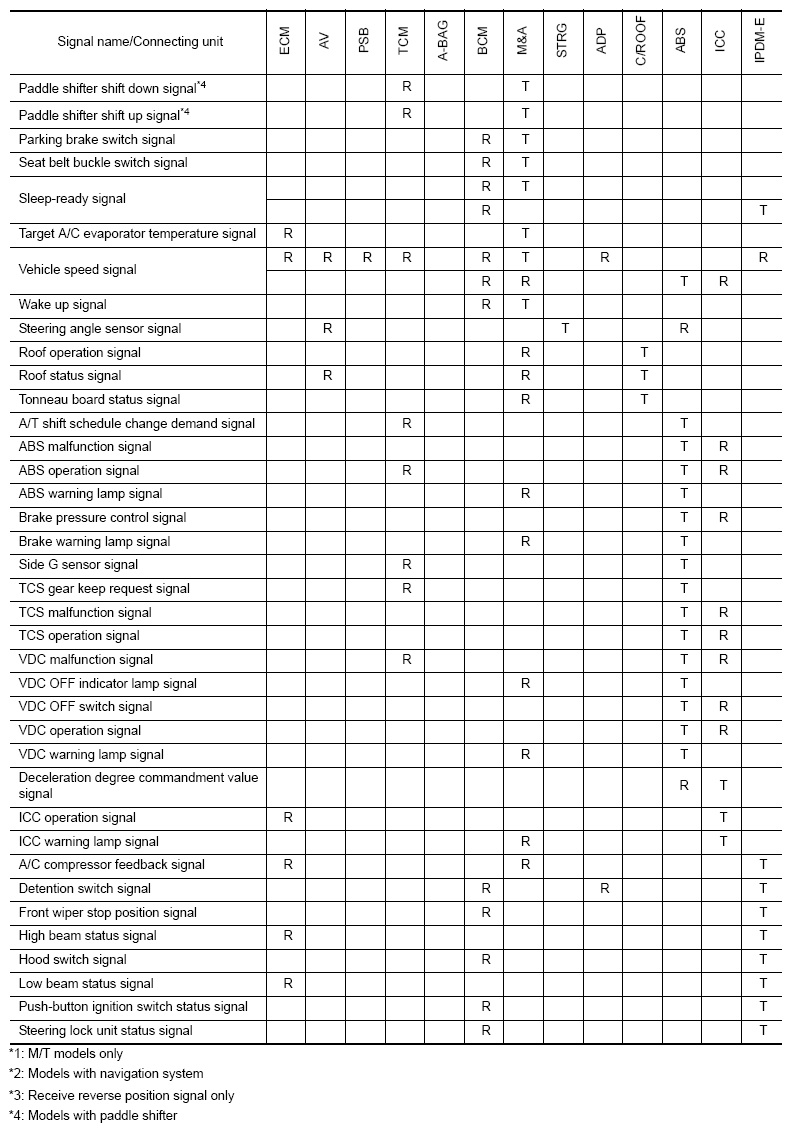

Fig 2: CAN Communication Signal Chart (2 Of 3)

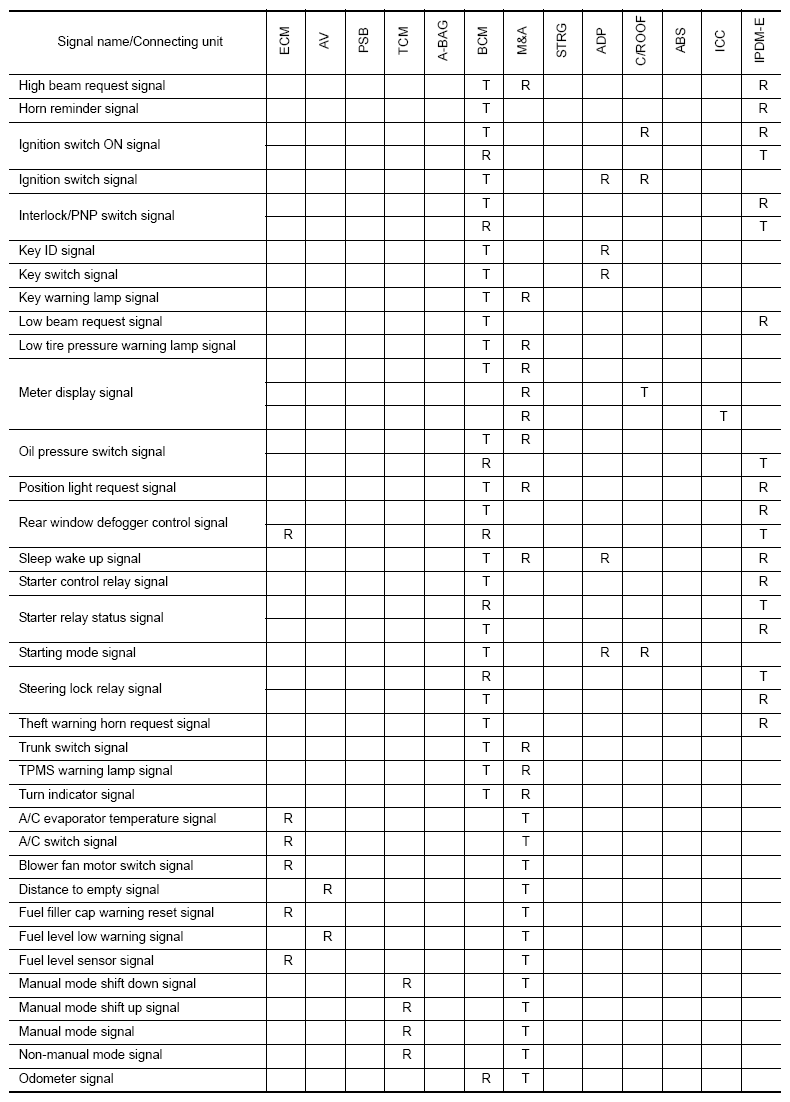

Fig 3: CAN Communication Signal Chart (3 Of 3)
