MEMORY FUNCTION : Component Parts Location

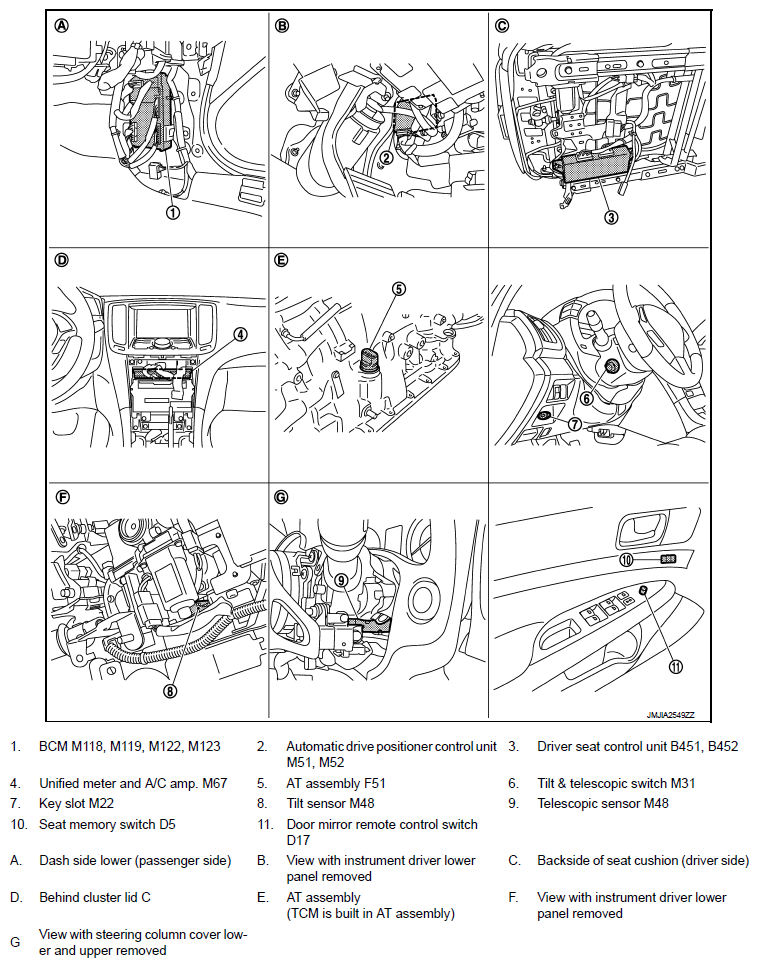

Fig 1: Identifying Memory Function Components Location (1 Of 3)
G07014283Courtesy of NISSAN MOTOR CO., U.S.A.

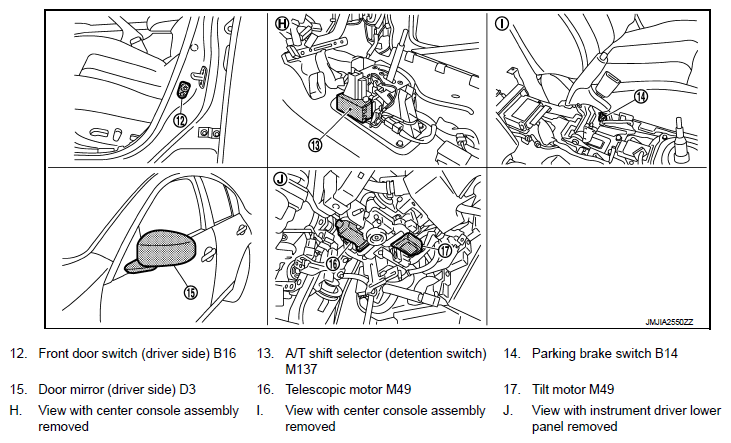

Fig 2: Identifying Memory Function Components Location (2 Of 3)
G07014284Courtesy of NISSAN MOTOR CO., U.S.A.

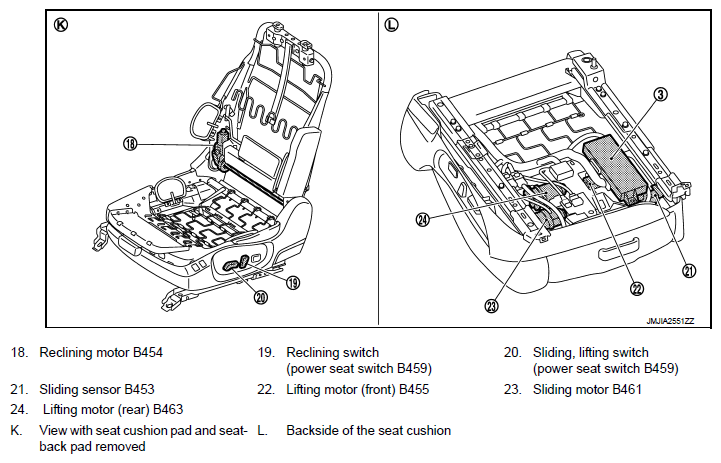

Fig 3: Identifying Memory Function Components Location (3 Of 3)
G07014285Courtesy of NISSAN MOTOR CO., U.S.A.
